Medium Voltage (CT)
PART
TYPE
Model No
Rating
Input
Output
Capacity
PDF
CAD
3D CAD
Winding type

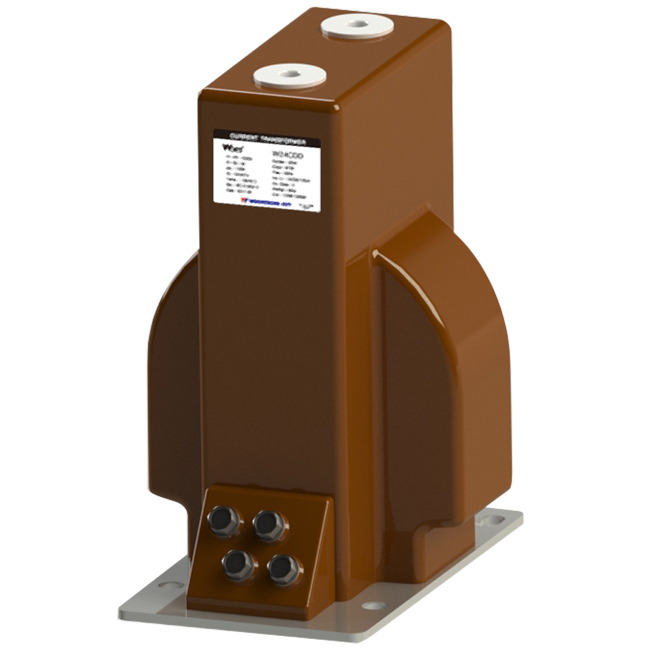

W07CWA
5A
or
1A
3.6~7.2kV,
5~600A
1.0,
15~40VA,
N＞10,
20
40In~8kA

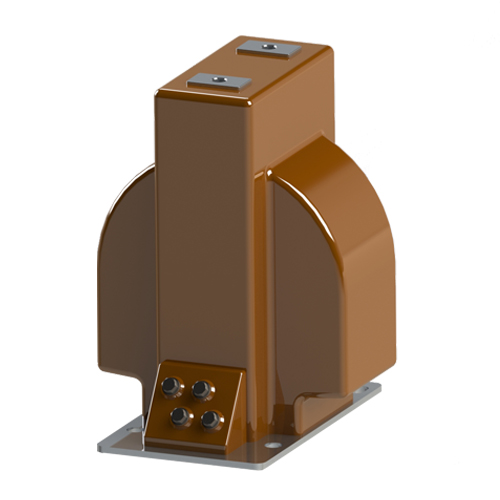

Winding type
W07CWB
5A
or
1A
3.6~7.2kV,
5~600A
1.0,
15~40VA,
N＞10,
20
40In~8kA

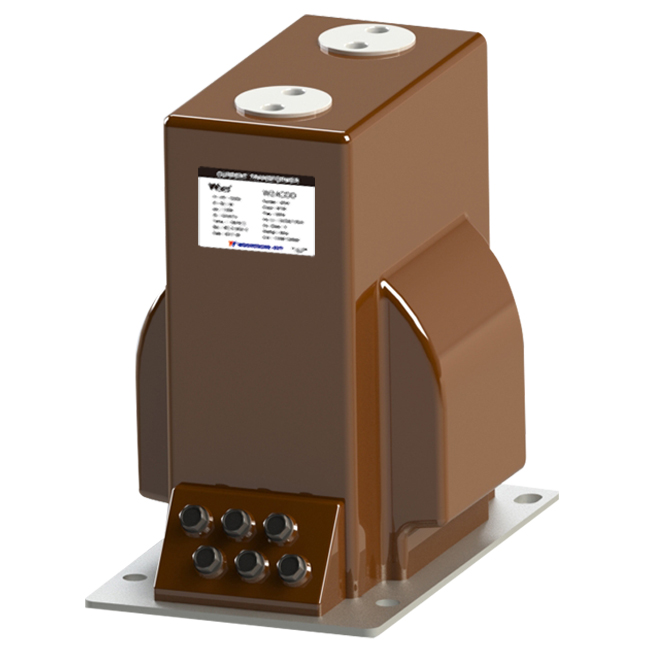

Winding type
W12CWA
5A
or
1A
3.6~12kV,
5~1500A
1.0,
15~40VA,
N＞10,
20
40In~12.5kA

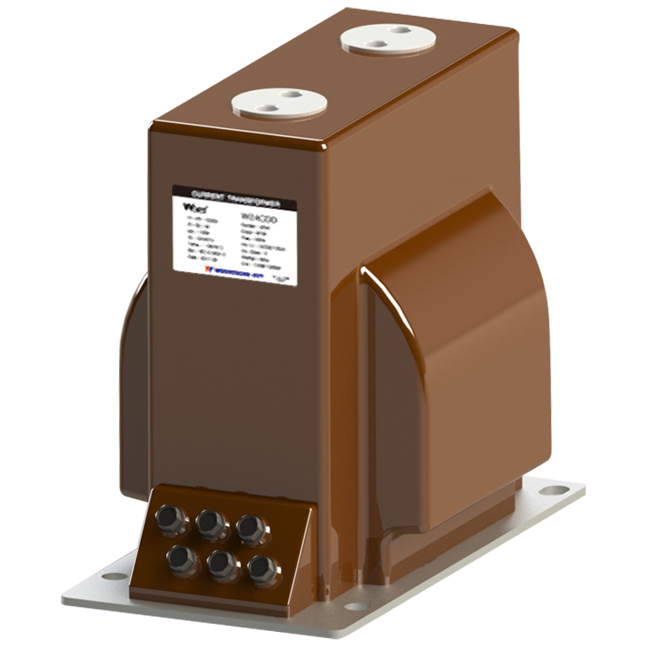

Winding type
W12CWB
5A
or
1A
3.6~12kV,
5~1500A
40In~40kA
Winding type

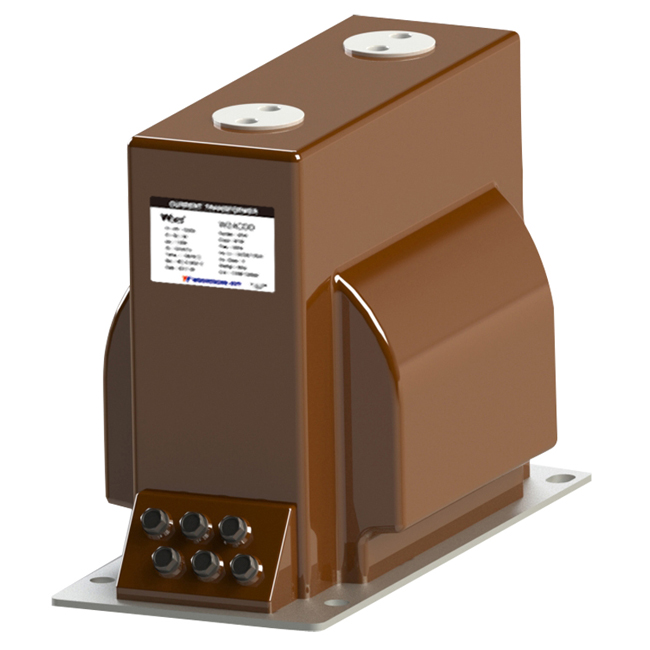

W12CWC
5A
or
1A
3.6~12kV,
5~1500A
40In~40kA
Winding type
W17CWA
5A
or
1A
12~24kV,
5~1500A
40In~40kA
Winding type
W24CWA
5A
or
1A
12~24kV,
5~1500A
40In~40kA

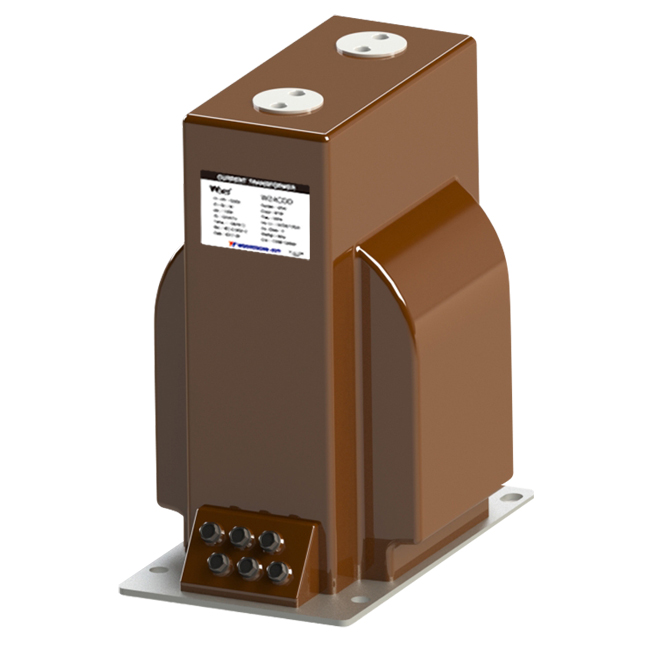

Winding type
W24CWB
5A
or
1A
12~24kV,
5~1500A
40In~40kA

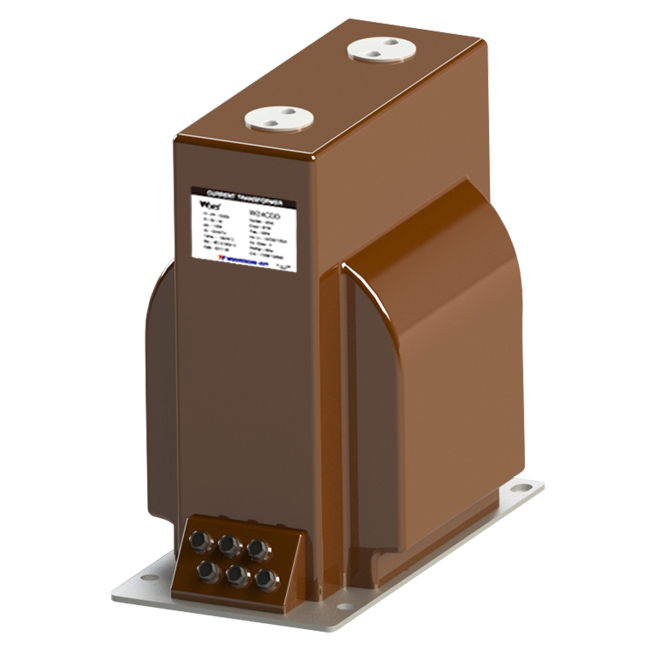

Winding type
W24CWC
5A
or
1A
12~24kV,
5~1500A
40In~40kA
Winding type

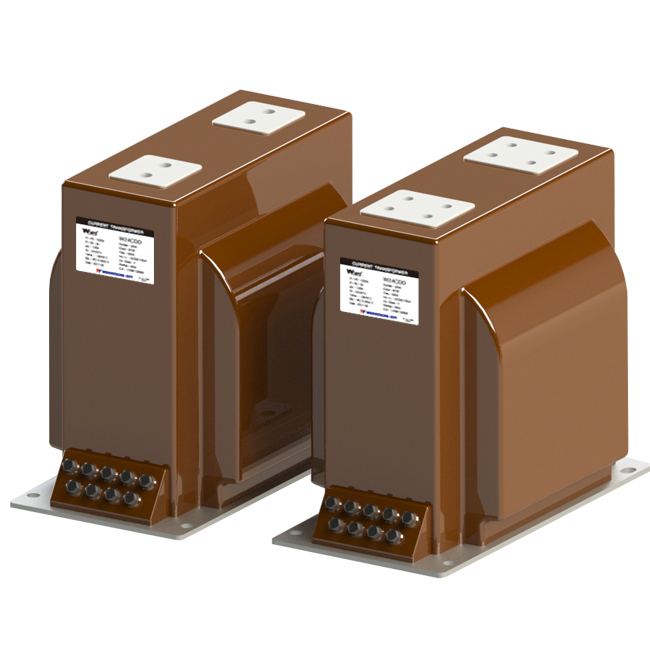

W24CWD
5A
or
1A
12~24kV,
5~3200A
40In~40kA

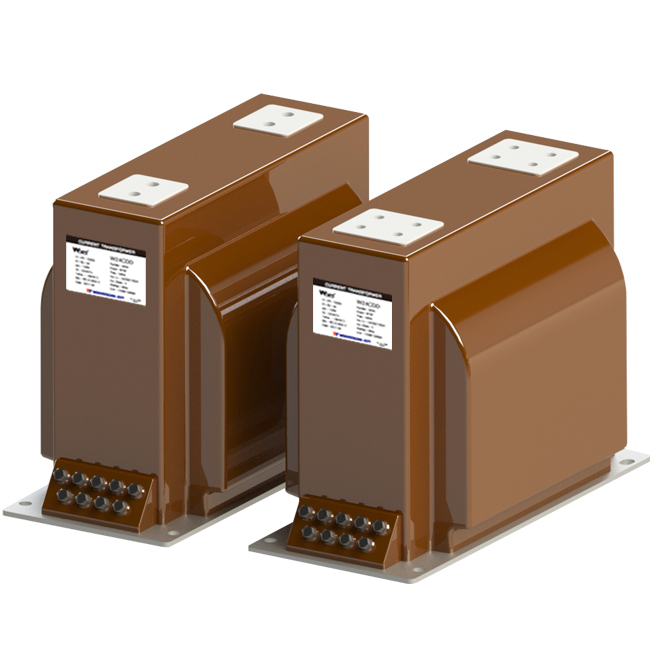

Winding type
W24CWE
5A
or
1A
12~24kV,
5~3200A
40In~40kA
Winding type

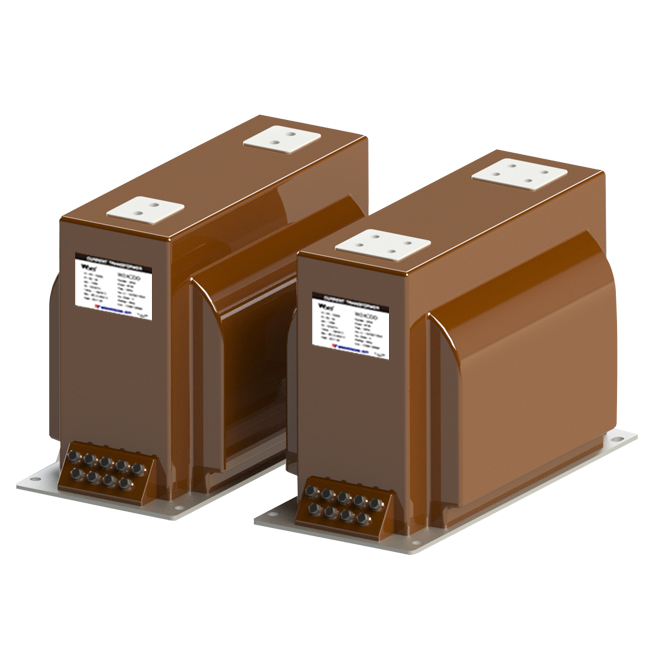

W24CWF
5A
or
1A
12~24kV,
5~3200A
40In~40kA
Winding type

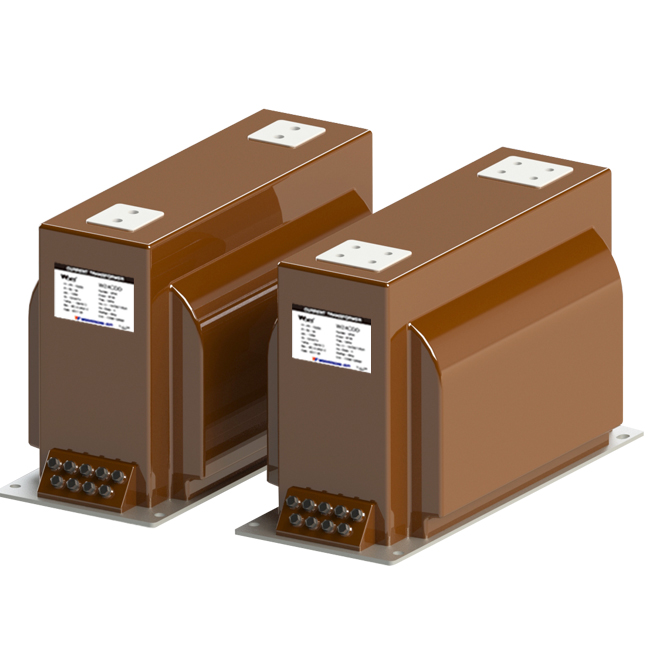

W24CWG
5A
or
1A
12~24kV,
5~3200A
40In~40kA

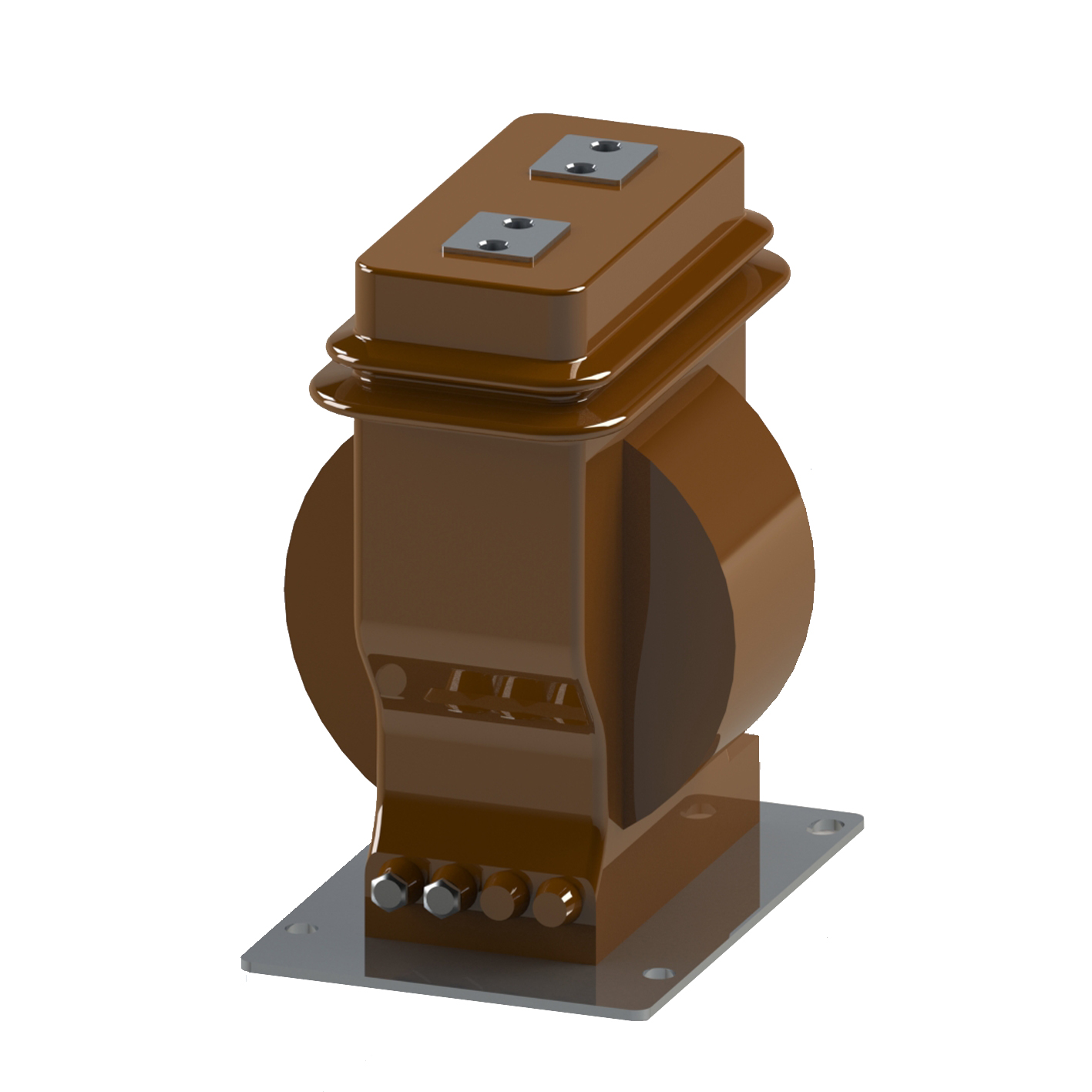

Winding type
W24CWS
5A
or
1A
12~24kV,
5~600A
40In~31.5kA
Winding type
W36CWA(R)
5A
or
1A
17.5~36kV,
10~3200A
Winding type (권선형)
W36CWD
W36CWD(R)
5A
or
1A
24~36kV,
10~3200A
75In~25kA
