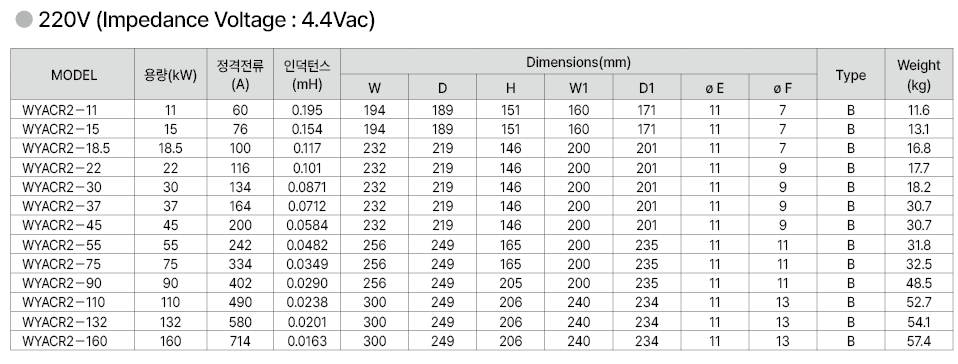

| Model No | WYACR2-11 WYACR2-15 WYACR2-18.5 WYACR2-22 WYACR2-30 WYACR2-37 WYACR2-45 WYACR2-55 WYACR2-75 WYACR2-90 WYACR2-110 WYACR2-132 WYACR2-160 |
|---|---|
| TYPE | Input Reactor |
| Certification | |
| Rating | 3Ø-220 |
| Input | 3Ø-220 |
| Output | 76A~1600A |
| Capacity | 15kVA~350kVA |
•Rating : 3Ø 220V / 50/60 Hz
•Dielectric withstand : AC 3000V / 1min
•Insulation resistance : DC 500V / 100MΩ
•IP Class : IP20
•Sound level : Less than 65db
•Operating temp. : -20℃ ~ +40℃
