>Product>Solid State Relay

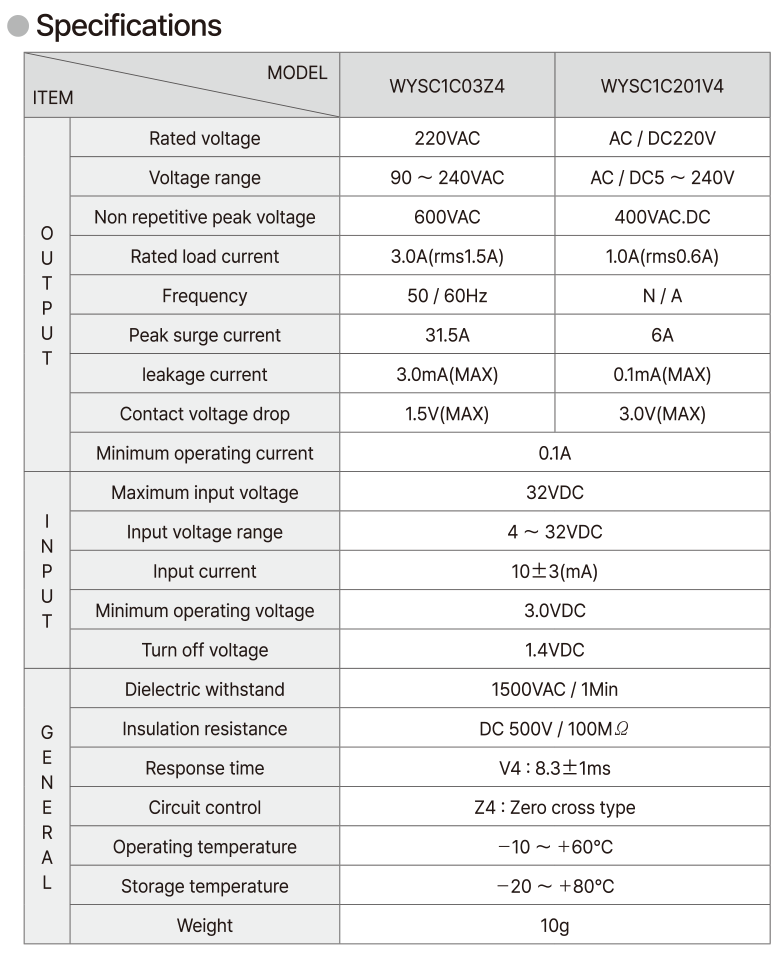

| Model No | WYSC1C03Z4 WYSC1C201V4 |
|---|---|
| TYPE | WYSC PCB & Socket type |
| Certification | |
| Rating | 220VAC AC/DC220V |
| Input | 4VDC~32VDC |
| Output | 220VAC AC/DC220V |
| Capacity | 3.0A 1.0A |
This product is structured in a way that it can be directly designed on PCB
or modularized using sockets. This small SSR is with LED power lamp for output power indicating.

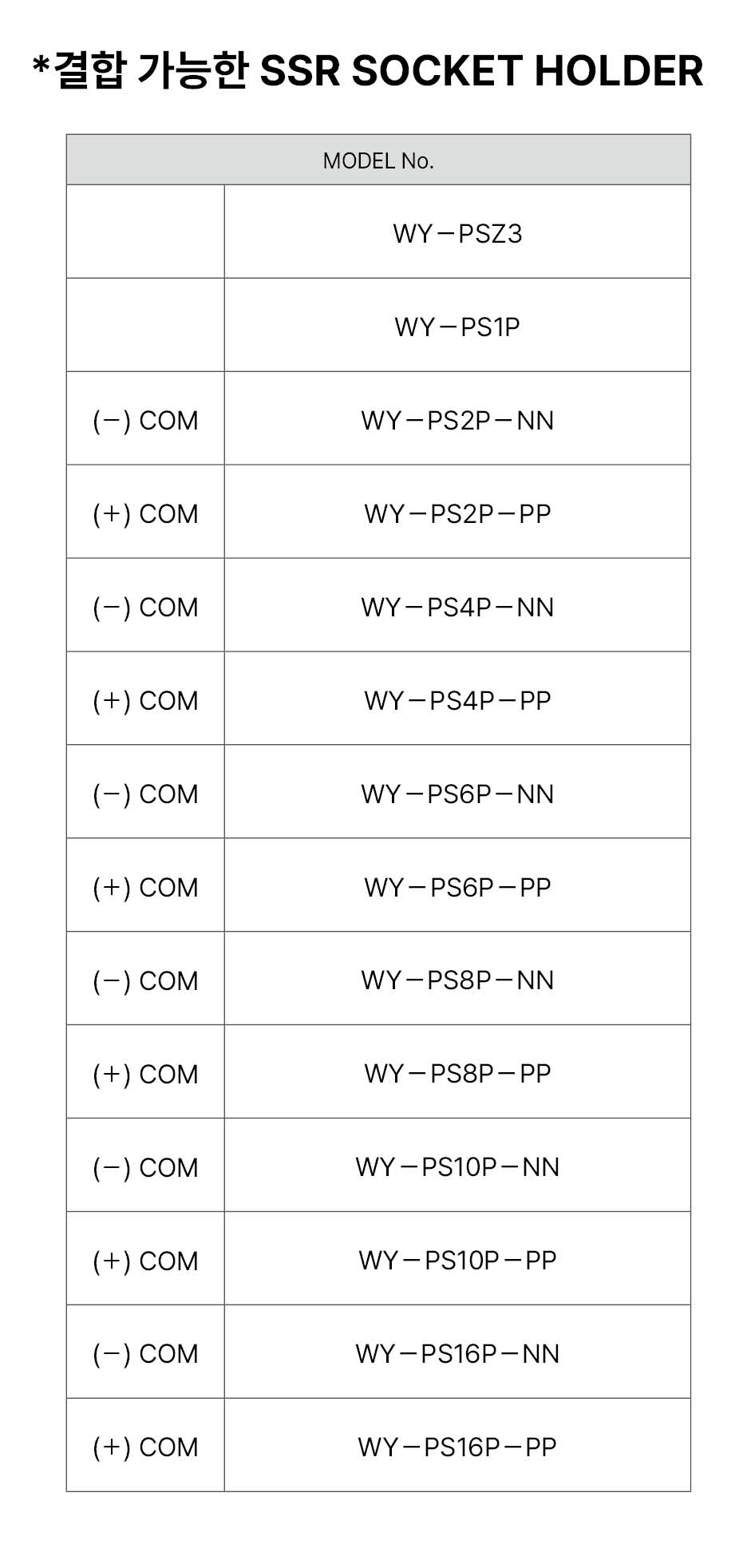

*상기 오른쪽에 해당하는 제품이미지는 SSR과 소켓이 결합된 이미지입니다.
