>Product>Solid State Relay
| Model No | WYT3G3C10Z4 WYT3G3C20Z4 WYT3G3C30Z4 WYT3G3C40Z4 WYT3G3C50Z4 WYT3G3C60Z4 WYT3G3C80Z4 |
|---|---|
| TYPE | 3Phase type |
| Certification | UL, cUL |
| Rating | 220VAC |
| Input | 12VDC~24VDC |
| Output | 220VAC |
| Capacity | 10A 20A 30A 40A 50A 60A 80A |

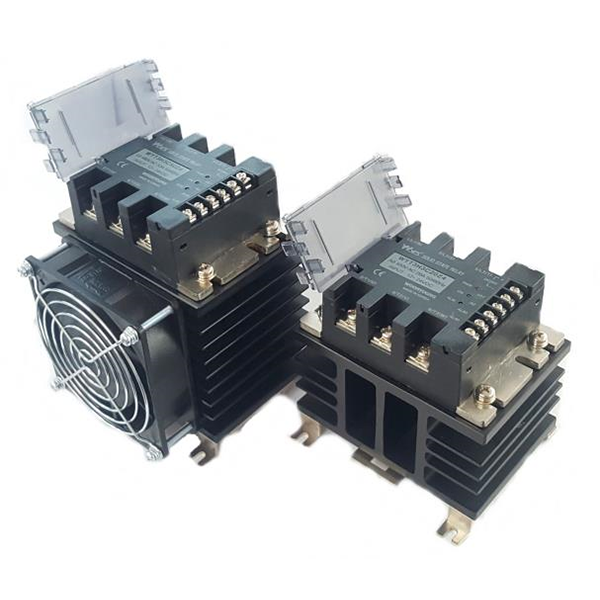

As a SSR to break 2 or 3 poles, this product is internally equipped with a breaking functional circuit to control the 1st alarm(60℃)
and the 2nd alarm and breaking(80℃) against overheating due to overloads, and can be mounted on a DIN rail or a general panel,
being a S-mark certified product
• cUL Std. No : . UL508 •UL Cer. No : E142643
