SMPS

(10~500W DC Input)

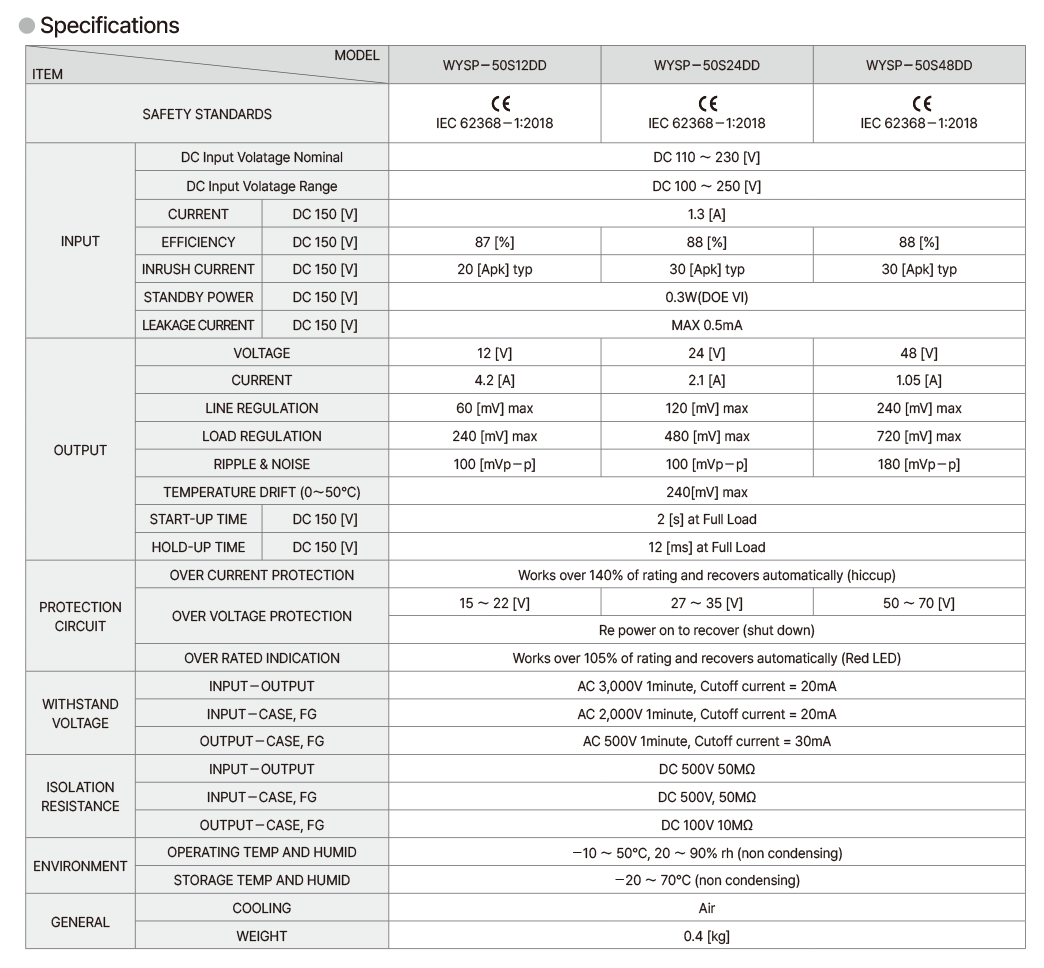

Model No	WYSP-50S12DD WYSP-50S24DD WYSP-50S48DD
TYPE	DIN-Rail type 1-Channel
Certification
Rating
Input	110VDC~230VDC
Output	12V 24V 48V
Capacity	50W

Support services

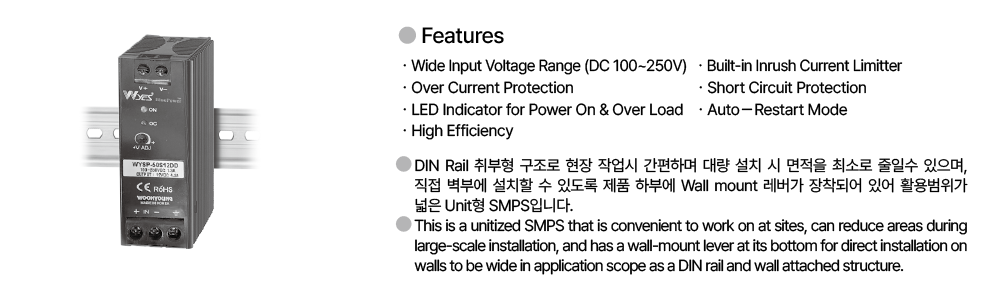

Specifications and Features

This is a unitized SMPS that is convenient to work on at sites,

can reduce areas during large-scale installation, and has a wall-mount lever at its bottom for direct installation

on walls to be wide in application scope as a DIN rail and wall attached structure.

ㆍWide Input Voltage Range (DC 100~250V)

ㆍBuilt-in Inrush Current Limitter
ㆍOver Current Protection

ㆍShort Circuit Protection
ㆍLED Indicator for Power On & Over Load

ㆍAuto－Restart Mode
ㆍHigh Efficiency
