SMPS

(10~500W DC Input)

Model No	WYSP-300S12DD WYSP-300S24DD WYSP-300S48DD
TYPE	DIN-Rail type 1-Channel
Certification
Rating
Input	110VDC~230VDC
Output	12V 24V 48V
Capacity	300W

Support services

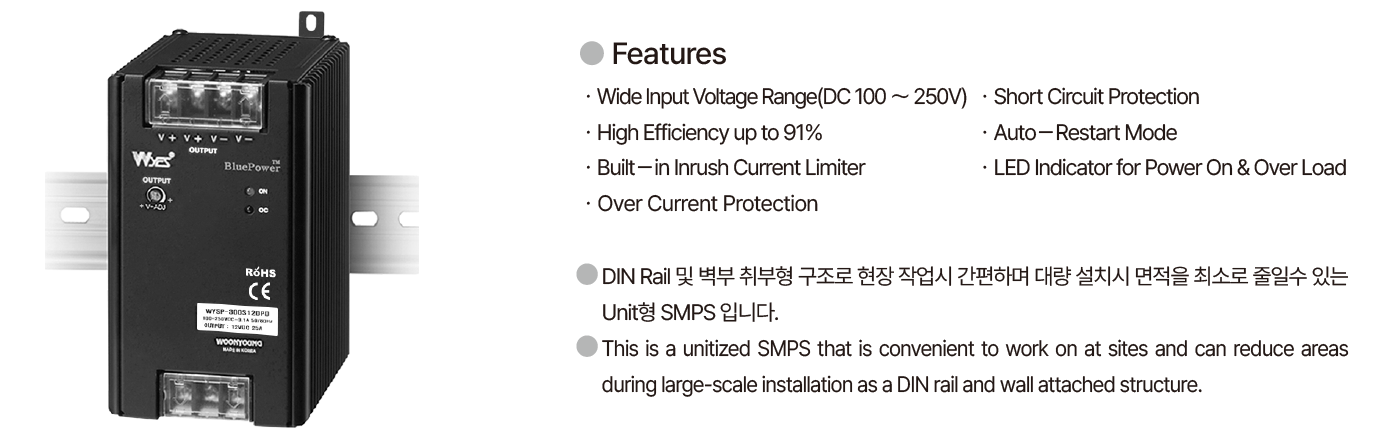

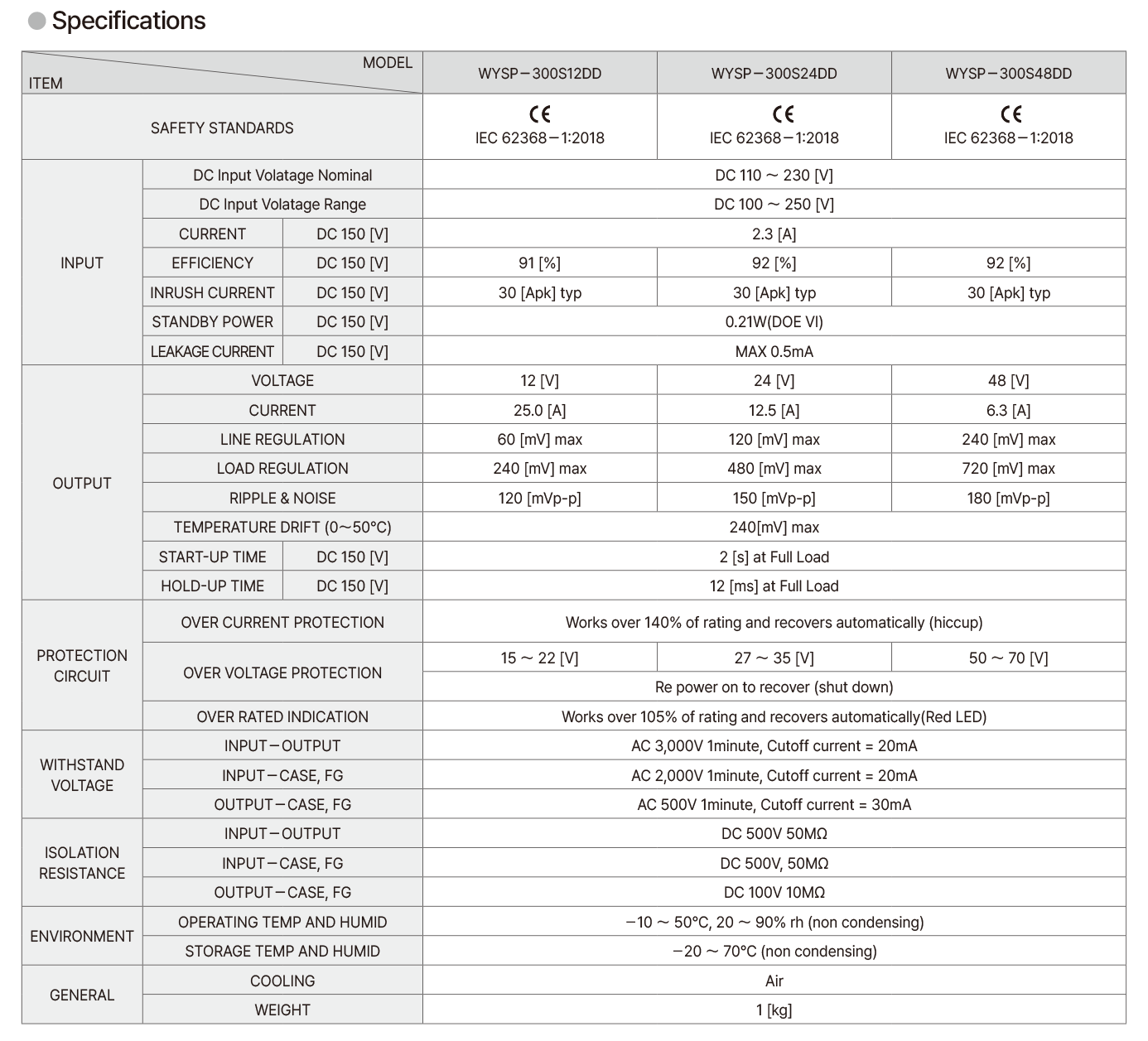

Specifications and Features

This is a unitized SMPS that is convenient to work on at sites and

can reduce areas during large-scale installation as a DIN rail and wall attached structure.

ㆍWide Input Voltage Range(DC 100 ～ 250V)

ㆍShort Circuit Protection
ㆍHigh Efficiency up to 91%
ㆍAuto－Restart Mode

ㆍBuilt-in Inrush Current Limiter
ㆍLED Indicator for Power On & Over Load

ㆍOver Current Protection
