SMPS-Power Supply

(3channel)

Model No	WYSP-50T12A WYSP-50T15A WYSP-50T12B WYSP-50T15B
TYPE	Terminal type 3-Channel
Certification
Rating
Input	110VAC 220VAC
Output	5VDC 12VDC 15VDC
Capacity	50W

Support services

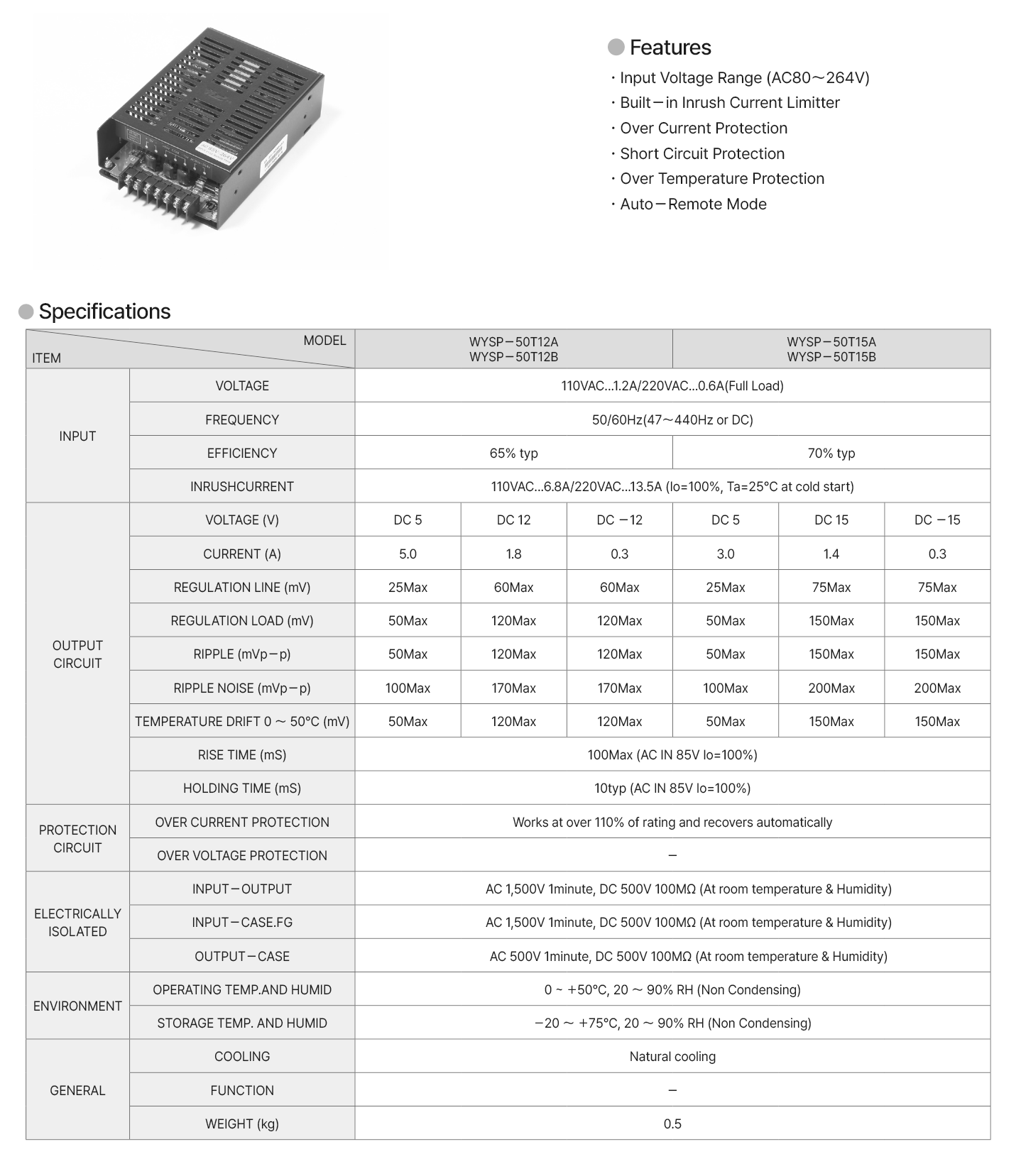

Specifications and Features

50W 3-Channel
ㆍWide Input Voltage Range (AC80~264V)
ㆍBuilt-in Inrush Current Limitter
ㆍOver Current Protection
ㆍShort Circuit Protection
ㆍOver Temperature Protection
ㆍAuto-Remote Mode
