Low Voltage Reactor
Low, High Volt. Motor Starting Reactor
확대

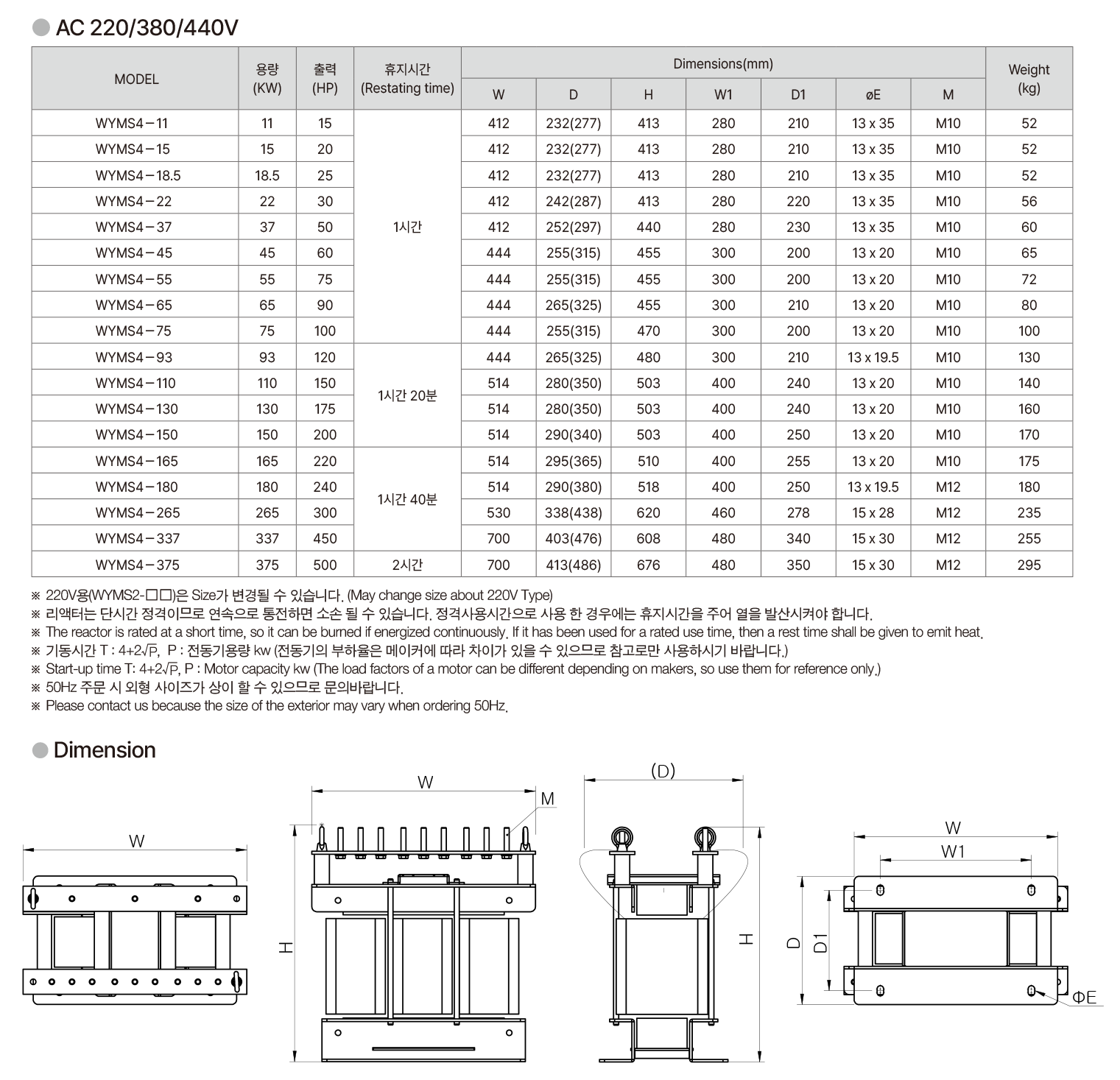

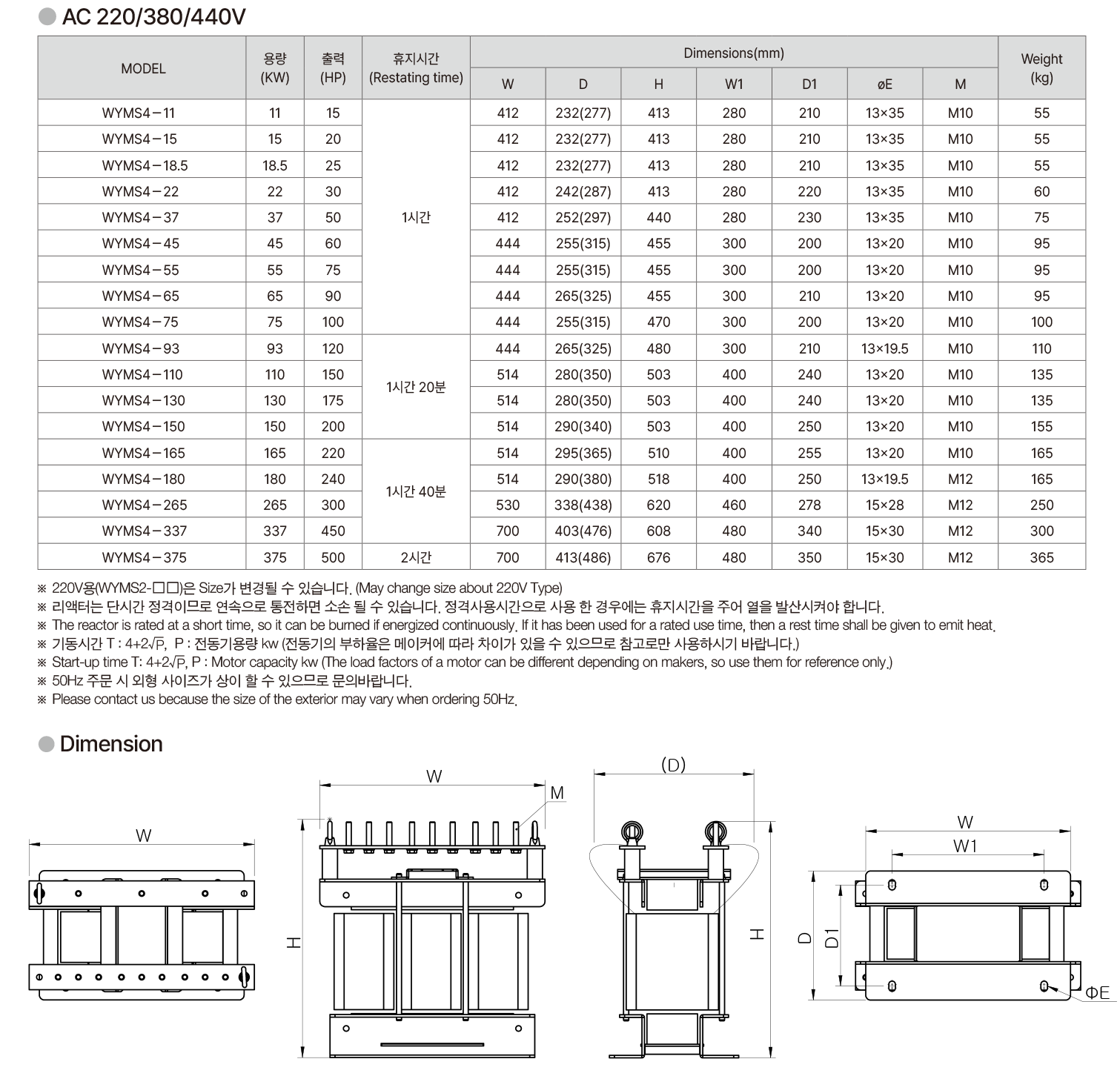

Model No WYMS4-11 WYMS4-15 WYMS4-18.5 WYMS4-22 WYMS4-37 WYMS4-45 WYMS4-55 WYMS4-65 WYMS4-75 WYMS4-93 WYMS4-110 WYMS4-130 WYMS4-150 WYMS4-165 WYMS4-180 WYMS4-265 WYMS4-337 WYMS4-375
TYPE 3Phase Motor starting reactor (220~440V)
Certification
Rating 3Ø-220 3Ø-380 3Ø-440
Input 3Ø-220 3Ø-380 3Ø-440
Output 30HP~500HP
Capacity 11kVA~375kVA
Support services
Specifications and Features

•Rating : 3Ø 220/380/440V / 60Hz(Option: 50Hz)
•Dielectric withstand : AC 3000V / 1min
•Insulation resistance : DC 500V / 100MΩ
•IP Class : IP20
•Sound level : Less than 65db
•Molding type
•Operating temp. : -20℃ ~ +40℃
