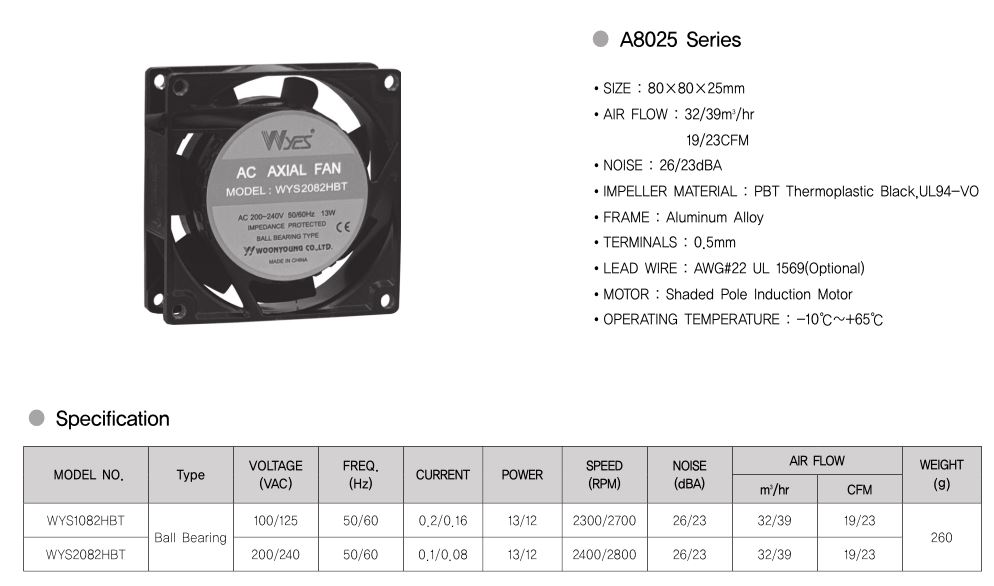

Model No	WYS1082HBT WYS2082HBT
TYPE	80×80×25mm (Ball Bearing type)
인증서(Certification)
정격(Rating)	100/125V 200/240V
입력(Input)	100/125V 200/240V
출력(Output)	-
용량(Capacity)	0.07~0.13A

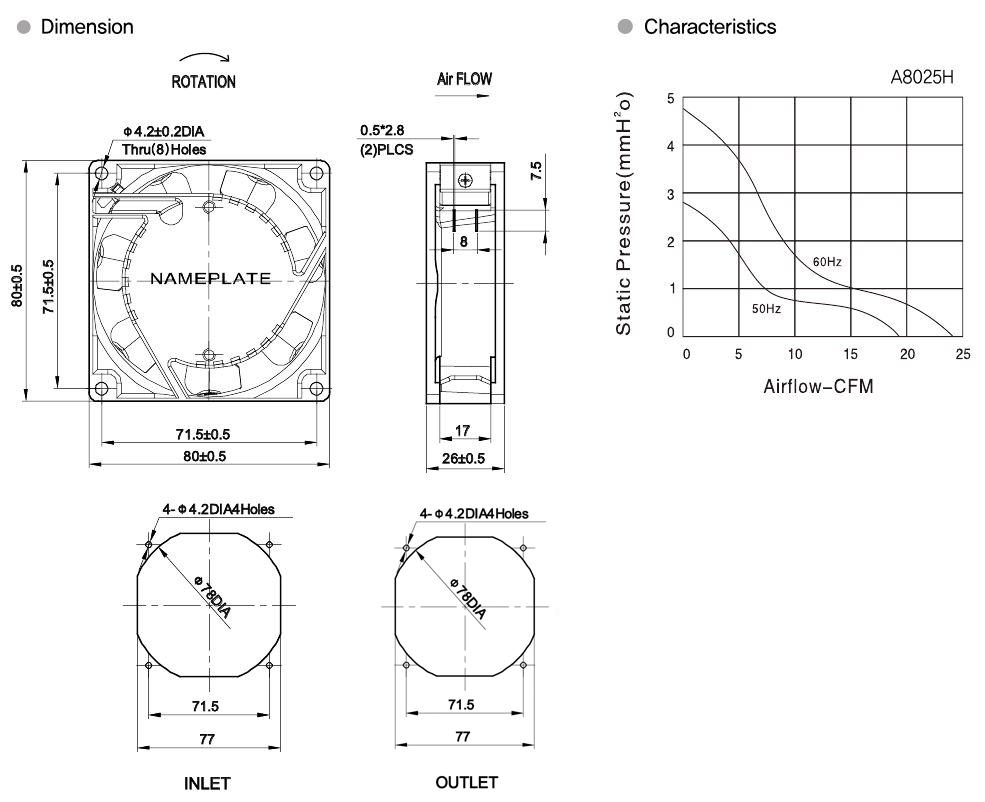

• CAD 도면
• 프린트 하기

• SIZE : 80×80×25mm
• AIR FLOW : 32/39m 3 /hr
                            19/23CFM
• NOISE : 26/23dBA
• IMPELLER MATERIAL : PBT Thermoplastic Black,UL94-VO
•FRAME : Aluminum Alloy
•TERMINALS : 0.5mm
•LEAD WIRE : AWG#22 UL 1569(Optional)
•MOTOR : Shaded Pole Induction Motor
•OPERATING TEMPERATURE : -10℃~+65℃
