팬-Fan
AC FAN
-
-
Model No WYA1V15C55TBT WYA2V15C55TBT WYA2V15C55TBL TYPE 172×150×55mm (Ball Bearing type) 인증서(Certification) 정격(Rating) 100/125V 200/240V 200/240V 입력(Input) 100/125V 200/240V 200/240V 출력(Output) 용량(Capacity) 0.3A
지원 서비스
CAD 도면
3D CAD 도면
프린트 하기사양 및 특징

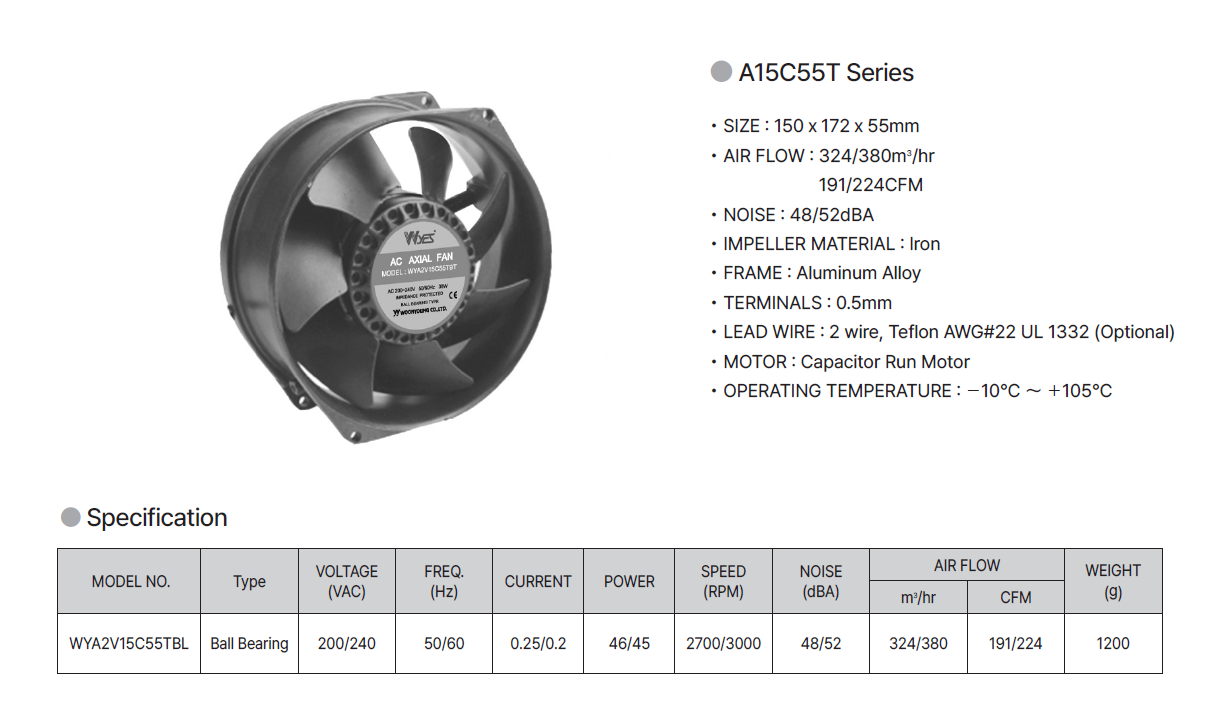

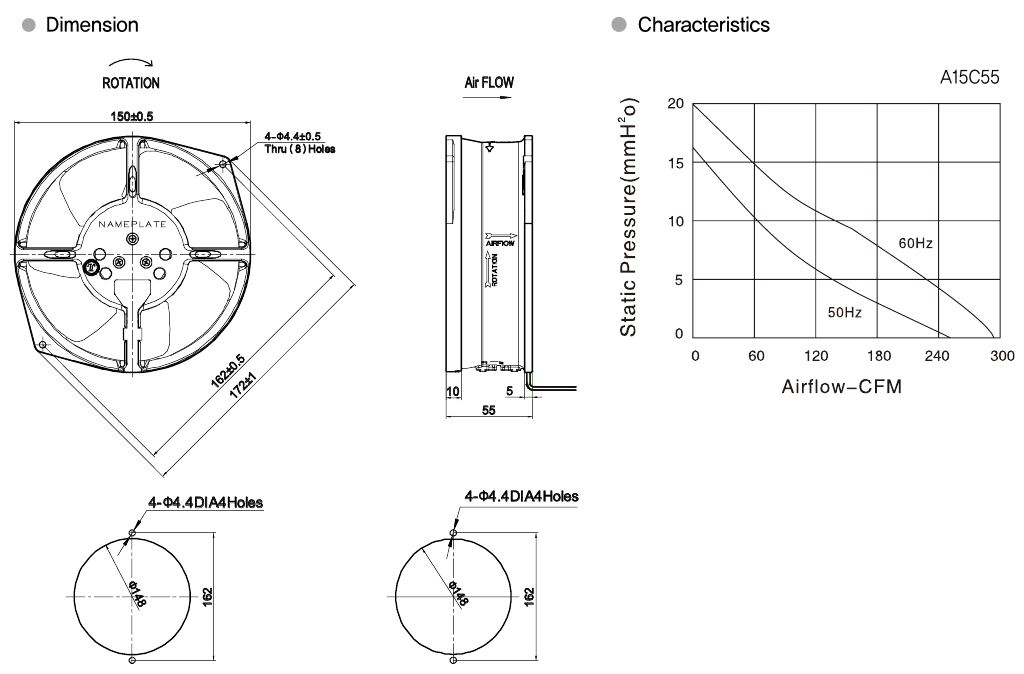

• SIZE : 150×172×55mm
• AIR FLOW : 324/380m 3 /hr
191/224CFM
• NOISE : 48/52dBA
• IMPELLER MATERIAL : Iron
• FRAME : Aluminum Alloy
• TERMINALS : 0.5mm
• LEAD WIRE : 2 wire, Teflon AWG#22 UL 1332 (Optional)
• MOTOR : Capacitor Run Motor
• OPERATING TEMPERATURE : -10℃~+105℃
