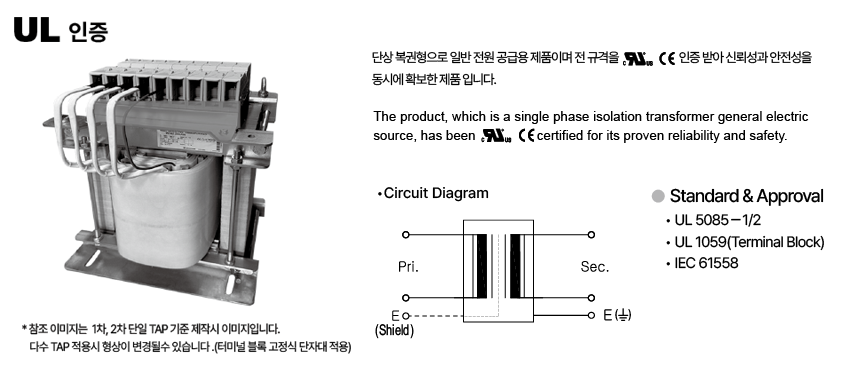

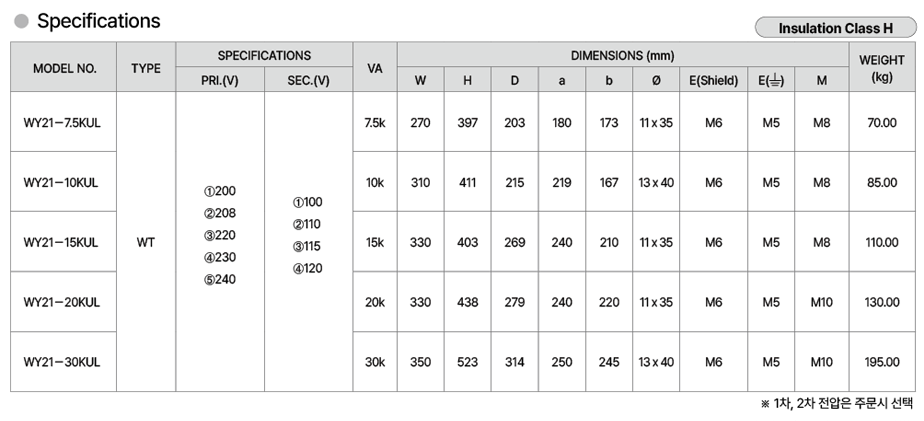

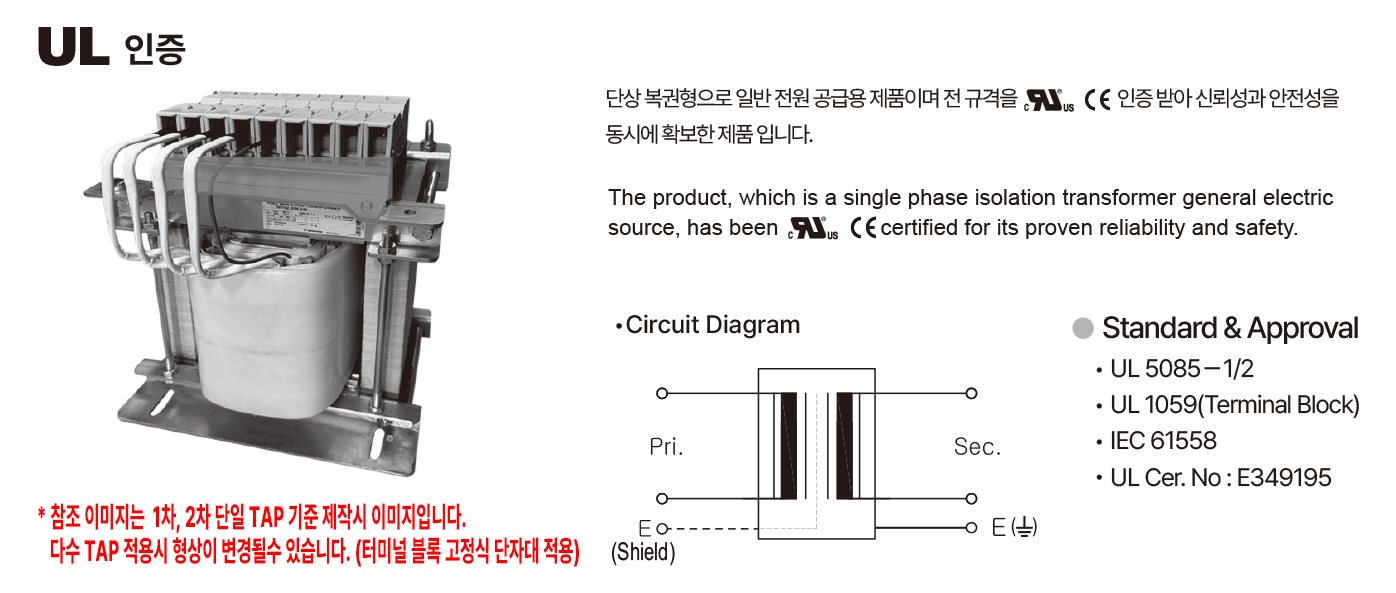

Model No WY21-7.5KUL WY21-10KUL WY21-15KUL WY21-20KUL WY21-30KUL TYPE 단상, UL인증 트랜스포머 Certification UL Rating Input 200VAC 208VAC 220VAC 230VAC 240VAC Output 100VAC 110VAC 115VAC 120VAC Capacity 7.5kVA~30kVA
Support servicesSpecifications and Features
전압 선택 적용 예 :
PRI.(V) - 208V / SEC.(V) - 110V
PRI.(V) - 208V / SEC.(V) - 120V
PRI.(V) - 220V / SEC.(V) - 100V
PRI.(V) - 220V / SEC.(V) - 115V

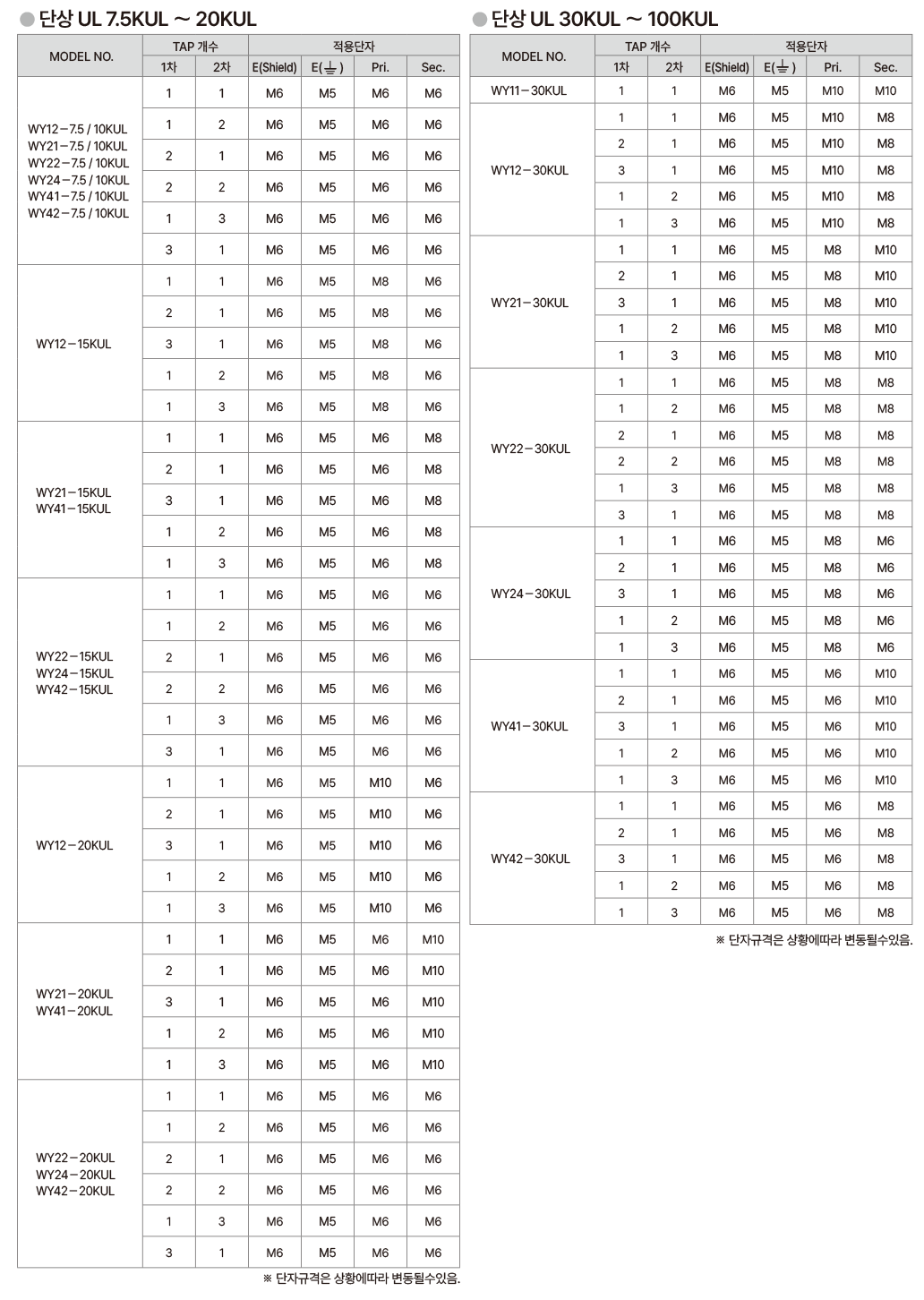

※ 단자 규격은 상황에 따라 변동될 수 있음.
※ Specifications may change depending on circumstances.
