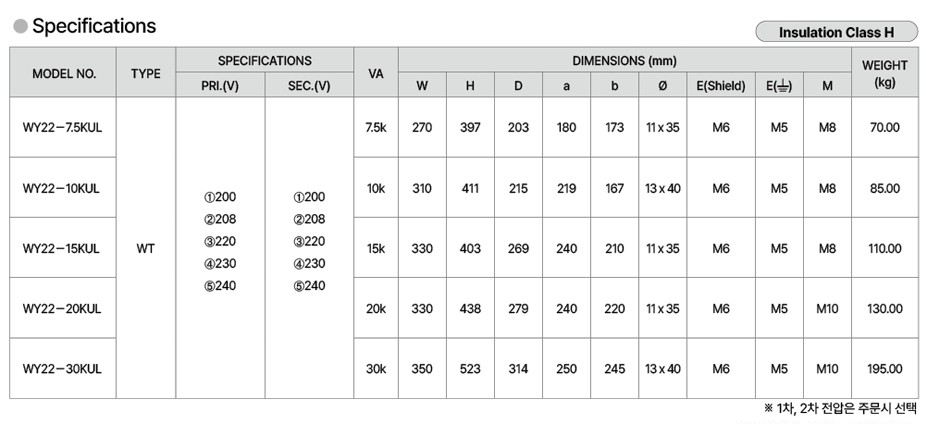

Model No WY22-7.5KUL WY22-10KUL WY22-15KUL WY22-20KUL WY22-30KUL TYPE 단상, UL인증 트랜스포머 Certification UL Rating Input 200VAC 208VAC 220VAC 230VAC 240VAC Output 200VAC 208VAC 220VAC 230VAC 240VAC Capacity 7.5kVA~30kVA
Support servicesSpecifications and Features
전압 선택 적용 예 :
PRI.(V) - 208V / SEC.(V) - 200V
PRI.(V) - 208V / SEC.(V) - 220V
PRI.(V) - 220V / SEC.(V) - 208V
PRI.(V) - 220V / SEC.(V) - 240V
※ 단자규격은 상황에따라 변동될수있음.
※ Specifications may change depending on circumstances.
