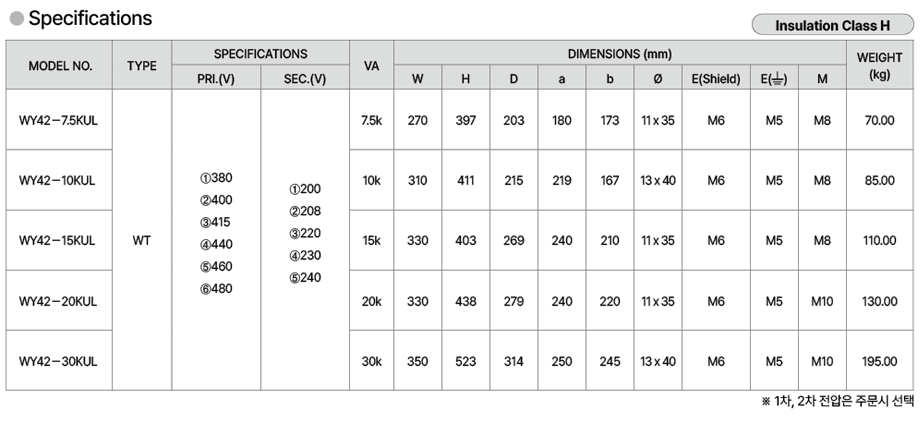

Model No WY42-7.5KUL WY42-10KUL WY42-15KUL WY42-20KUL WY42-30KUL TYPE 단상, UL인증 트랜스포머 Certification UL Rating Input 380VAC 400VAC 415VAC 440VAC 460VAC 480VAC Output 200VAC 208VAC 220VAC 230VAC 240VAC Capacity 7.5kVA~30kVA
Support servicesSpecifications and Features
전압 선택 적용 예 :
PRI.(V) - 380V / SEC.(V) - 208V
PRI.(V) - 380V / SEC.(V) - 220V
PRI.(V) - 440V / SEC.(V) - 200V
PRI.(V) - 440V / SEC.(V) - 230V

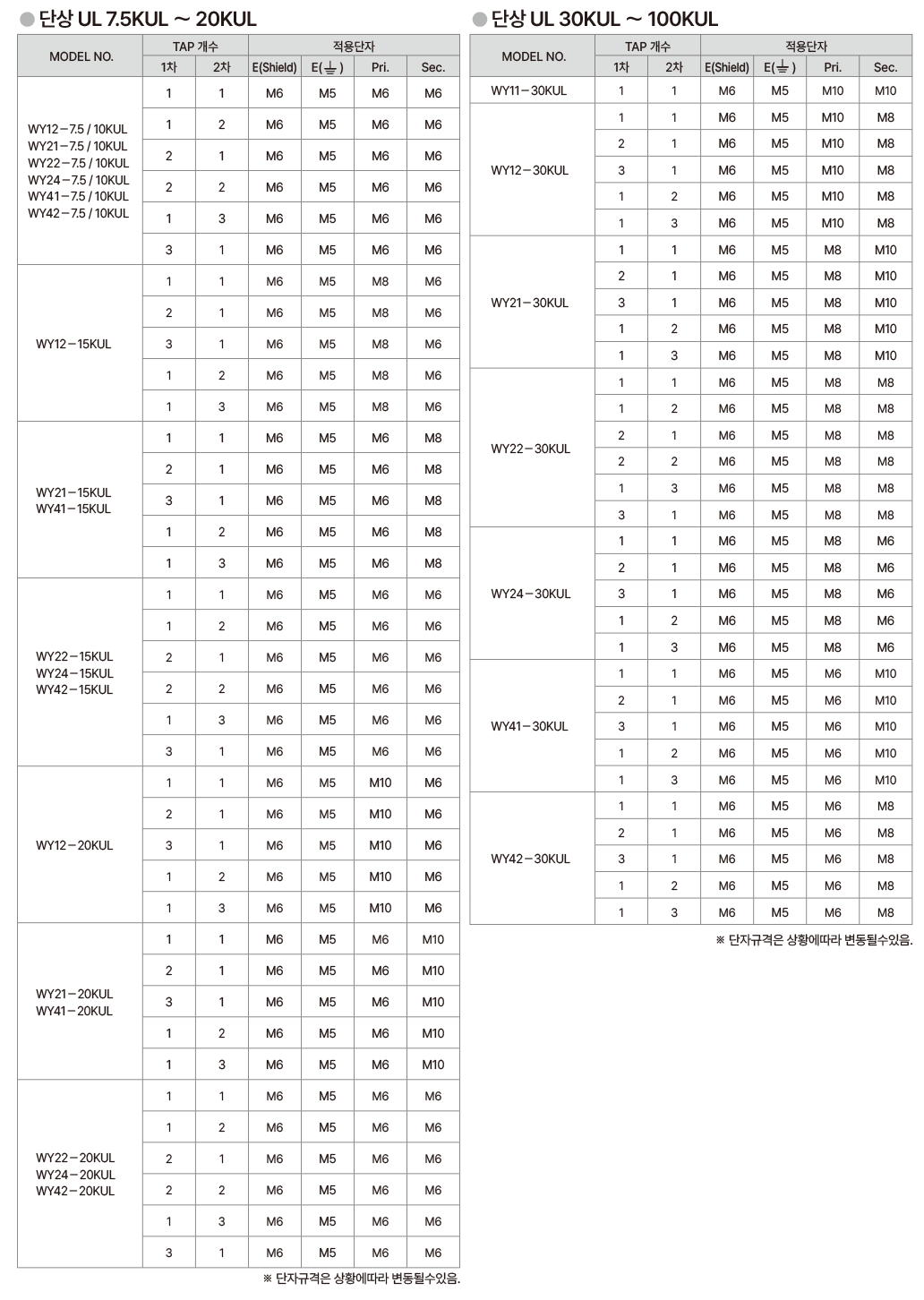

※ 단자규격은 상황에따라 변동될수있음.
※ Specifications may change depending on circumstances.
