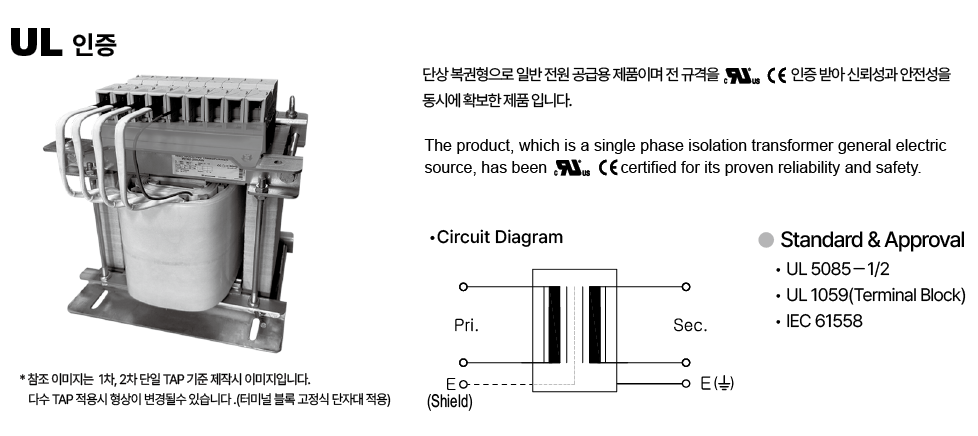

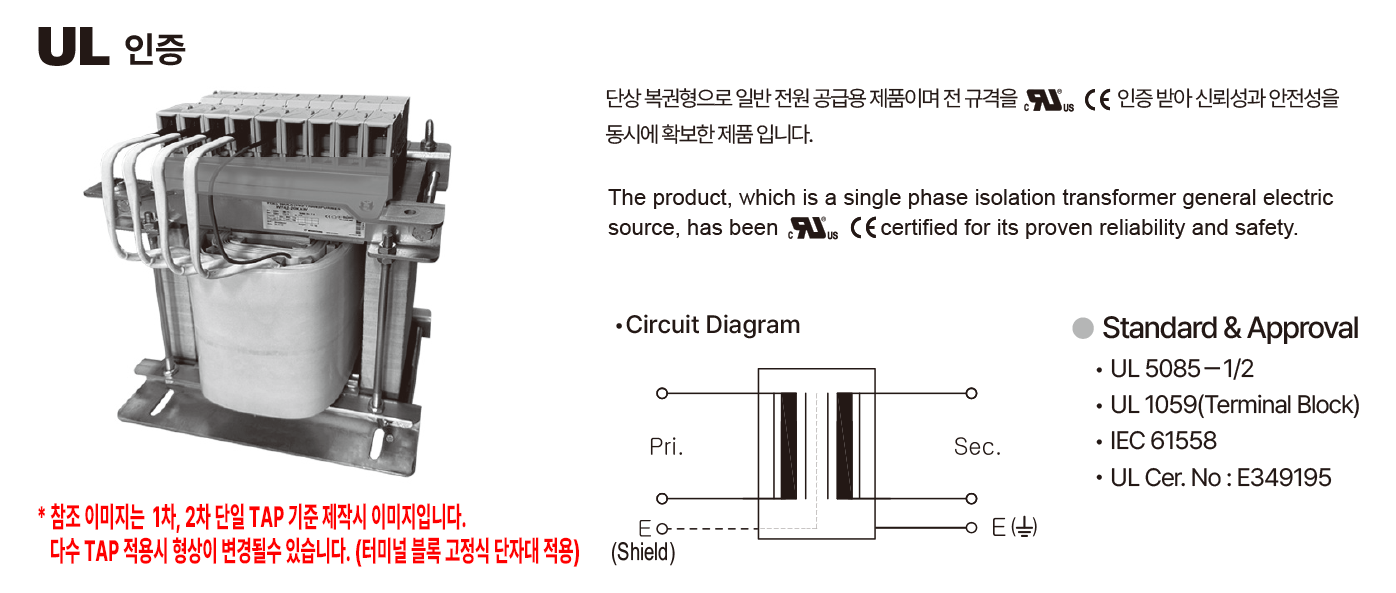

Model No WY24-7.5KUL WY24-10KUL WY24-15KUL WY24-20KUL WY24-30KUL TYPE 1Phase UL Type Transformer Certification UL Rating Input 200VAC 208VAC 220VAC 230VAC 240VAC Output 380VAC 400VAC 415VAC 440VAC 460VAC Capacity 7.5kVA~30kVA

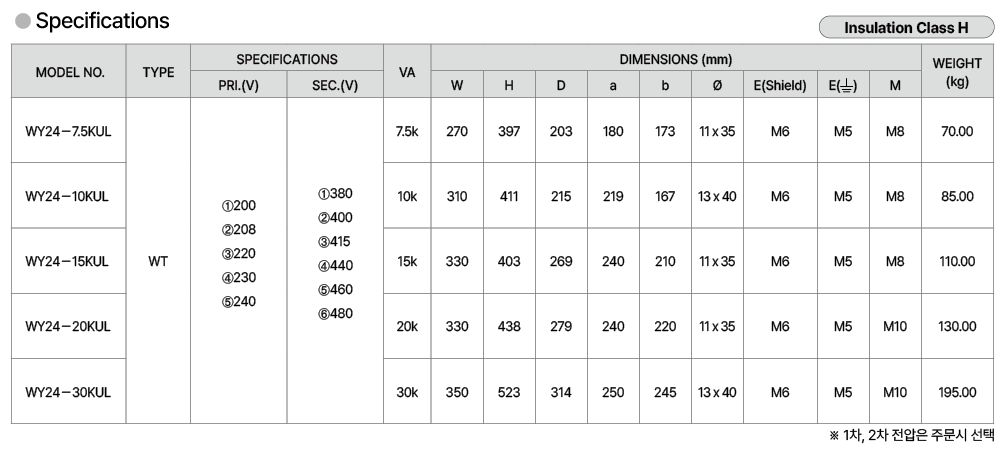

Support servicesSpecifications and Features
※ 단자 규격은 상황에 따라 변동될 수 있음.
※ Specifications may change depending on circumstances.
