Model No WY3P22D-20KUL WY3P22D-30KUL WY3P22D-40KUL WY3P22D-50KUL WY3P22D-60KUL WY3P22D-75KUL WY3P22D-100KUL TYPE 3Phase UL Type Transformer Certification UL Rating Input 200VAC 208VAC 220VAC Output 200VAC 208VAC 220VAC 230VAC 240VAC Capacity 20kVA~100kVA

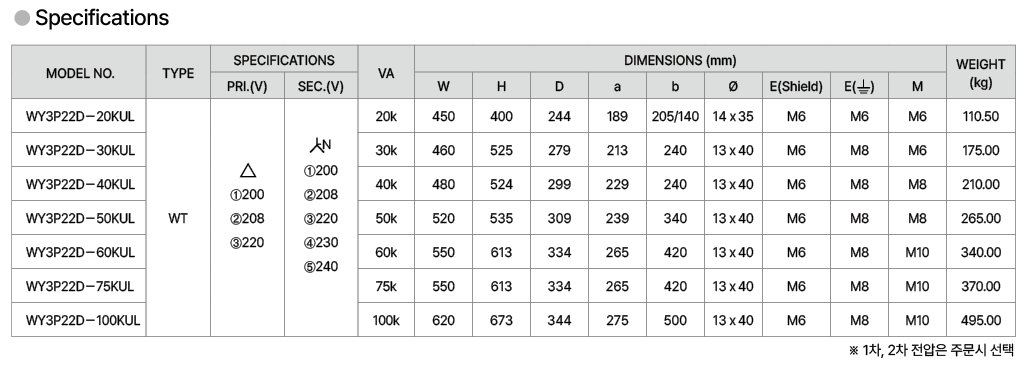

Support servicesSpecifications and Features
※ 단자규격은 상황에따라 변동될수있음.
※ Specifications may change depending on circumstances.
