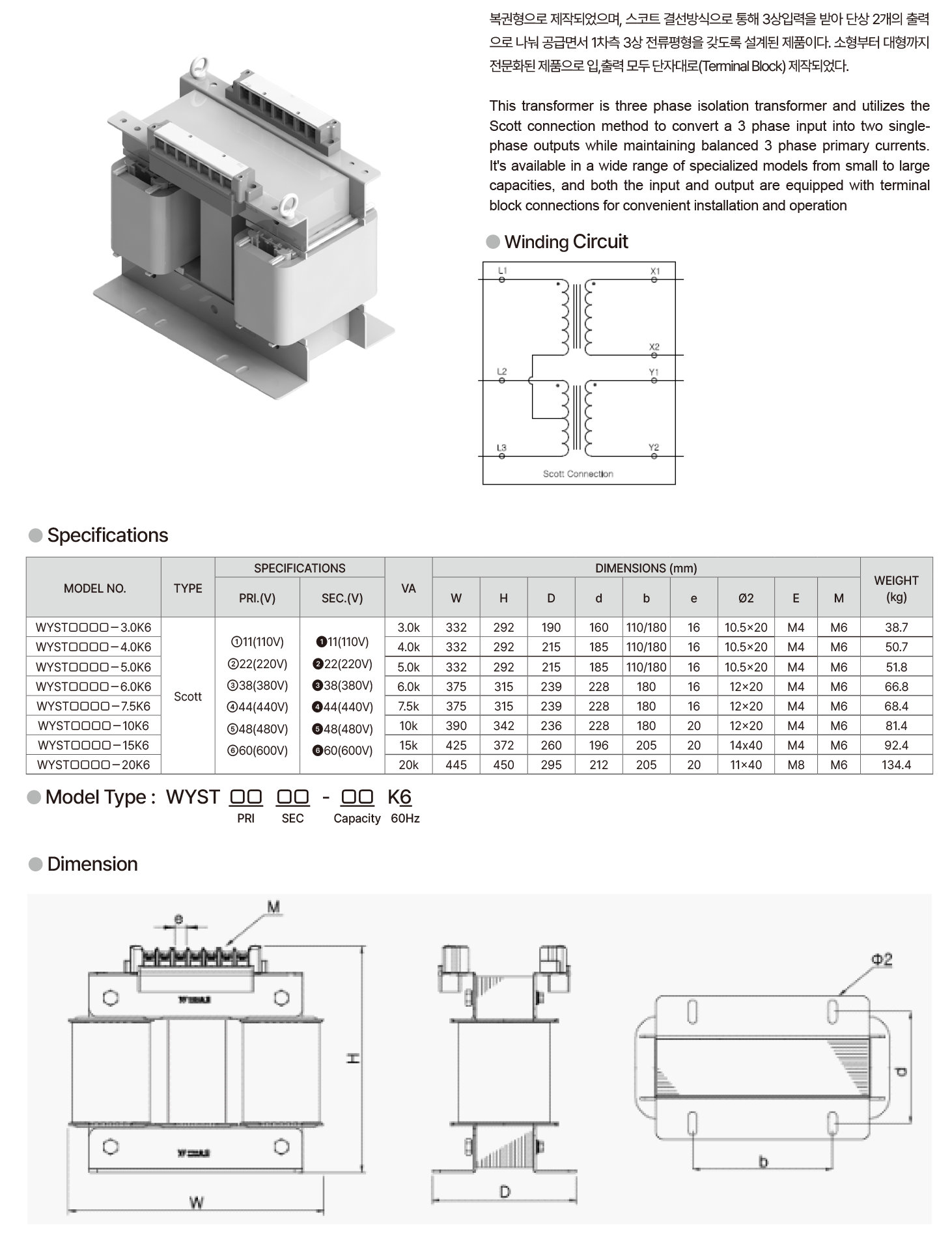

Model No WYST3822-3.0K6 WYST3822-4.0K6 WYST3822-5.0K6 WYST3822-6.0K6 WYST3822-7.5K6 WYST3822-10K6 WYST3822-15K6 WYST3822-20K6 TYPE SCOTT Transformer Certification Rating Input 110V 220V 380V 440V 480V 600V Output 110V 220V 380V 440V 480V 600V Capacity 3kVA~20kVA
Support servicesSpecifications and Features
This transformer is three phase isolation transformer and utilizes the Scott connection method to convert a 3 phase input into two single-phase outputs while maintaining balanced 3 phase primary currents. It's available in a wide range of specialized models from small to large capacities, and both the input and output are equipped with terminal block connections for convenient installation and operation
