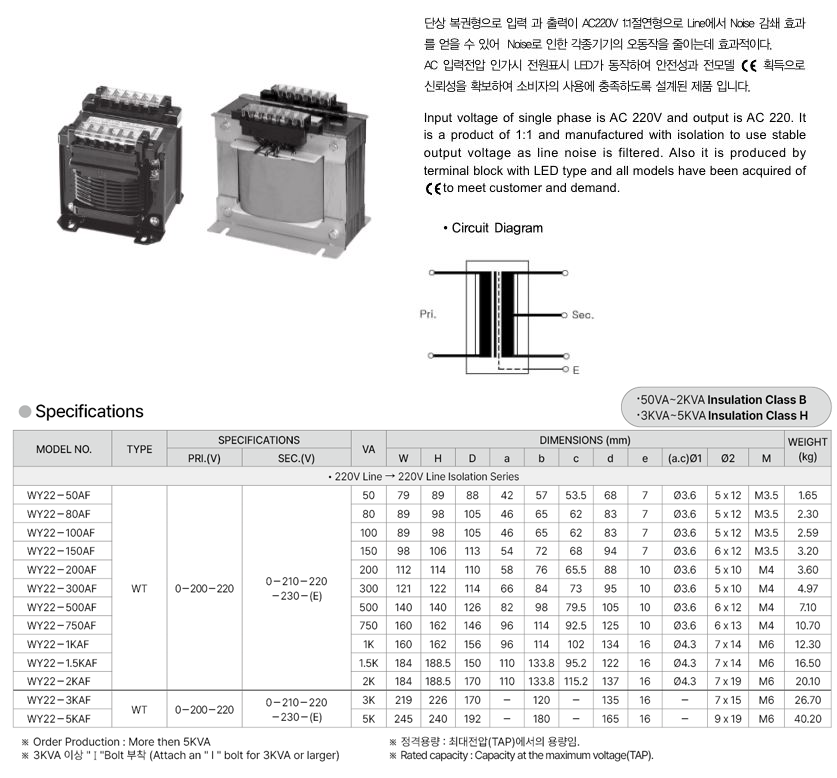

Model No WY22-50AF WY22-80AF WY22-100AF WY22-150AF WY22-200AF WY22-300AF WY22-500AF WY22-750AF WY22-1KAF WY22-1.5KAF WY22-2KAF WY22-3KAF WY22-5KAF TYPE 1Phase - WT type (Terminal type) Certification CE Rating - Input 0-200-220 Output 0-210-220-230-(E) Capacity 50VA~5kVA
Support servicesSpecifications and FeaturesSingle phase lottery-type input and output can achieve noise attenuation effect in line with AC220V 1:1 isolation.
Effective in reducing malfunctions of various devices caused by noise.
When AC input voltage is applied, the power display LED operates and it is secured with the reliability of the entire models are acquired CE certification.
※ Order Production : More then 5KVA
※ Over 3KVA : " I "Bolt is attached
