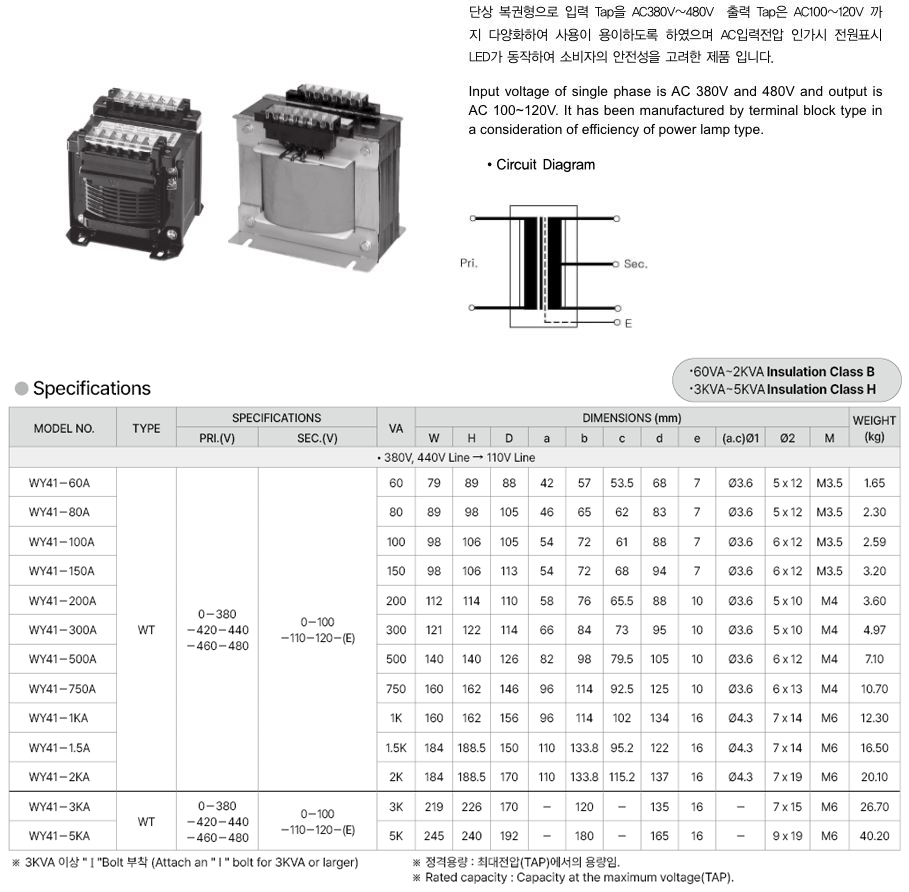

Model No WY41-60A WY41-80A WY41-100A WY41-150A WY41-200A WY41-300A WY41-500A WY41-750A WY41-1KA WY41-1.5KA WY41-2KA WY41-3KA WY41-5KA TYPE 1Phase - WT type (Terminal type) Certification Rating - Input 0-380-420-440 -460-480 Output 0-100-110-120-(E) Capacity 60VA~5kVA
Support servicesSpecifications and FeaturesAs a single-phase isolation type, the input tap is diversified from AC 380V to 480V, and the output tap is AC100 to 120V for ease of use.
When AC input voltage is applied, the power indicator LED operates for consumer's safety.
※ Over 3KVA :" I "Bolt is attached
