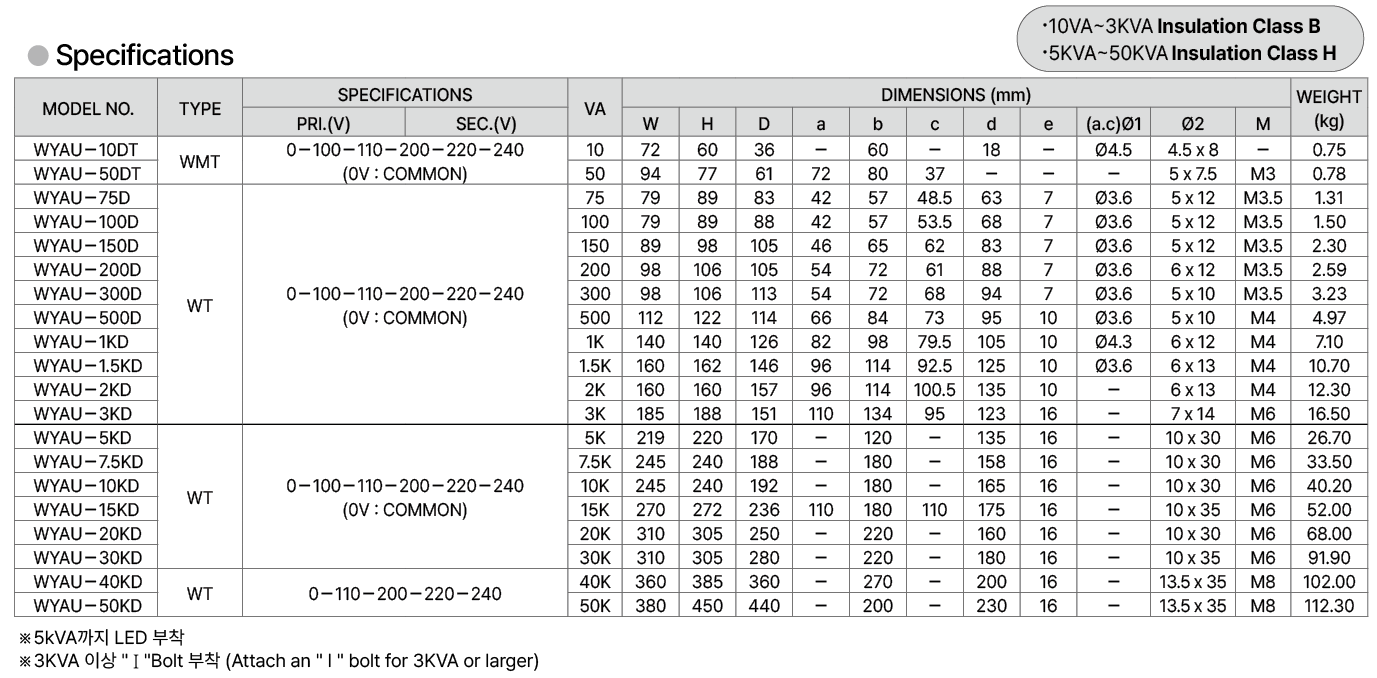

Model No WYAU-10DT WYAU-50DT WYAU-75D WYAU-100D WYAU-150D WYAU-200D WYAU-300D WYAU-500D WYAU-1KD WYAU-1.5KD WYAU-2KD WYAU-3KD WYAU-5KD WYAU-7.5KD WYAU-10KD WYAU-15KD WYAU-20KD WYAU-30KD WYAU-40KD WYAU-50KD TYPE 1Phase WMT, WT type Certification Rating - Input 0-100-110-220 -220 0-100-110-200 -220-240 0-110-200-220 -240 Output Capacity 10VA~50kVA
Support servicesSpecifications and FeaturesIt is single phase and single winding, non-insulating transformer that the primary and secondary windings are connected.
So the size is small and the price is cheap but it is used simple load as Lamp, Heater, Motor and Fan.
Please consider carefully because it may malfunction when use to noise sensitive appliance to various controllers, position controller, PLC Etc.Over 3KVA : " I " Bolt is attached
