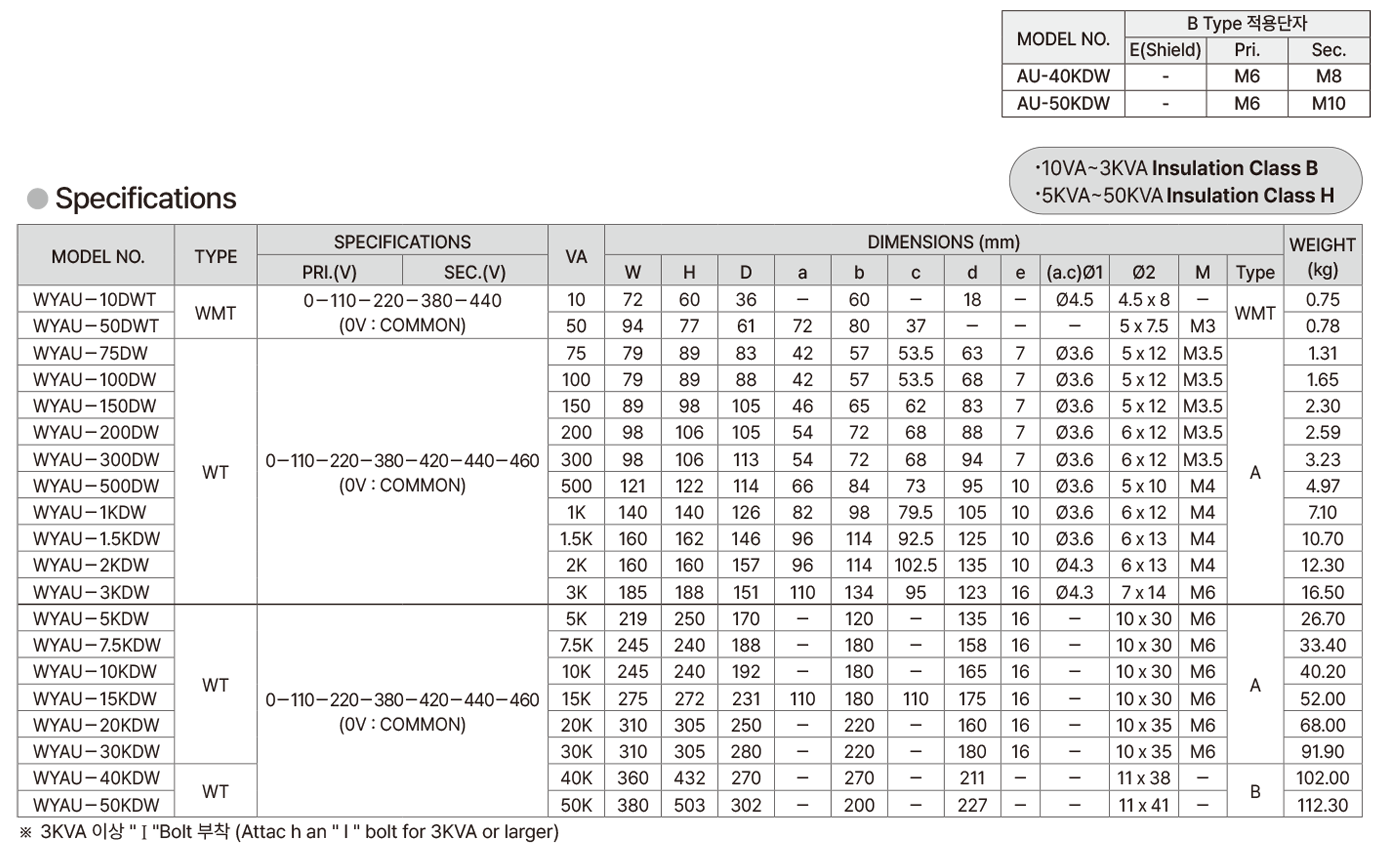

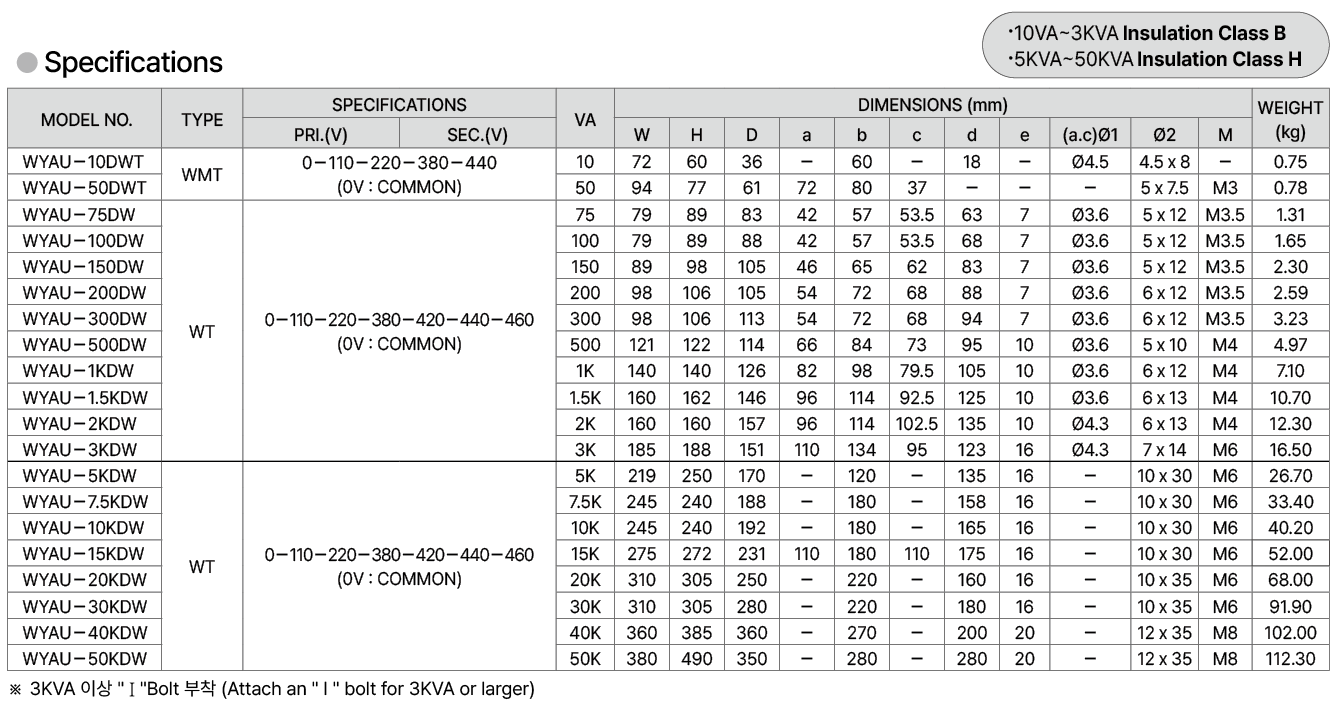

Model No WYAU-10DWT WYAU-50DWT WYAU-75DW WYAU-100DW WYAU-150DW WYAU-200DW WYAU-300DW WYAU-500DW WYAU-1KDW WYAU-1.5KDW WYAU-2KDW WYAU-3KDW WYAU-5KDW WYAU-7.5KDW WYAU-10KDW WYAU-15KDW WYAU-20KDW WYAU-30KDW WYAU-40KDW WYAU-50KDW TYPE 1Phase WT type Certification Rating - Input 0-110-220-380 -440 0-110-220-380 -420-440-460 Output Capacity 10VA~50kVA

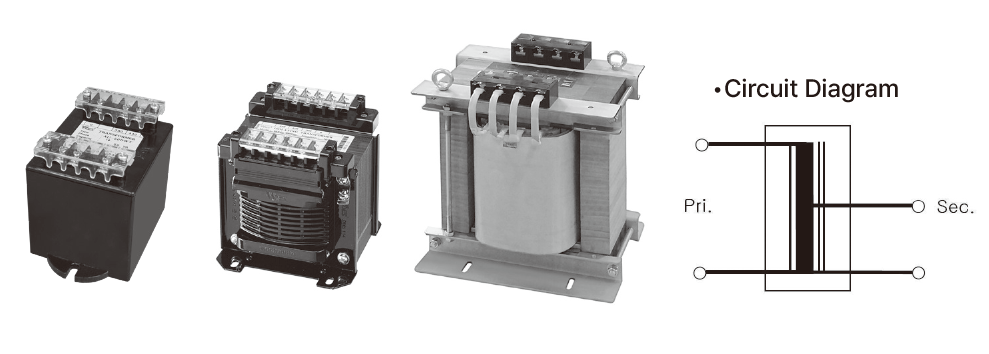

Support servicesSpecifications and FeaturesIt is single phase and single winding, non-insulating transformer that the primary and secondary windings are connected.
So the size is small and the price is cheap but it is used simple load as Lamp, Heater, Motor and Fan.
Please consider carefully because it may malfunction when use to noise sensitive appliance to various controllers, position controller, PLC Etc.Over 3kVA : " I " Bolt is attached
