Product
- TransformerHi & Low Voltage ReactorSmart ReactorNCTSolid State RelayHeat sinkSVC Power Controller Thyristor UnitNoise FilterSMPS-Power SupplyBattery ChargerPassive Harmonic FilterMicro Surge FilterSine-Wave FilterZero Hamonics FilterMedium Voltage (CT) Medium Voltage (VT,EVT) Combined CT & VT (M.O.F)Epoxy Insulator (MV/HV)RectifierLine Potential & Temperature SignallerCurrent Transformer, Voltage TransformerDigital Power Protective RelayGround Fault RelayZero-Current TransEarth Leakage Detector, Earth Leakage RelayPanel Board MetersSurge Protective DeviceShunt FanMetal Stamped Items
-
-

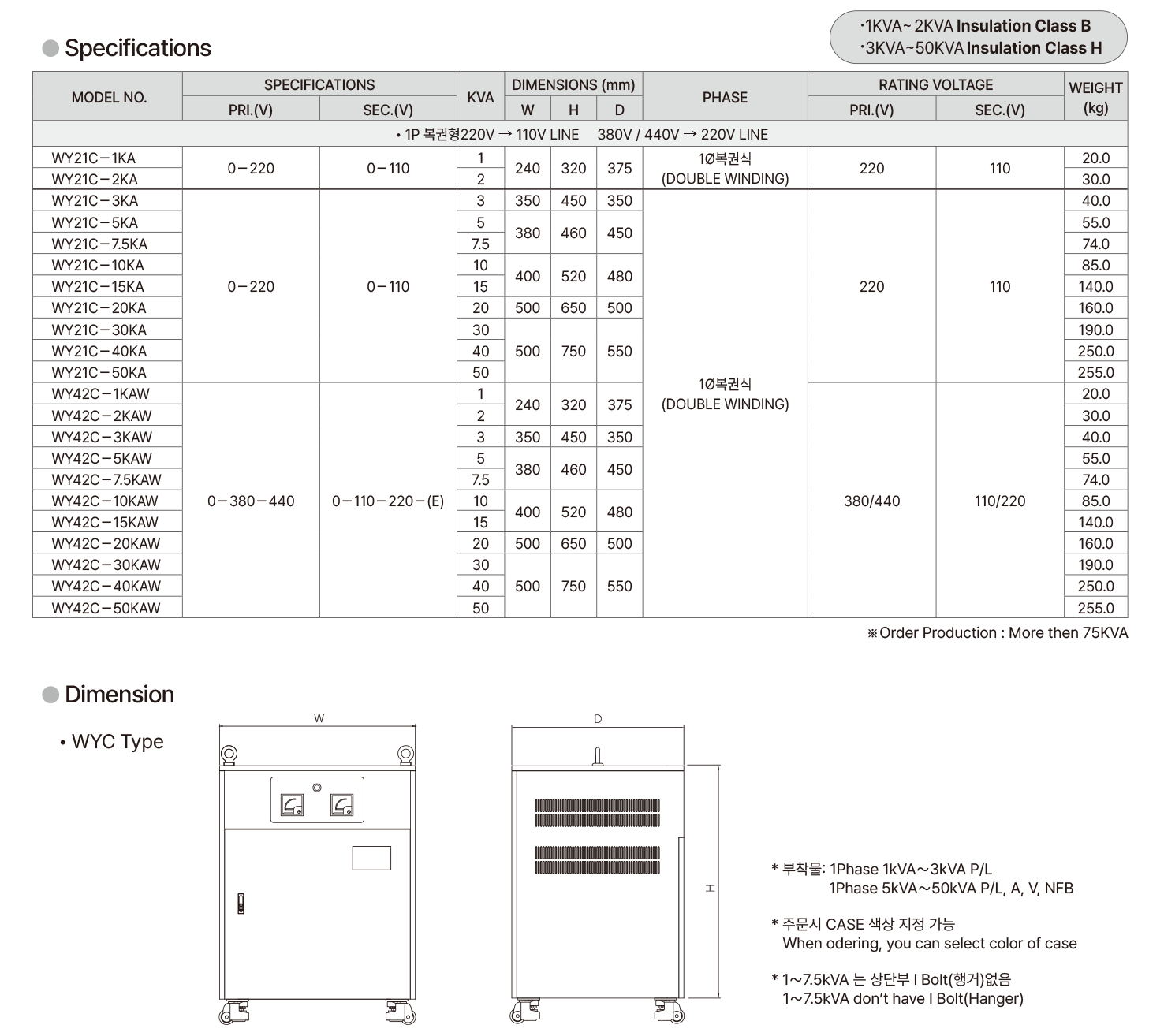

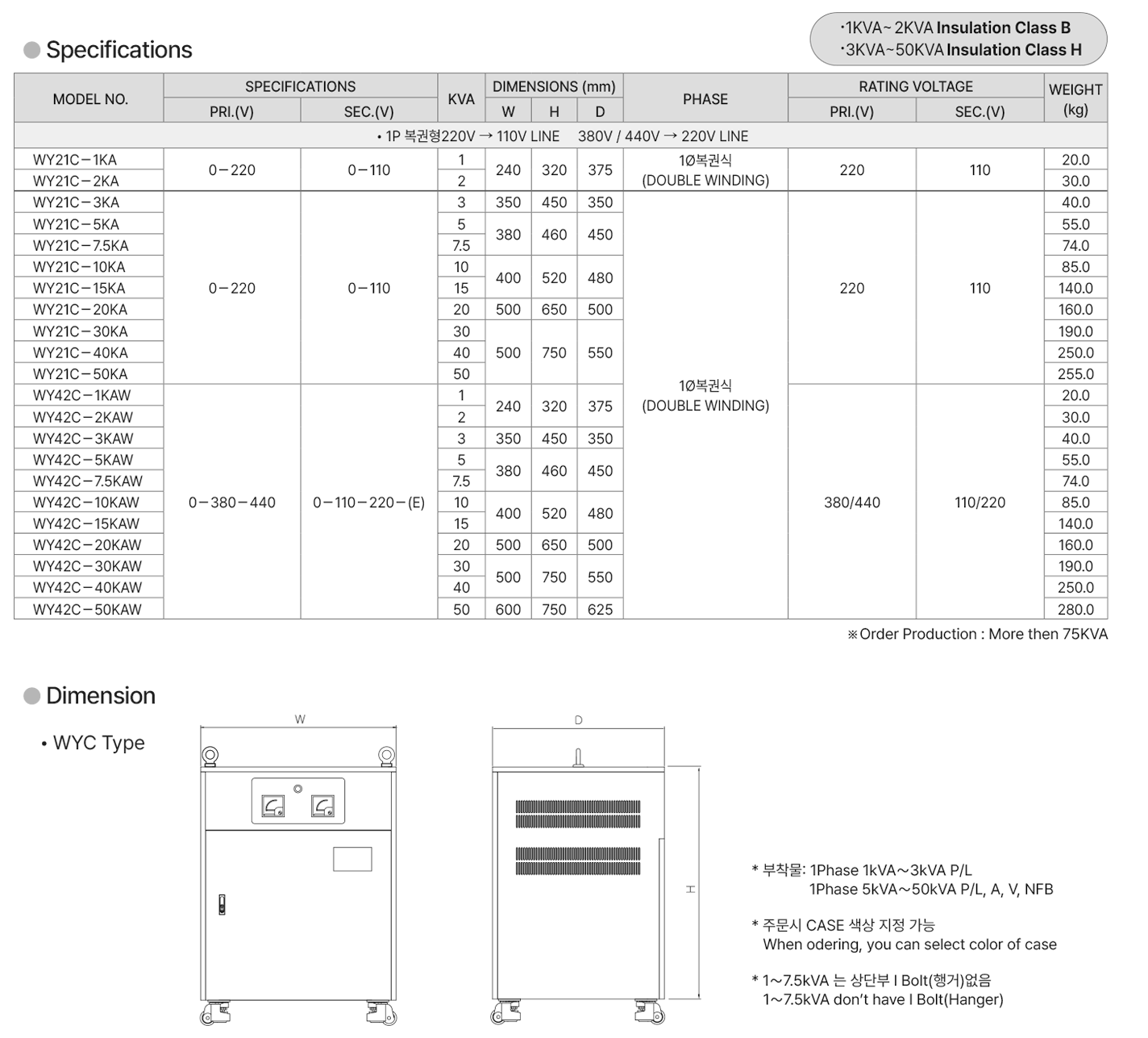

Model No WY21C-1KA WY21C-2KA WY21C-3KA WY21C-5KA WY21C-7.5KA WY21C-10KA WY21C-15KA WY21C-20KA WY21C-30KA WY21C-40KA WY21C-50KA TYPE 1Phase - WY1C Certification Rating - Input 0-220 Output 0-110 Capacity 1kVA~50kVA
Support servicesSpecifications and FeaturesIt is 1 phase, isolated winding, general dry, and cased type.
Lamp V-M, A-M, and NFB are attached at the front, and terminal block was attached at the backside door for the convenient operation.
The panel case was made with transportation wheel for easy transport.
