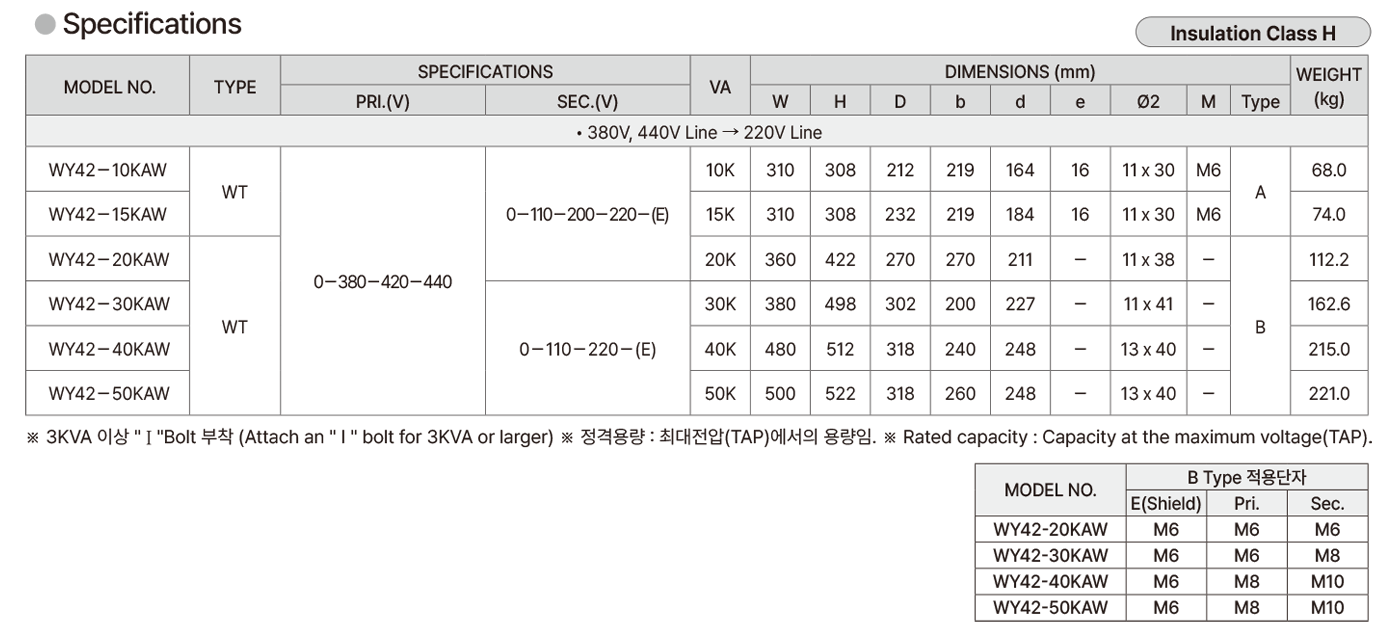

Model No WY42-10KAW WY42-15KAW WY42-20KAW WY42-30KAW WY42-40KAW WY42-50KAW TYPE 1Phase - WT type (Terminal type) Certification Rating - Input 0-380-420-440 Output 0-110-200-220-(E) 0-110-220-(E) Capacity 10kVA~50kVA

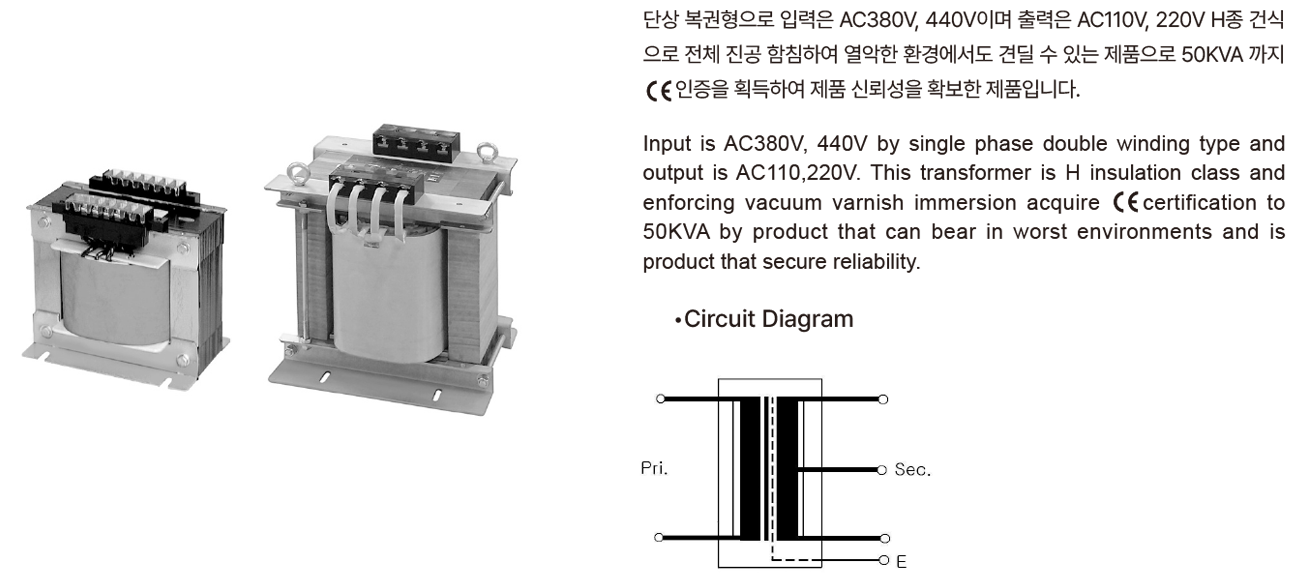

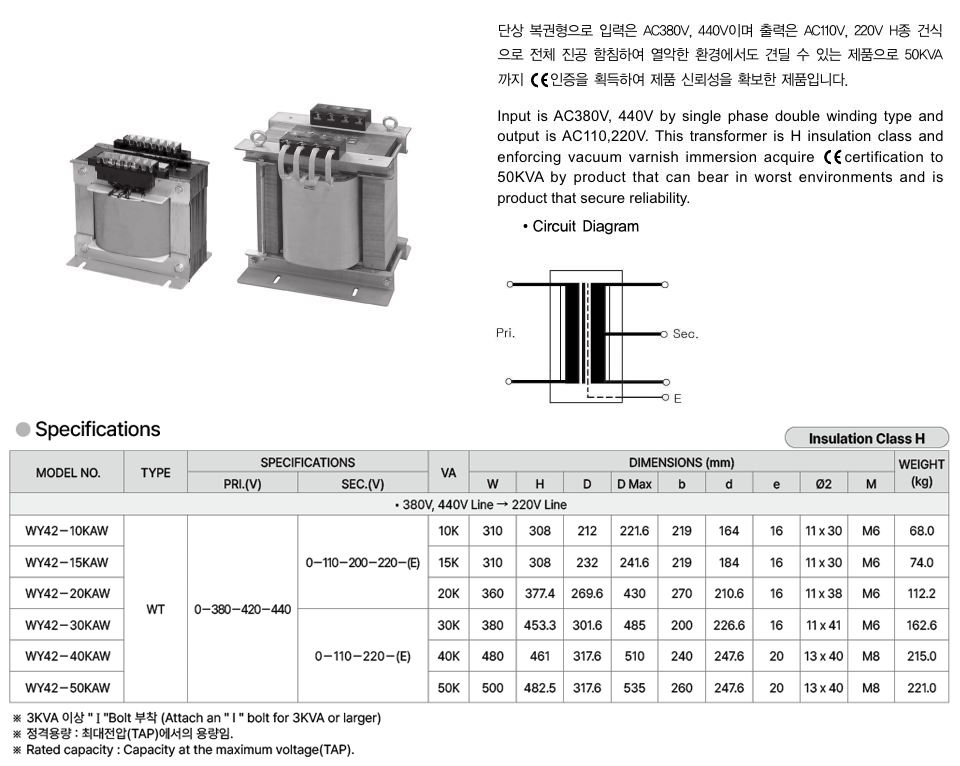

Support servicesSpecifications and FeaturesAs a single-phase isolation type, the input is 380V, 440V AC, and the output is AC 110V and 220V.
It is a product considering the safety of consumers by operating the power indicator LED when AC input voltage is applied.
※ Over 3KVA : " I "Bolt is attached
