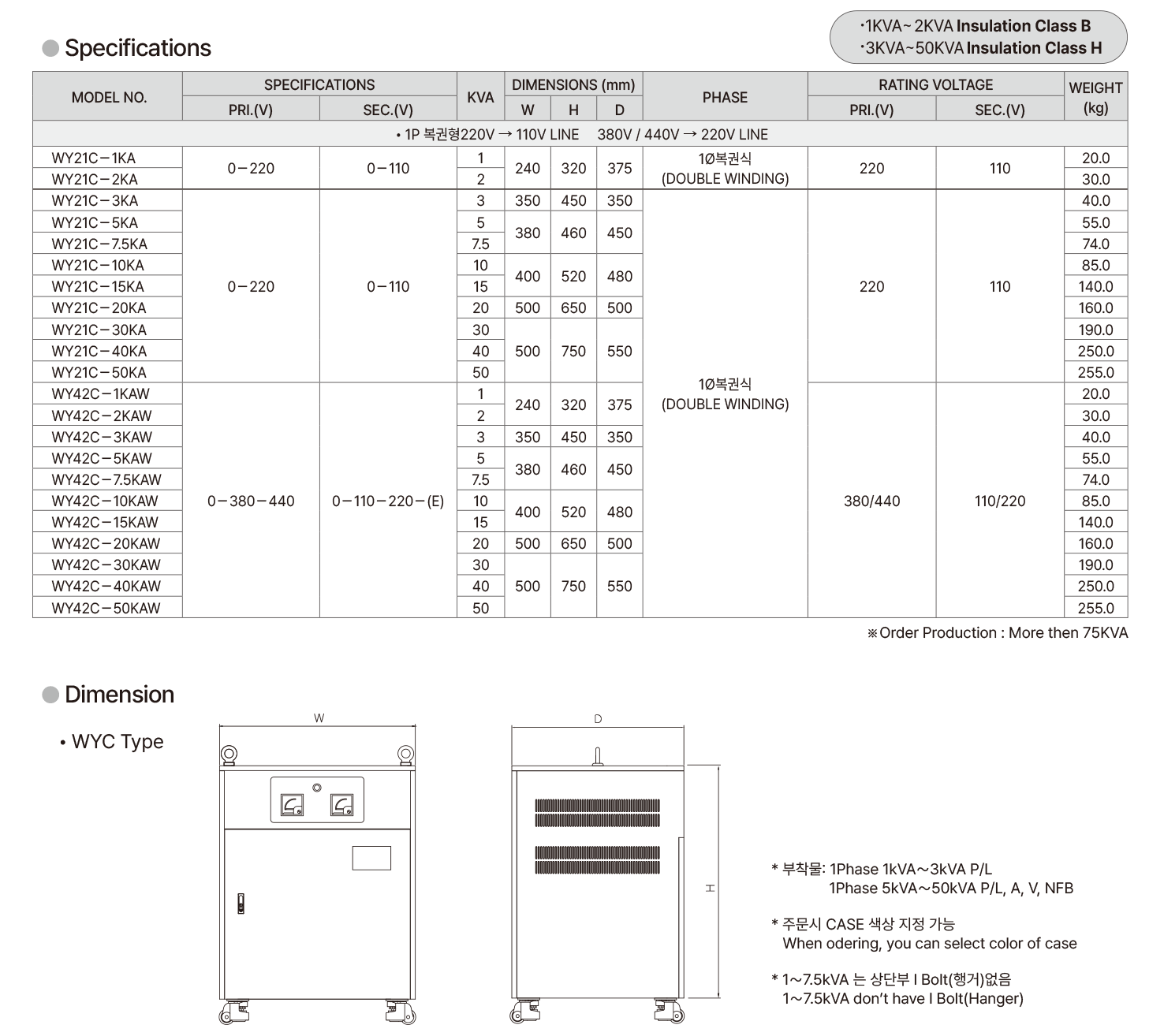

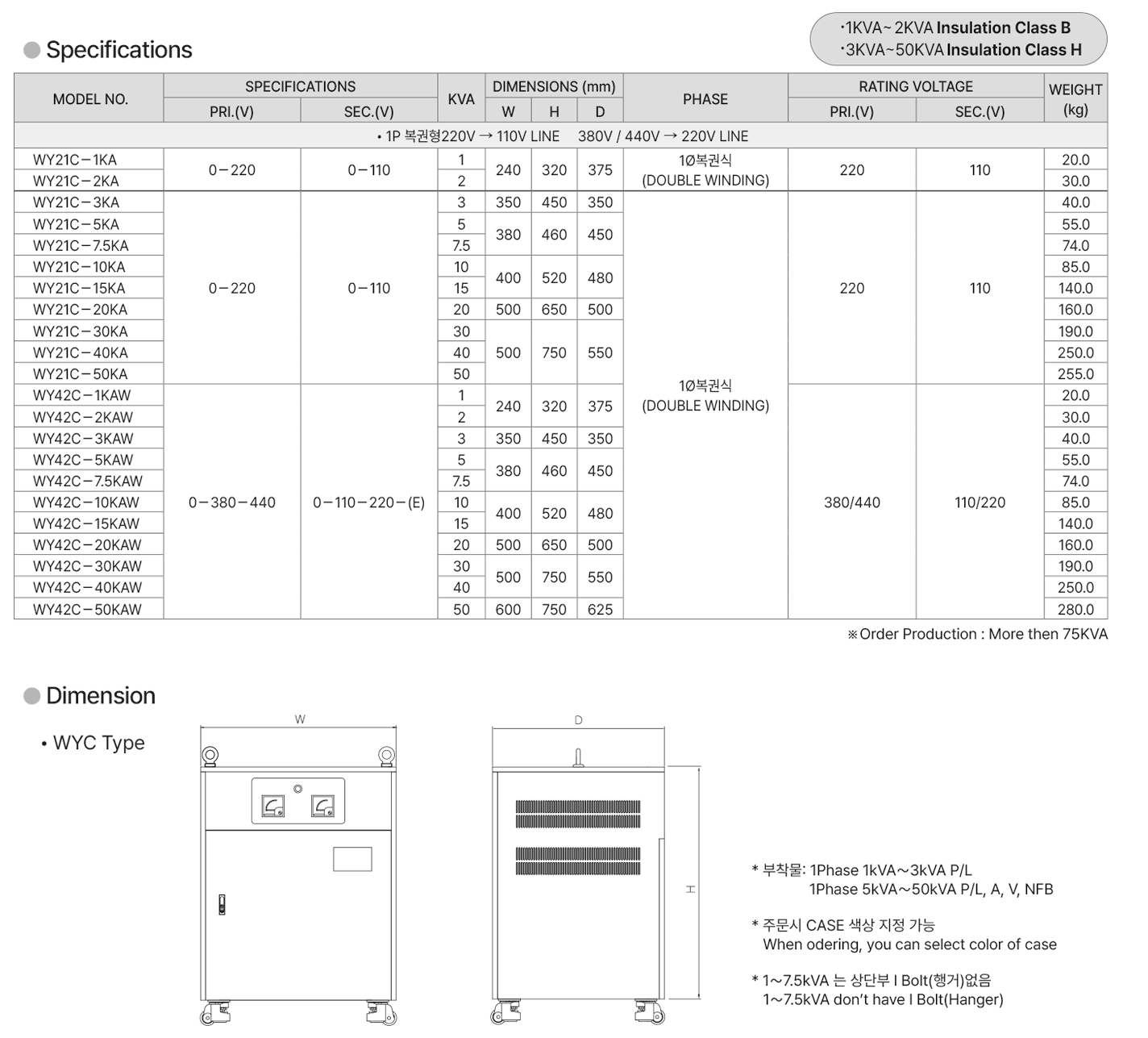

Model No WY42C-1KAW WY42C-2KAW WY42C-3KAW WY42C-5KAW WY42C-7.5KAW WY42C-10KAW WY42C-15KAW WY42C-20KAW WY42C-30KAW WY42C-40KAW WY42C-50KAW TYPE 1Phase - WY1C Certification Rating - Input 0-380-440 Output 0-110-220-(E) Capacity 1kVA~50kVA
Support servicesSpecifications and FeaturesIt is 1 phase, isolated winding, general dry, and cased type.
Lamp V-M, A-M, and NFB are attached at the front, and terminal block was attached at the backside door for the convenient operation.
The panel case was made with transportation wheel for easy transport.
