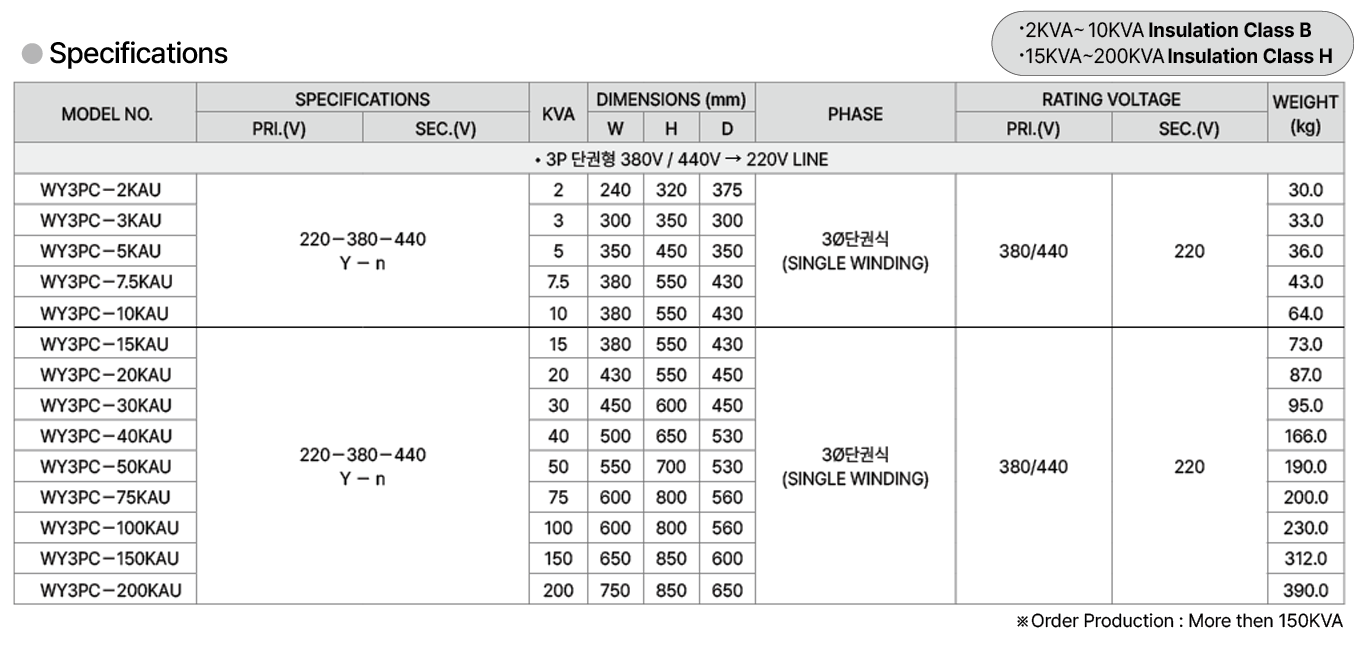

Model No WY3PC-2KAU WY3PC-3KAU WY3PC-5KAU WY3PC-7.5KAU WY3PC-10KAU WY3PC-15KAU WY3PC-20KAU WY3PC-30KAU WY3PC-40KAU WY3PC-50KAU WY3PC-75KAU WY3PC-100KAU WY3PC-150KAU WY3PC-200KAU TYPE 3Phase - WY3C Certification Rating - Input 220-380-440 Output 220-380-440 Capacity 2kVA~200kVA

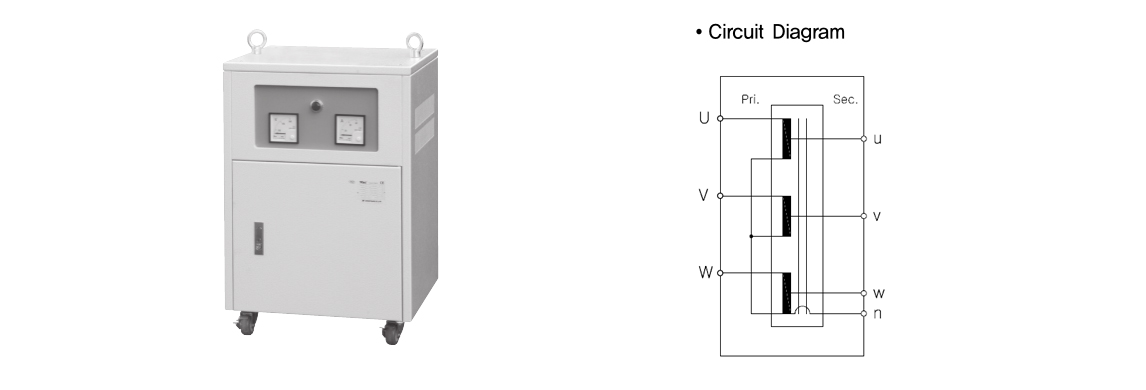

Support servicesSpecifications and FeaturesIt is 3 phase, non-isolated winding, general dry, and cased type.
Lamp V-M, A-M, and NFB are attached at the front, and terminal block was attached at the backside door for the convenient operation.
The panel case was made with transportation wheel for easy transport.
