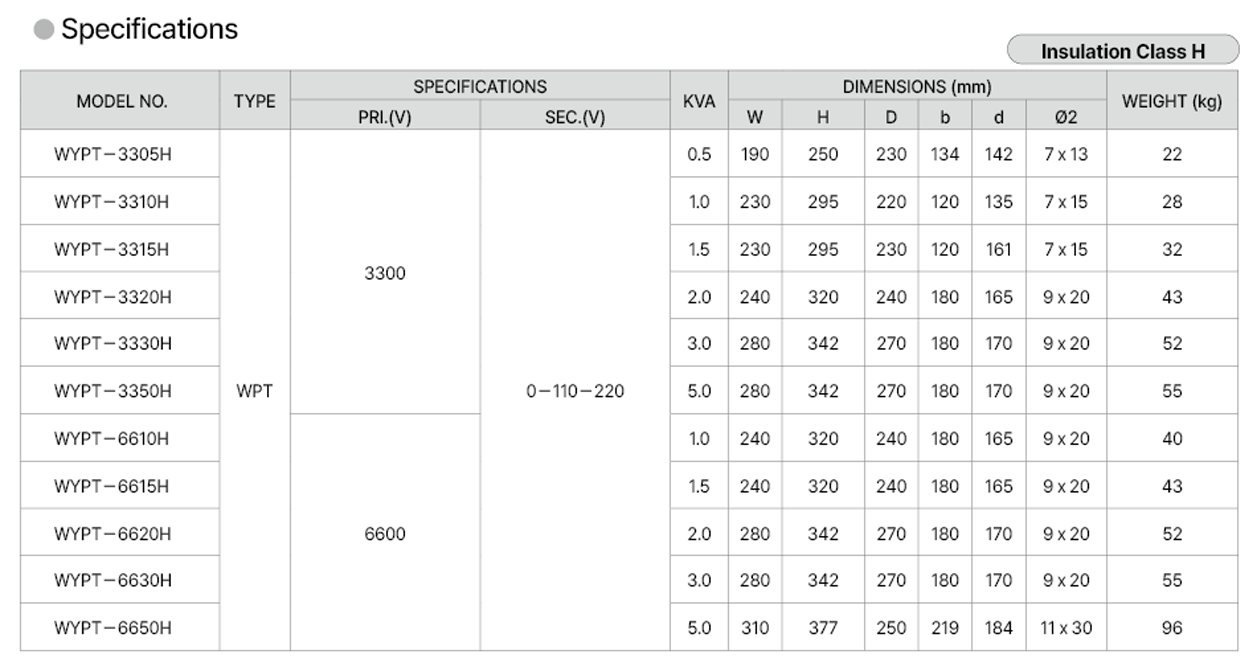

Model No WYPT-331105H WYPT-331110H WYPT-331115H WYPT-331120H WYPT-331130H WYPT-331150H WYPT-332205H WYPT-332210H WYPT-332215H WYPT-332220H WYPT-332230H WYPT-332250H WYPT-331205H WYPT-331210H WYPT-331215H WYPT-331220H WYPT-331230H WYPT-331250H TYPE WYPT type (3300V) Certification Rating - Input 3300 Output 0-110-220 Capacity 0.5kVA~5kVA

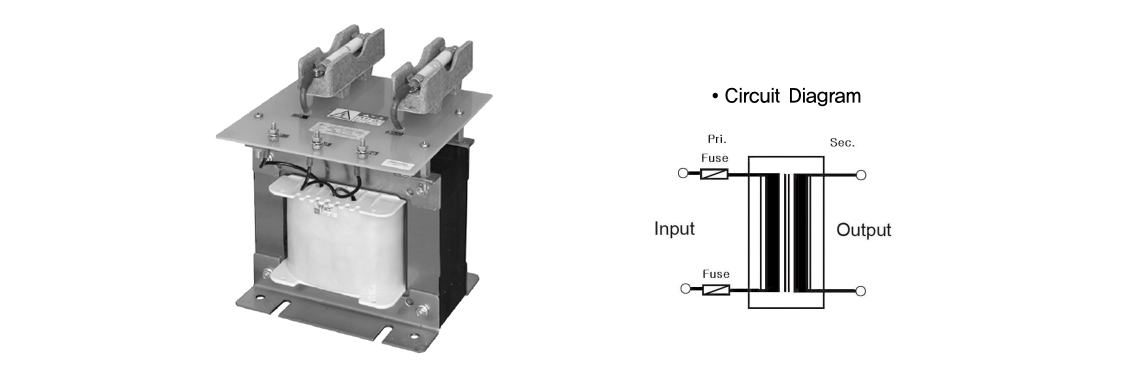

Support servicesSpecifications and FeaturesIt is a single phase, double winding P.T.
Input is AC3300V, and 6600V and output is AC110, 220V.
High Voltage fuse is attached on the top to protect circuit.
Winding is treated by molding in order to prevent damage from high Voltage side and low Voltage side.
