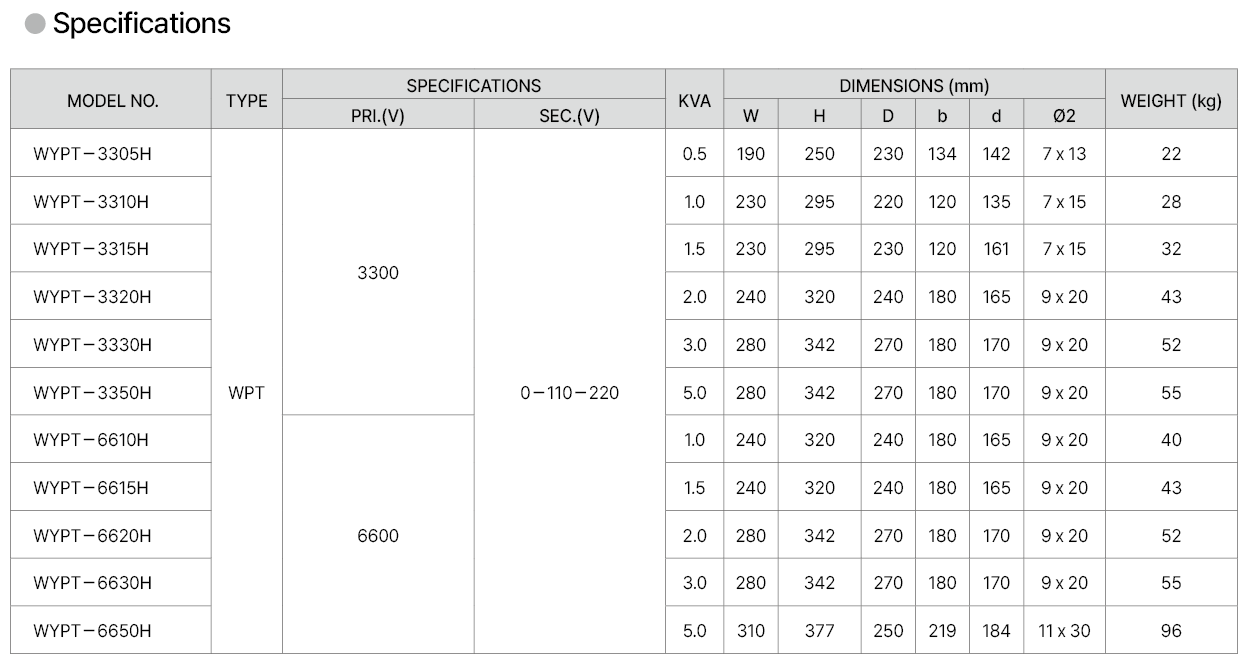

Model No WYPT-6610H WYPT-6615H WYPT-6620H WYPT-6630H WYPT-6650H TYPE WYPT type (6600V) Certification Rating - Input 6600 Output 0-110-220 Capacity 1kVA~5kVA

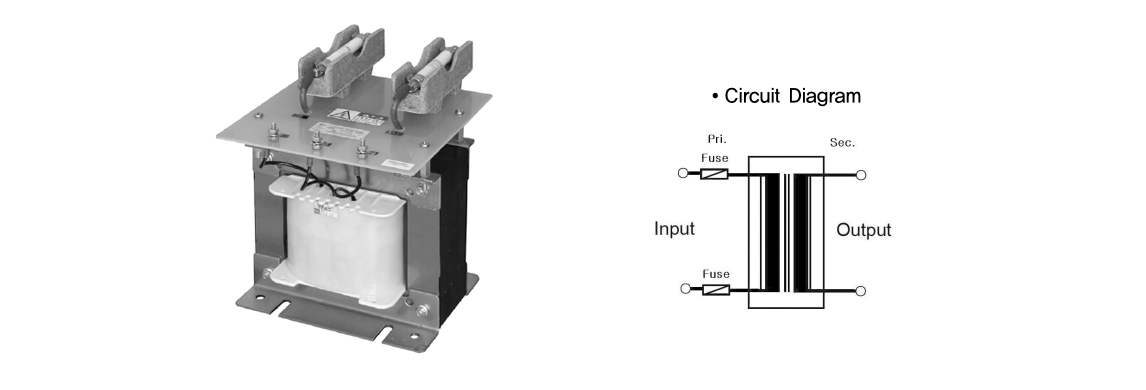

Support servicesSpecifications and FeaturesIt is a single phase, double winding P.T.
Input is AC3300V, 6600V and output is AC110, 220V.
High Voltage fuse is attached on the top to protect circuit.
Winding is treated by molding in order to prevent damage from high Voltage side and low Voltage side.
