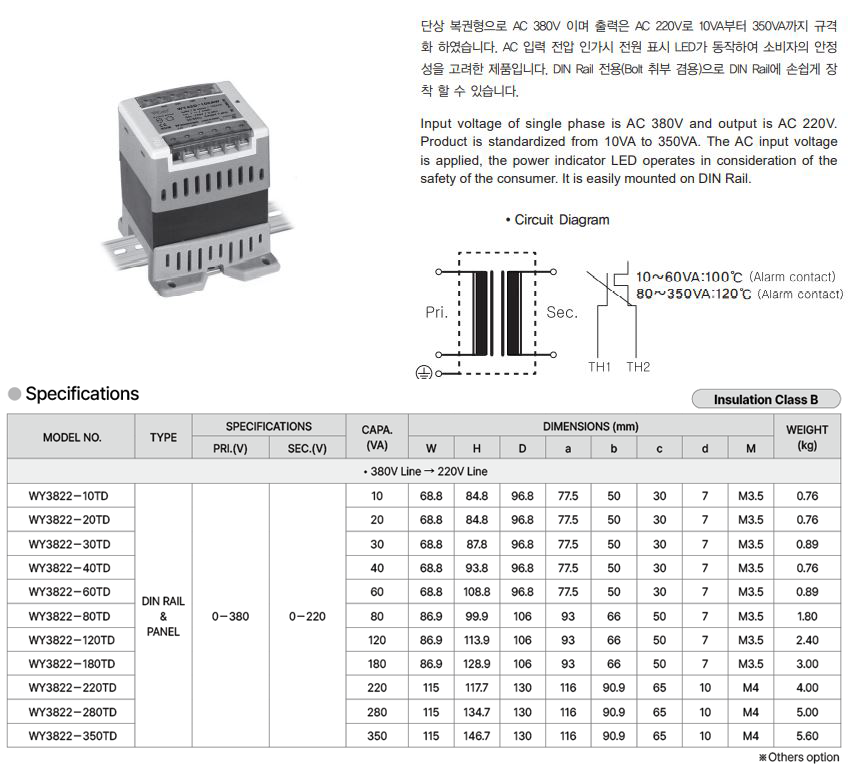

Model No WY3822-10TD WY3822-20TD WY3822-30TD WY3822-40TD WY3822-60TD WY3822-80TD WY3822-120TD WY3822-180TD WY3822-220TD WY3822-280TD WY3822-350TD TYPE DIN RAIL & PANEL Certification Rating Input 380-0 Output 220-0 Capacity 10~350VA
Support servicesSpecifications and FeaturesInput voltage of single phase is AC 380V and output is AC 220V. Product is standardized from 10VA to 350VA.
When the AC input voltage is applied, the power indicator LED operates in consideration of the safety of the consumer.
It is easily mounted on DIN Rail.
* 규격품 외 제품은 주문제작 가능합니다.
* Non-standard products can be custom-made.
