Product
- TransformerHi & Low Voltage ReactorSmart ReactorNCTSolid State RelayHeat sinkSVC Power Controller Thyristor UnitNoise FilterSMPS-Power SupplyBattery ChargerPassive Harmonic FilterMicro Surge FilterSine-Wave FilterZero Hamonics FilterMedium Voltage (CT) Medium Voltage (VT,EVT) Combined CT & VT (M.O.F)Epoxy Insulator (MV/HV)RectifierLine Potential & Temperature SignallerCurrent Transformer, Voltage TransformerDigital Power Protective RelayGround Fault RelayZero-Current TransEarth Leakage Detector, Earth Leakage RelayPanel Board MetersSurge Protective DeviceShunt FanMetal Stamped Items
-
-

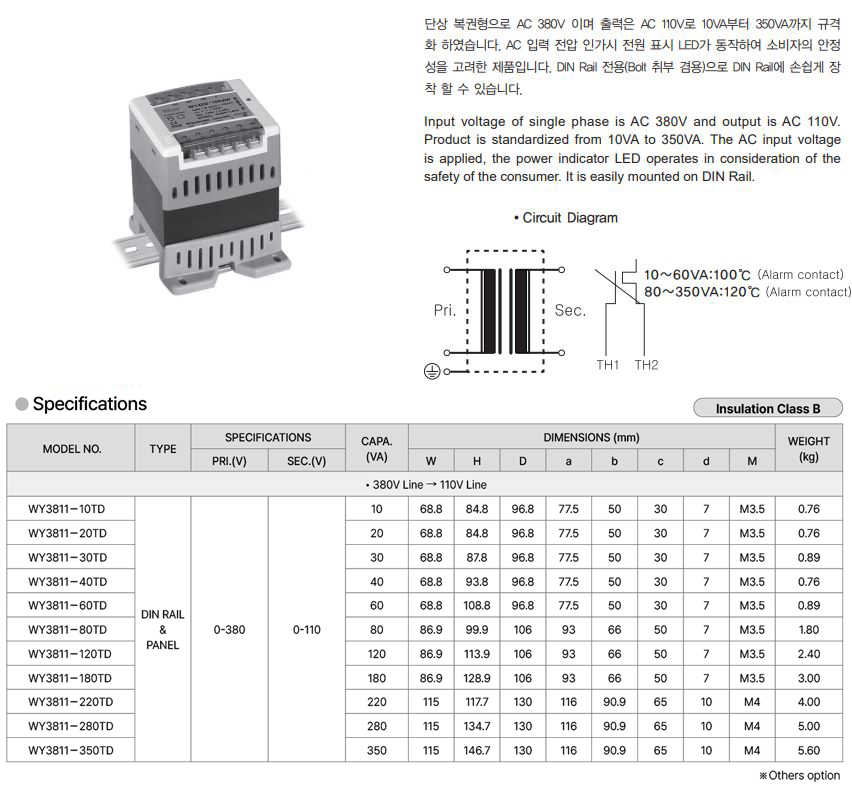

Model No WY3811-10TD WY3811-20TD WY3811-30TD WY3811-40TD WY3811-60TD WY3811-80TD WY3811-120TD WY3811-180TD WY3811-220TD WY3811-280TD WY3811-350TD TYPE DIN RAIL & PANEL Certification Rating Input 380-0 Output 110-0 Capacity 10~350VA
Support servicesSpecifications and FeaturesInput voltage of single phase is AC 380V and output is AC 110V. Product is standardized from 10VA to 350VA.
When the AC input voltage is applied, the power indicator LED operates in consideration of the safety of the consumer.
It is easily mounted on DIN Rail.
* 규격품 외 제품은 주문제작 가능합니다.
* Non-standard products can be custom-made.
