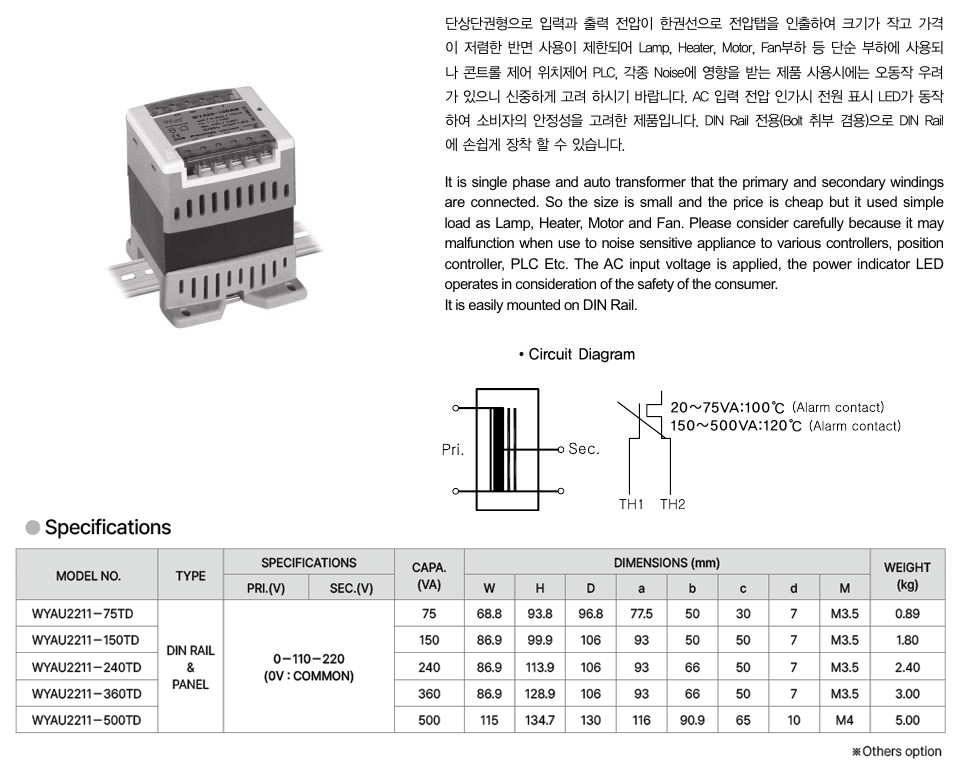

Model No WYAU2211-75TD WYAU2211-150TD WYAU2211-240TD WYAU2211-360TD WYAU2211-500TD TYPE DIN RAIL & PANEL Certification Rating Input 220VAC Output 110VAC Capacity 20~500VA
Support servicesSpecifications and FeaturesIt is single phase and single winding non-insulating transformer that the primary and secondary windings are connected. So the size is small and the price is cheap but it used simple load as Lamp,
Heater, Motor and Fan. Please consider carefully because it may malfunction when use to noise sensitive appliance to various controllers, position controller,
PLC Etc. The AC input voltage is applied, the power indicator LED operates in consideration of the safety of the consumer.
It is easily mounted on DIN Rail.
* 규격품 외 제품은 주문제작 가능합니다.
* Non-standard products can be custom-made.
