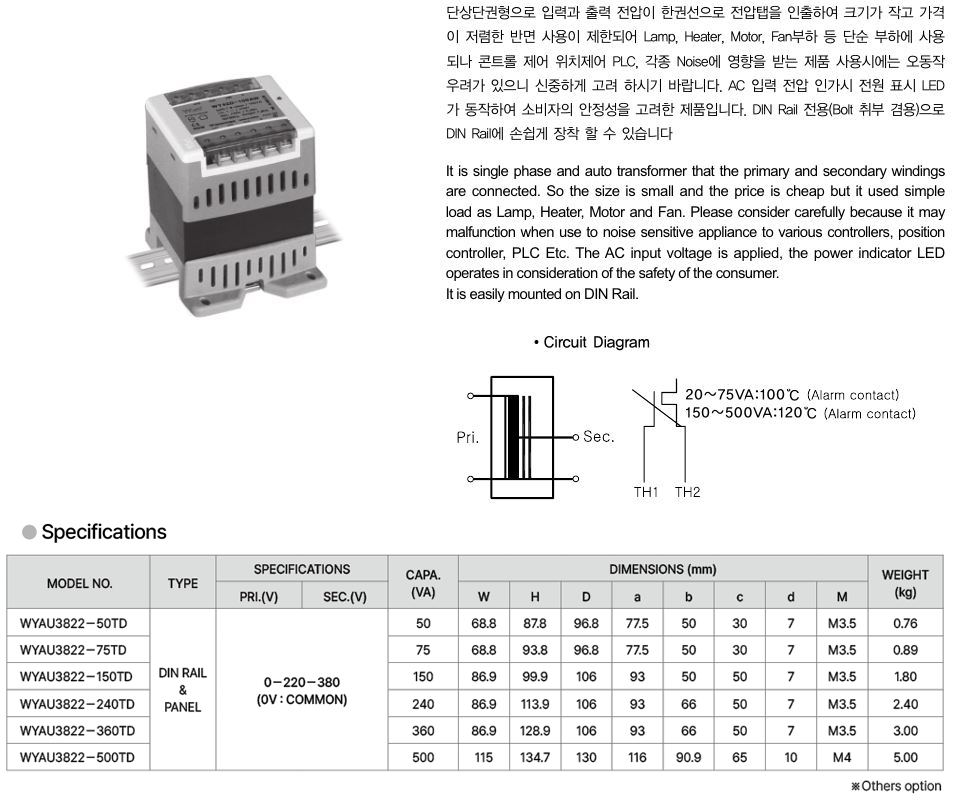

Model No WYAU3822-50TD WYAU3822-75TD WYAU3822-150TD WYAU3822-240TD WYAU3822-360TD WYAU3822-500TD TYPE DIN RAIL & PANEL Certification Rating Input 380VAC Output 220VAC Capacity 20~500VA
Support servicesSpecifications and FeaturesIt is single phase and single winding non-insulating transformer that the primary and secondary windings are connected.
So the size is small and the price is cheap but it used for simple load as Lamp, Heater, Motor and Fan.
When using products affected by position control, PLC, and various noise, there are concerns about malfunctions, so please consider them carefully.
When AC input voltage is applied, the power display LED operates and takes into account consumer safety.
It can be used with DIN Rail-only (with Bolt fastening), which makes it easy to fit into DIN Rail.
* 규격품 외 제품은 주문제작 가능합니다.
* Non-standard products can be custom-made.
