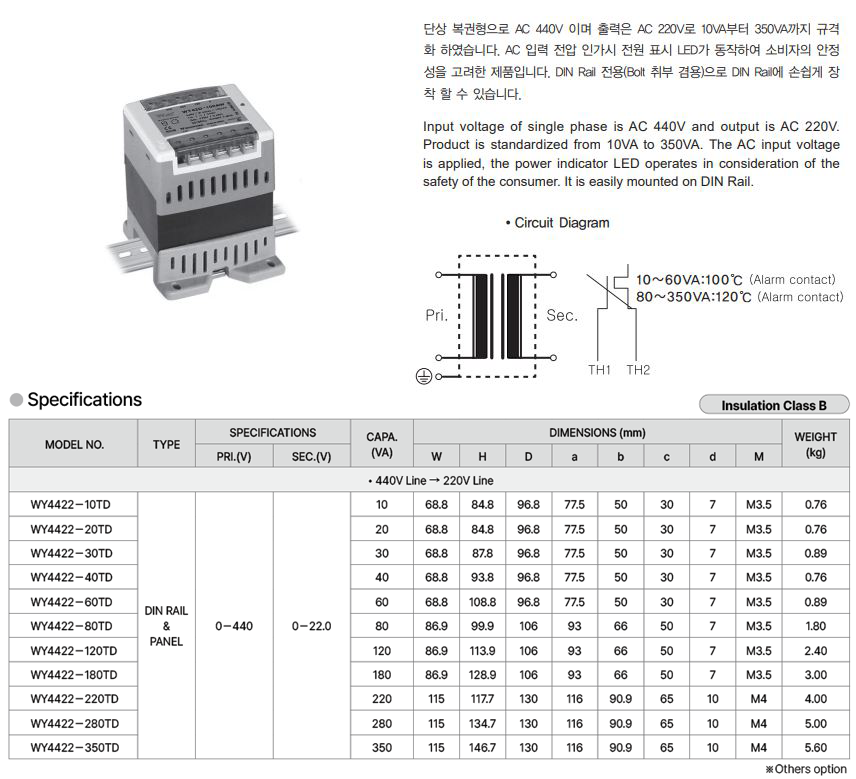

Model No WY4422-10TD WY4422-20TD WY4422-30TD WY4422-40TD WY4422-60TD WY4422-80TD WY4422-120TD WY4422-180TD WY4422-220TD WY4422-280TD WY4422-350TD TYPE DIN RAIL & PANEL Certification Rating Input 440-0 Output 220-0 Capacity 10~350VA
Support servicesSpecifications and FeaturesInput voltage of single phase is AC 440V and output is AC 220V. Product is standardized from 10VA to 350VA.
The AC input voltage is applied, the power indicator LED operates in consideration of the safety of the consumer.
It is easily mounted on DIN Rail.
* 규격품 외 제품은 주문제작 가능합니다.
* Non-standard products can be custom-made.
