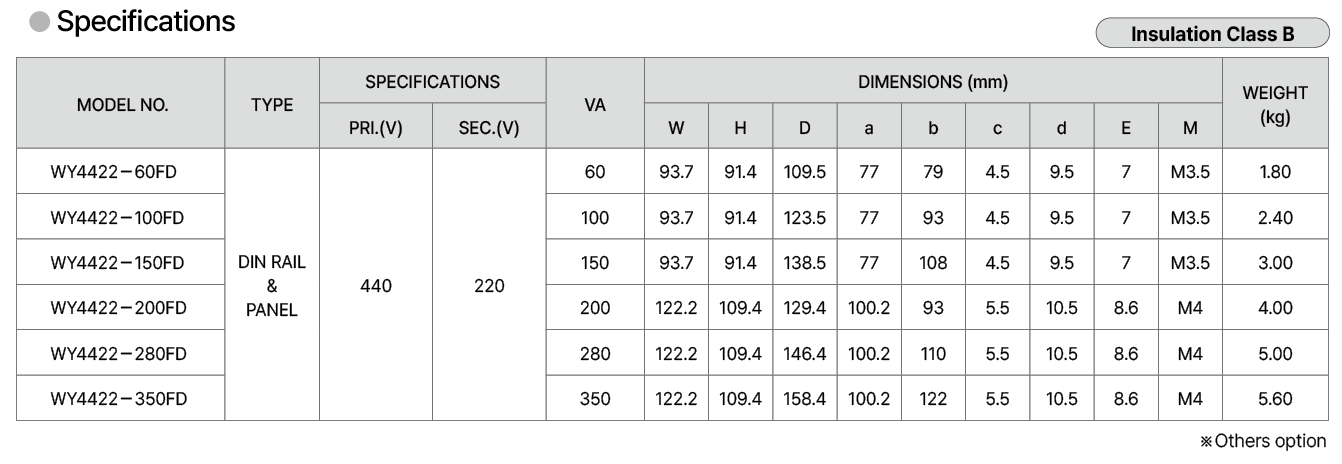

Model No WY4422-60FD WY4422-100FD WY4422-150FD WY4422-200FD WY4422-280FD WY4422-350FD TYPE DIN RAIL & PANEL Certification Rating Input 440VAC Output 220VAC Capacity 60VA~350VA
Support servicesSpecifications and FeaturesFUSED TRANSFORMER is manufactured with Fuse on the first side of TRANSFORMER, which prevents short-load and overload TRANSFORMER protection and safety accidents at facilities.
It is also easy to install DIN Rail when using DIN Rail for both DIN Rail and Bolt.
When TRANSFORMER is powered on, the LED on the power display lights up to check whether the device is energized or not. This product takes into account consumer safety.
* 규격품 외 제품은 주문제작 가능합니다.
* Non-standard products can be custom-made.
