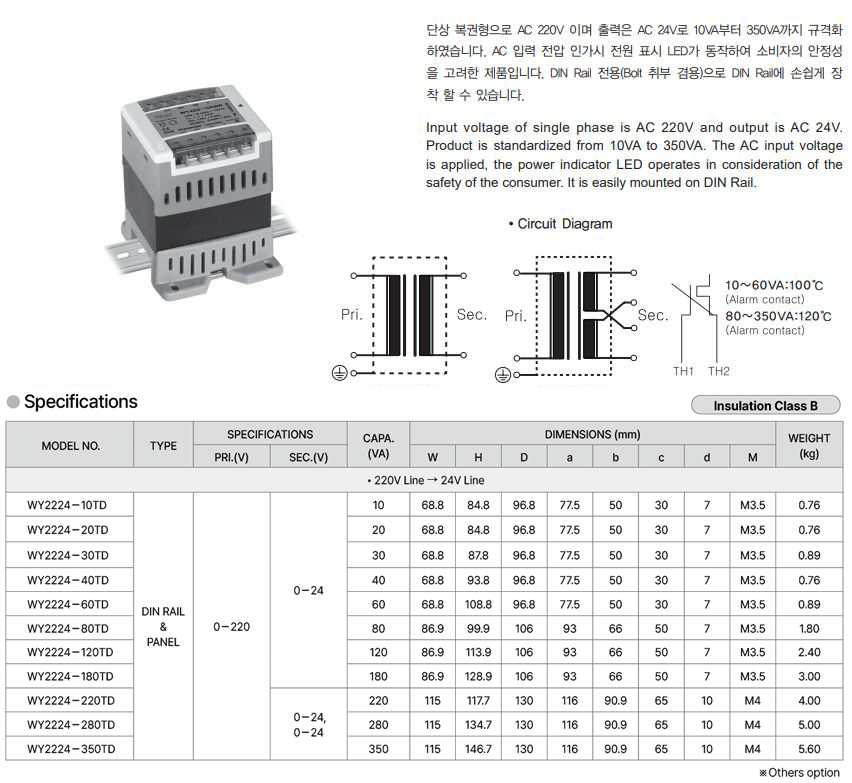

Model No WY2224-10TD WY2224-20TD WY2224-30TD WY2224-40TD WY2224-60TD WY2224-80TD WY2224-120TD WY2224-180TD WY2224-220TD WY2224-280TD WY2224-350TD TYPE DIN RAIL & PANEL Certification Rating Input 220-0 Output 10VA~180VA:24-0 220VA~350VA:24-0,24-0 Capacity 10~350VA
Support servicesSpecifications and FeaturesInput voltage of single phase is AC 220V and output is AC 24V. Product is standardized from 10VA to 350VA.
When the AC input voltage is applied, the power indicator LED operates in consideration of the safety of the consumer.
It is easily mounted on DIN Rail.
* 규격품 외 제품은 주문제작 가능합니다.
* Non-standard products can be custom-made.
