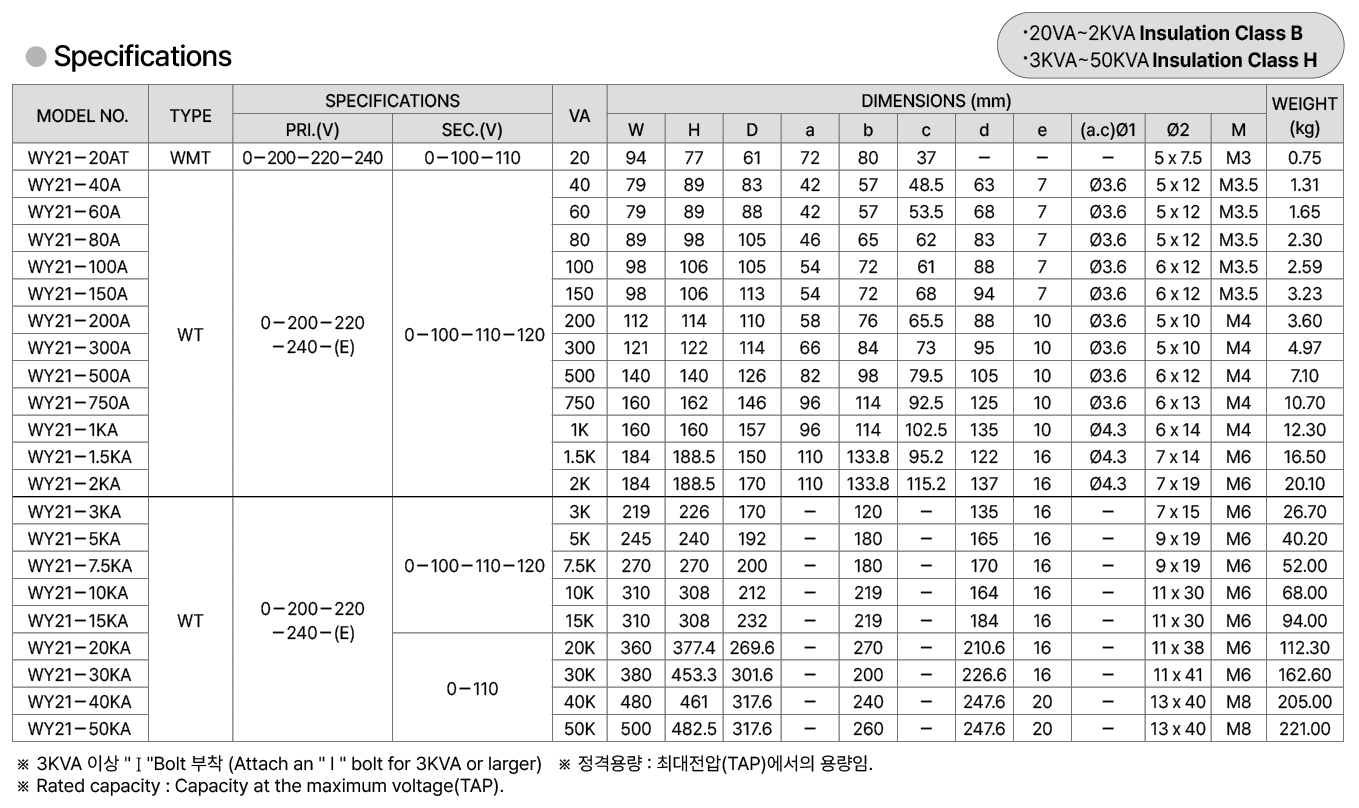

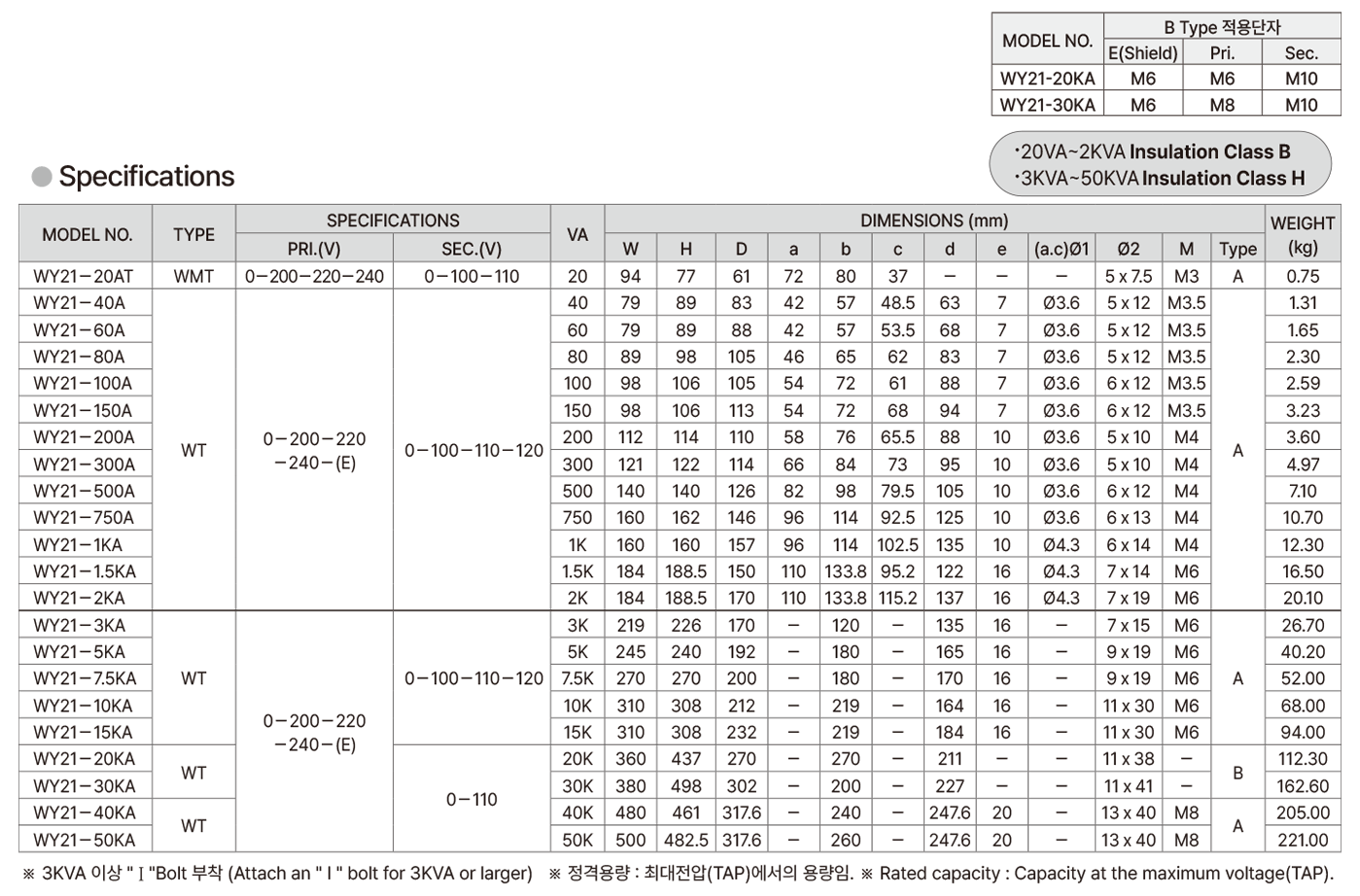

Model No WY21-20AT WY21-40A WY21-60A WY21-80A WY21-100A WY21-150A WY21-200A WY21-300A WY21-500A WY21-750A WY21-1KA WY21-1.5KA WY21-2KA WY21-3KA WY21-5KA WY21-7.5KA WY21-10KA WY21-15KA TYPE 1Phase - WMT, WT type (Terminal type) Certification CE Rating - Input 0-200-220-240-(E) Output 20VA:0-100-110 40VA~15KVA:0-100-110-120 Capacity 20VA~15kVA

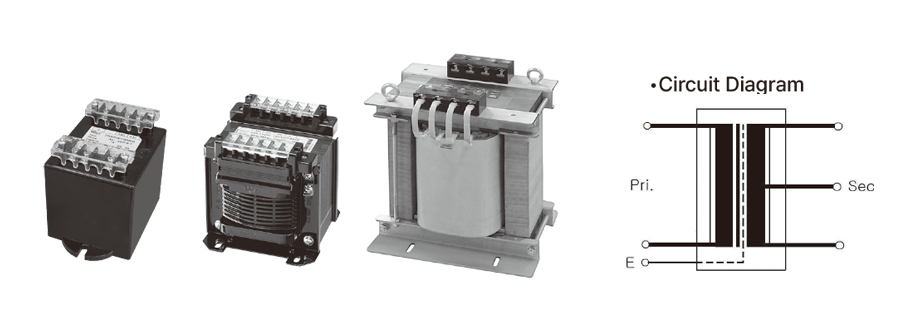

Support servicesSpecifications and FeaturesSingle-phase lottery type with input AC 200V and output is 110V, which can range from normal power supply to full-power supply.
Product is available covering general electric source to large electric power. All models have been acquired of CE.
※ WMT Type : Doesn’t have LED Lamp
※ Over 3KVA : " I "Bolt is attached
