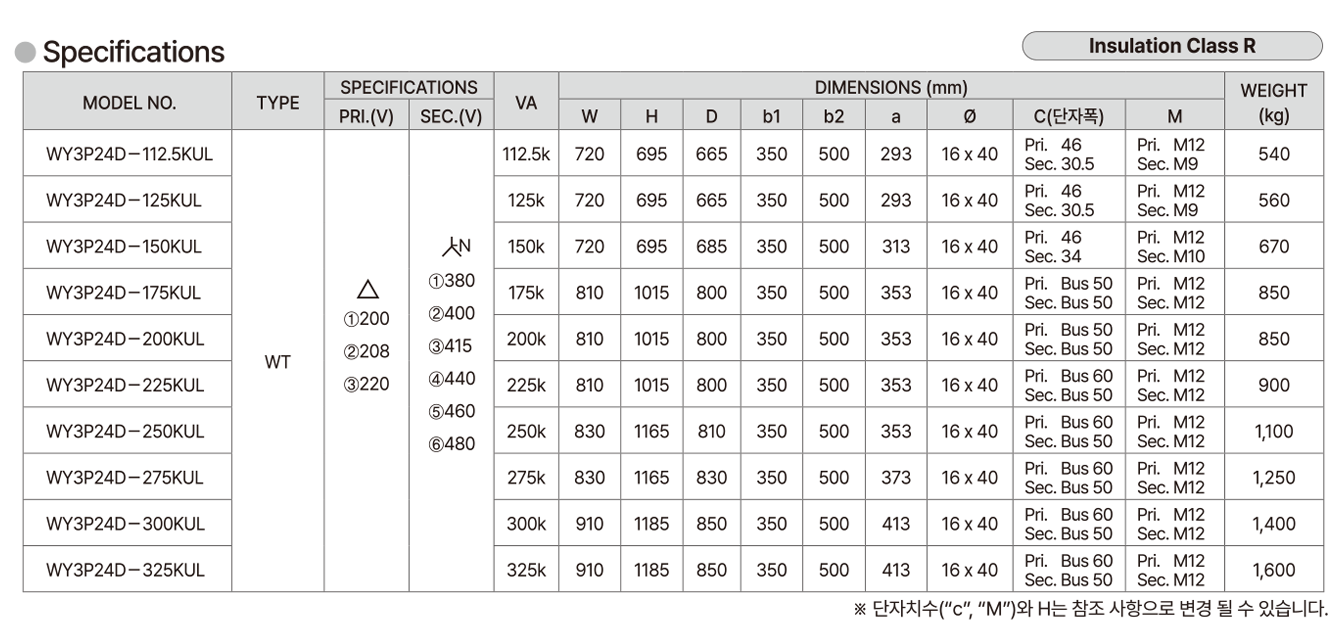

Model No WY3P24D-112.5KUL WY3P24D-125KUL WY3P24D-150KUL WY3P24D-175KUL WY3P24D-200KUL WY3P24D-225KUL WY3P24D-250KUL WY3P24D-275KUL WY3P24D-300KUL WY3P24D-325KUL TYPE 3Phase UL Type Transformer Certification UL Rating Input 200VAC 208VAC 220VAC Output 380VAC 400VAC 415VAC 440VAC 460VAC 480VAC Capacity 112.5kVA~325kVA

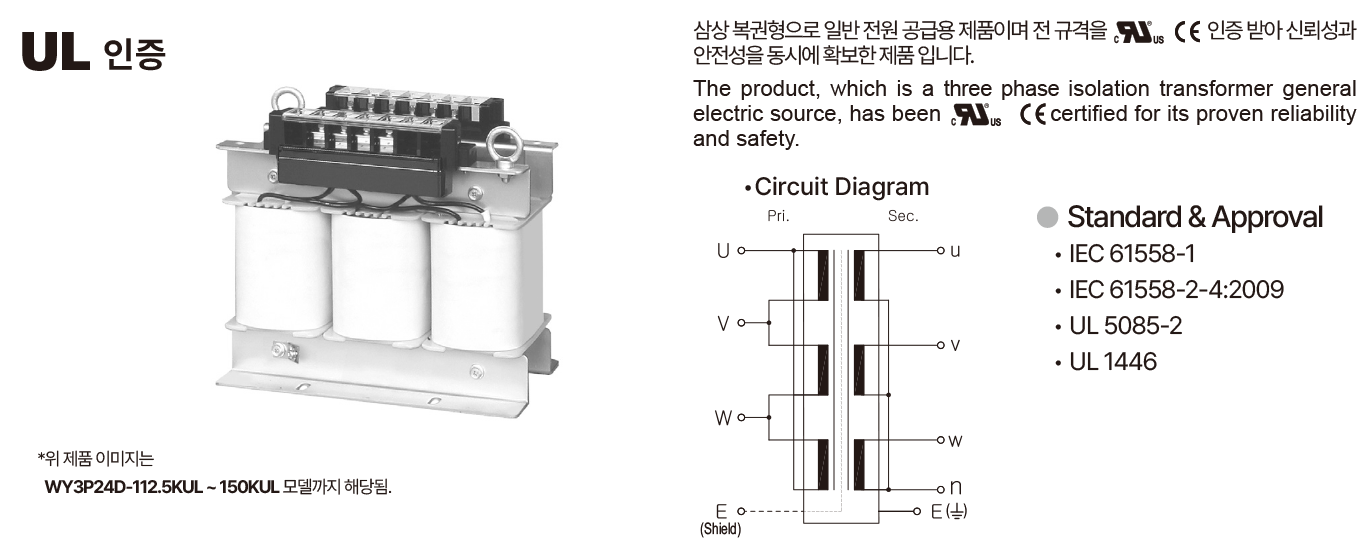

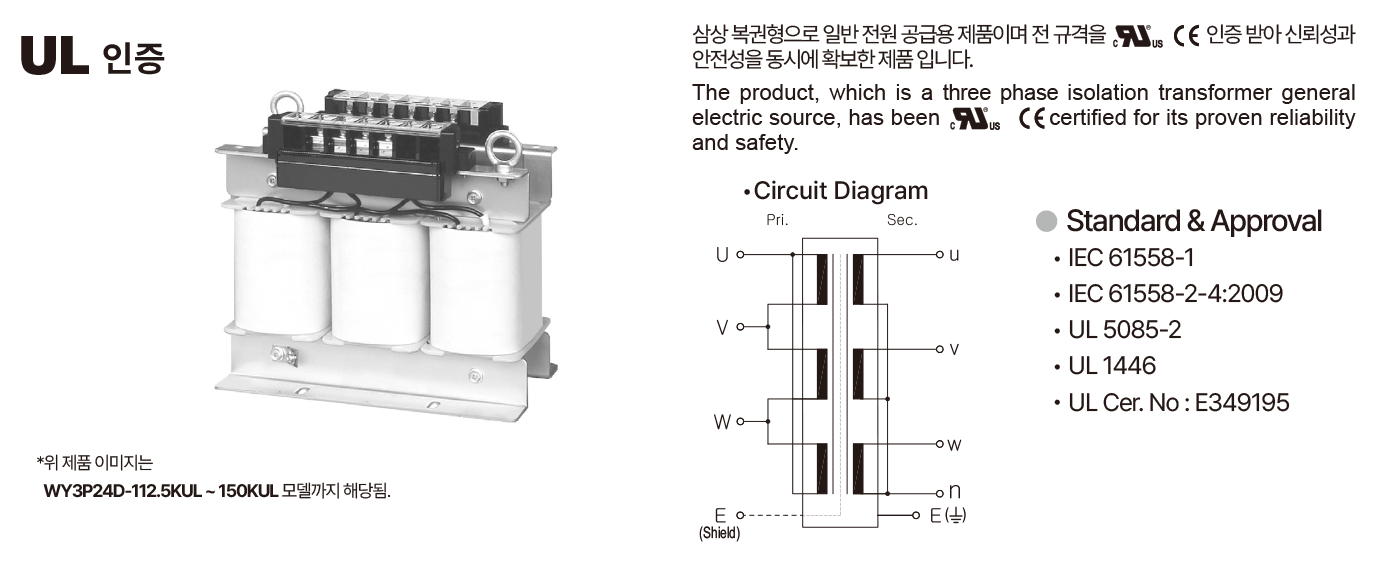

Support servicesSpecifications and Features*제품 이미지는 WY3P24D-112.5KUL ~ 150KUL 모델까지 해당됨.
Quote Contact
PDF
CAD
3D CAD
Print
