Product
- TransformerHi & Low Voltage ReactorSmart ReactorNCTSolid State RelayHeat sinkSVC Power Controller Thyristor UnitNoise FilterSMPS-Power SupplyBattery ChargerPassive Harmonic FilterMicro Surge FilterSine-Wave FilterZero Hamonics FilterMedium Voltage (CT) Medium Voltage (VT,EVT) Combined CT & VT (M.O.F)Epoxy Insulator (MV/HV)RectifierLine Potential & Temperature SignallerCurrent Transformer, Voltage TransformerDigital Power Protective RelayGround Fault RelayZero-Current TransEarth Leakage Detector, Earth Leakage RelayPanel Board MetersSurge Protective DeviceShunt FanMetal Stamped Items
-
-

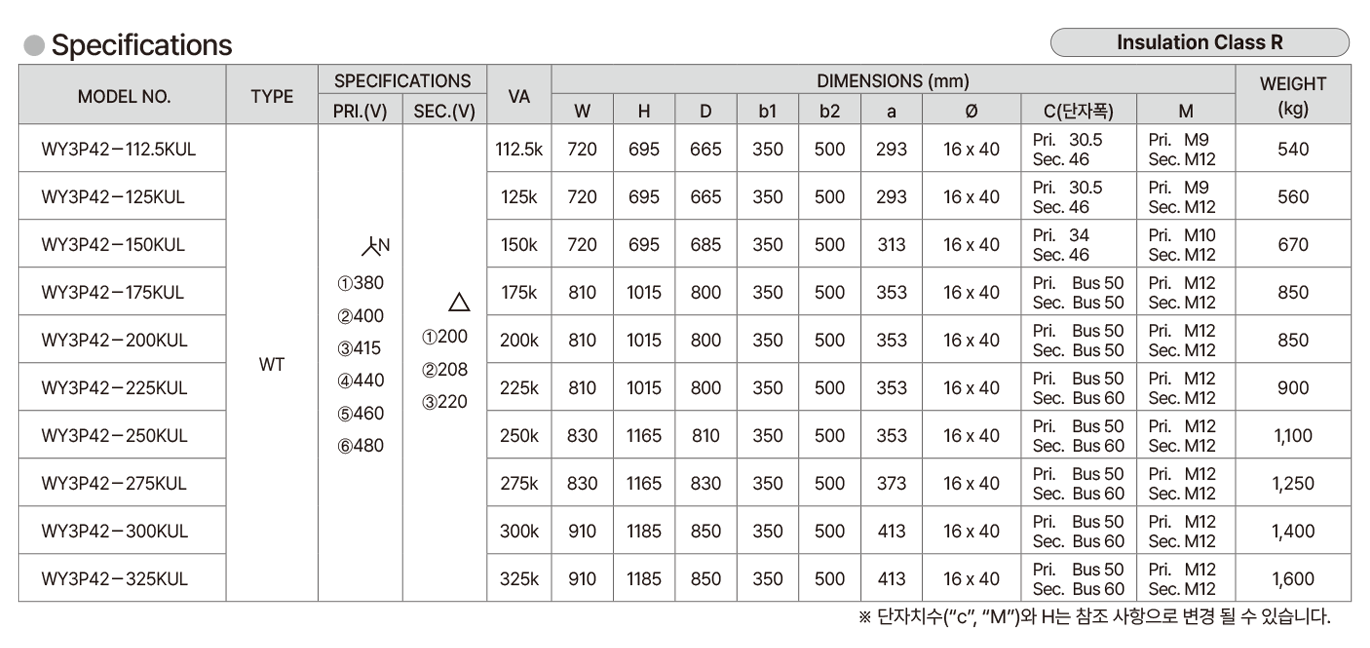

Model No WY3P42-112.5KUL WY3P42-125KUL WY3P42-150KUL WY3P42-175KUL WY3P42-200KUL WY3P42-225KUL WY3P42-250KUL WY3P42-275KUL WY3P42-300KUL WY3P42-325KUL TYPE 3Phase UL Type Transformer Certification UL Rating Input 380VAC 400VAC 415VAC 440VAC 460VAC 480VAC Output 200VAC 208VAC 220VAC Capacity 112.5kVA~325kVA

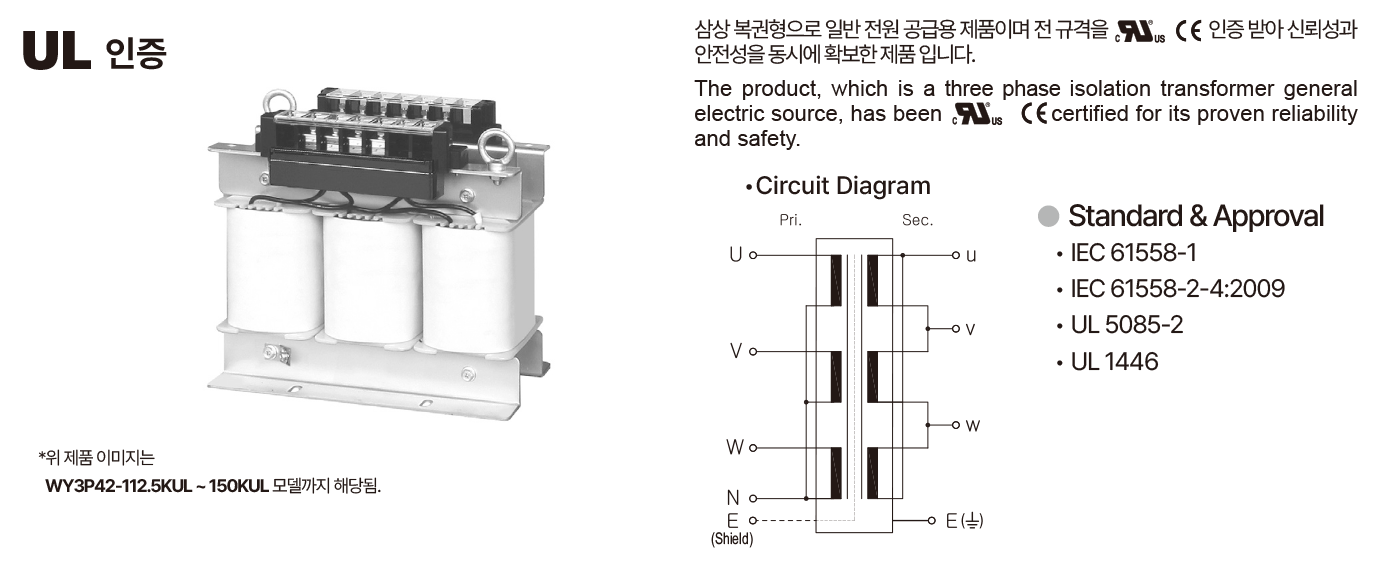

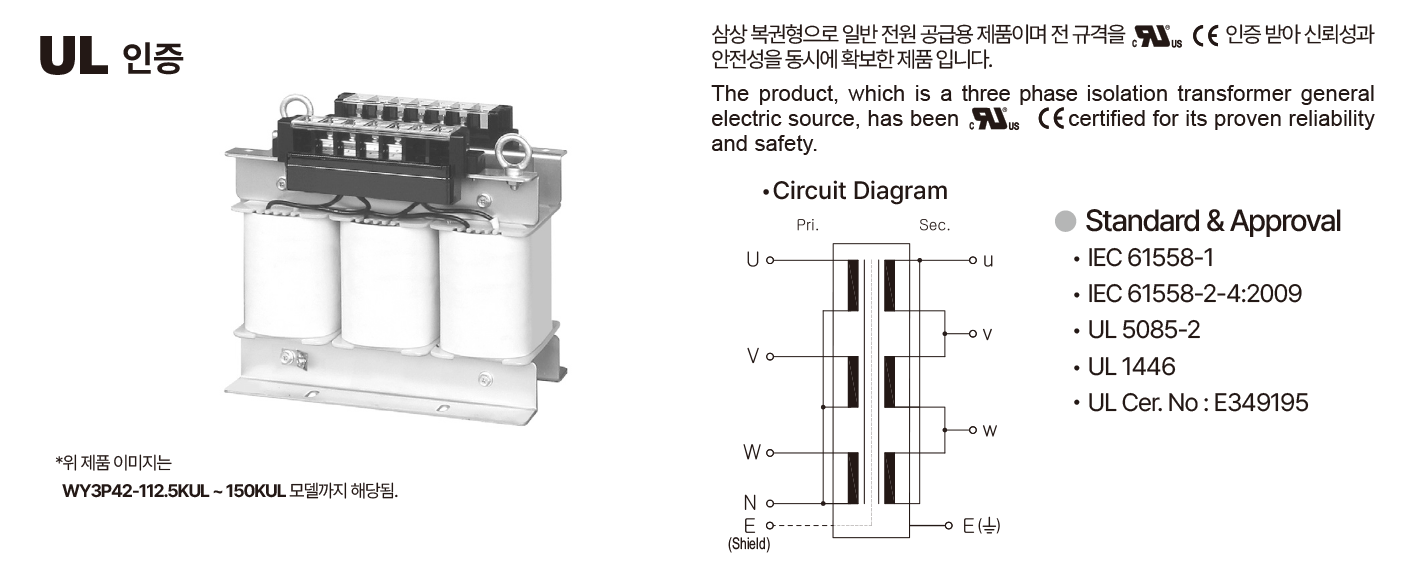

Support servicesSpecifications and Features*제품 이미지는 WY3P42-112.5KUL ~ 150KUL 모델까지 해당됨.
