GlOBAL LEADER that provide a total solution of Electric Power Industry.WOONYOUNG

홈으로

>Product>

Model No	WY41-7.5KUL WY41-10KUL WY41-15KUL WY41-20KUL WY41-30KUL
TYPE	단상, UL인증 트랜스포머
Certification	UL
Rating
Input	380VAC 400VAC 415VAC 440VAC 460VAC 480VAC
Output	100VAC 110VAC 115VAC 120VAC
Capacity	7.5kVA~30kVA

Support services

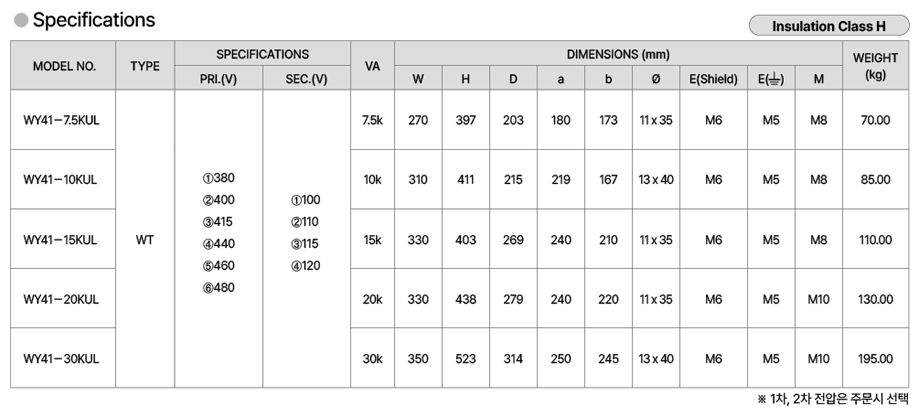

Specifications and Features

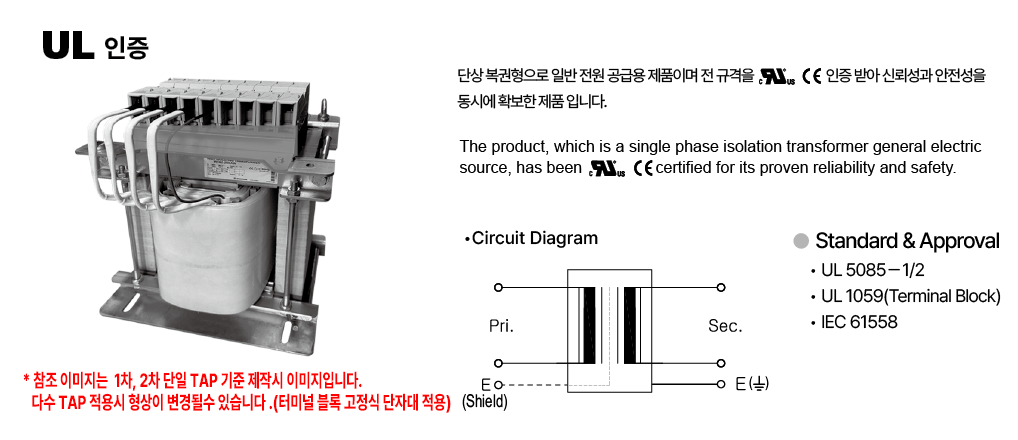

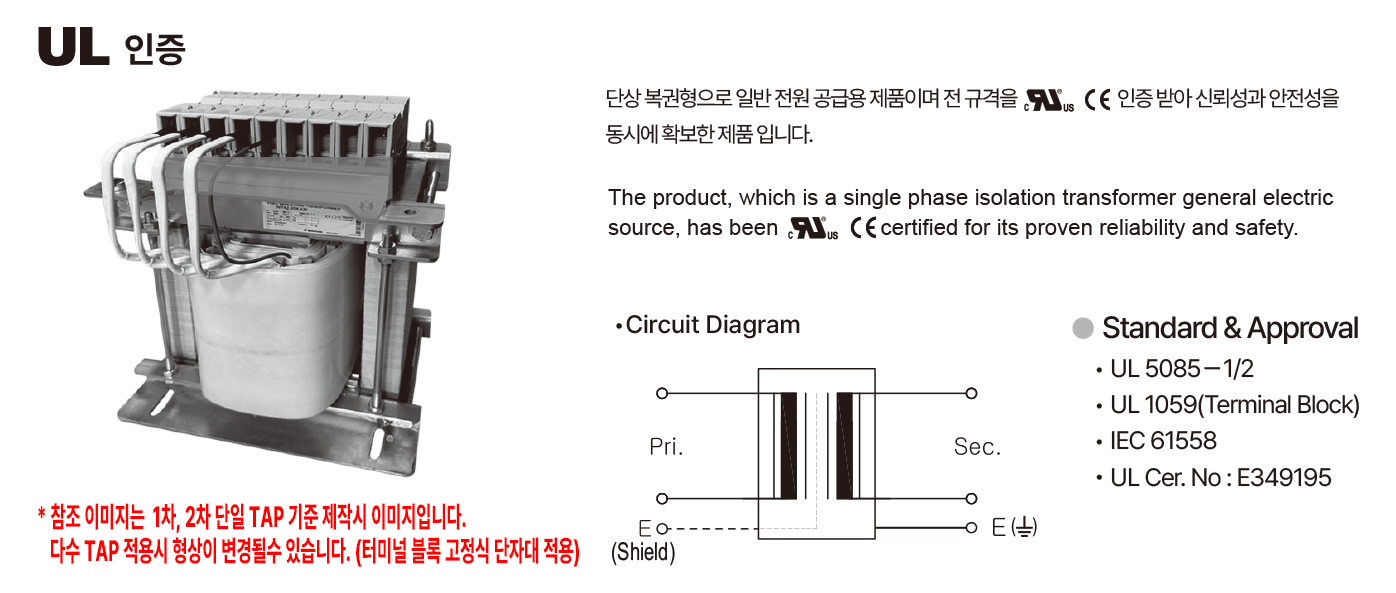

* 참조 이미지는 1차, 2차 단일 TAP 기준 제작시 이미지입니다.
다수 TAP 적용시 형상이 변경될수 있습니다. (터미널 블록 고정식 단자대 적용)

전압 선택 적용 예 :

PRI.(V) - 380V / SEC.(V) - 110V

PRI.(V) - 380V / SEC.(V) - 120V

PRI.(V) - 440V / SEC.(V) - 100V

PRI.(V) - 440V / SEC.(V) - 120V

※ 단자규격은 상황에따라 변동될수있음.

※ Specifications may change depending on circumstances.
