GlOBAL LEADER that provide a total solution of Electric Power Industry.WOONYOUNG

홈으로

>Product>

Model No	WY42-7.5KUL WY42-10KUL WY42-15KUL WY42-20KUL WY42-30KUL
TYPE	단상, UL인증 트랜스포머
Certification	UL
Rating
Input	380VAC 400VAC 415VAC 440VAC 460VAC 480VAC
Output	200VAC 208VAC 220VAC 230VAC 240VAC
Capacity	7.5kVA~30kVA

Support services

Specifications and Features

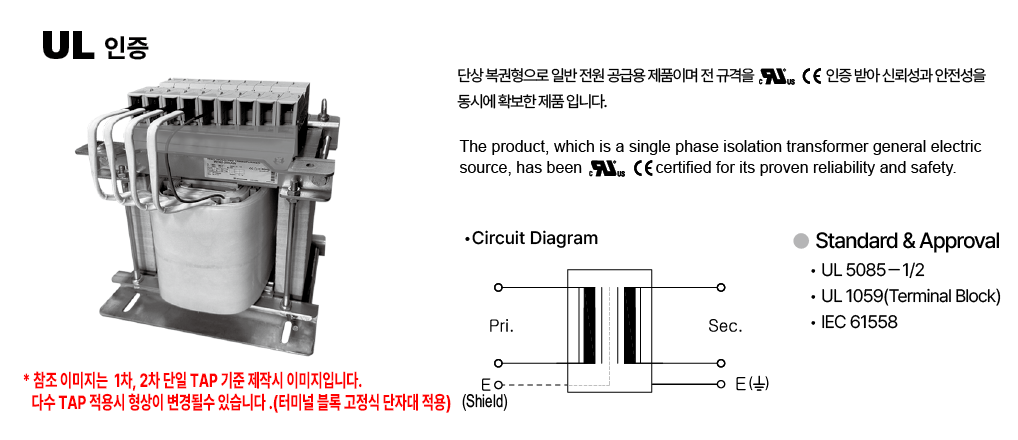

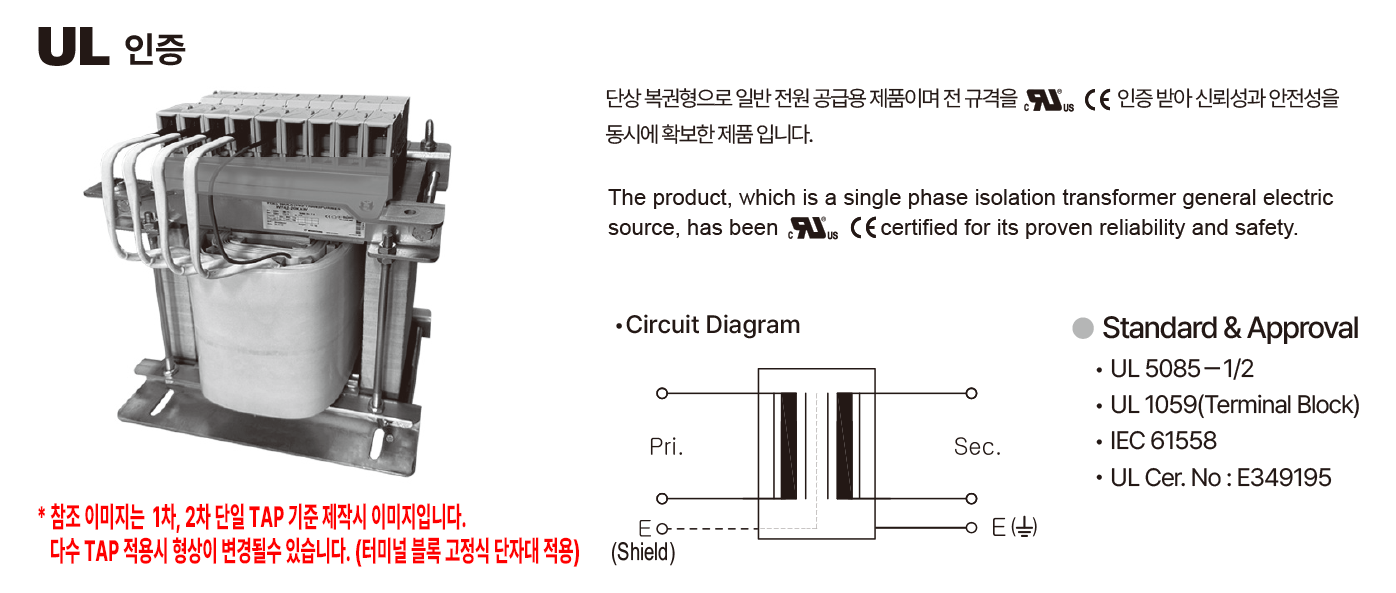

* 참조 이미지는 1차, 2차 단일 TAP 기준 제작시 이미지입니다.
다수 TAP 적용시 형상이 변경될수 있습니다. (터미널 블록 고정식 단자대 적용)

전압 선택 적용 예 :

PRI.(V) - 380V / SEC.(V) - 208V

PRI.(V) - 380V / SEC.(V) - 220V

PRI.(V) - 440V / SEC.(V) - 200V

PRI.(V) - 440V / SEC.(V) - 230V

※ 단자규격은 상황에따라 변동될수있음.

※ Specifications may change depending on circumstances.
