Model No	WY3P44D-20KUL WY3P44D-30KUL WY3P44D-40KUL WY3P44D-50KUL WY3P44D-60KUL WY3P44D-75KUL WY3P44D-100KUL

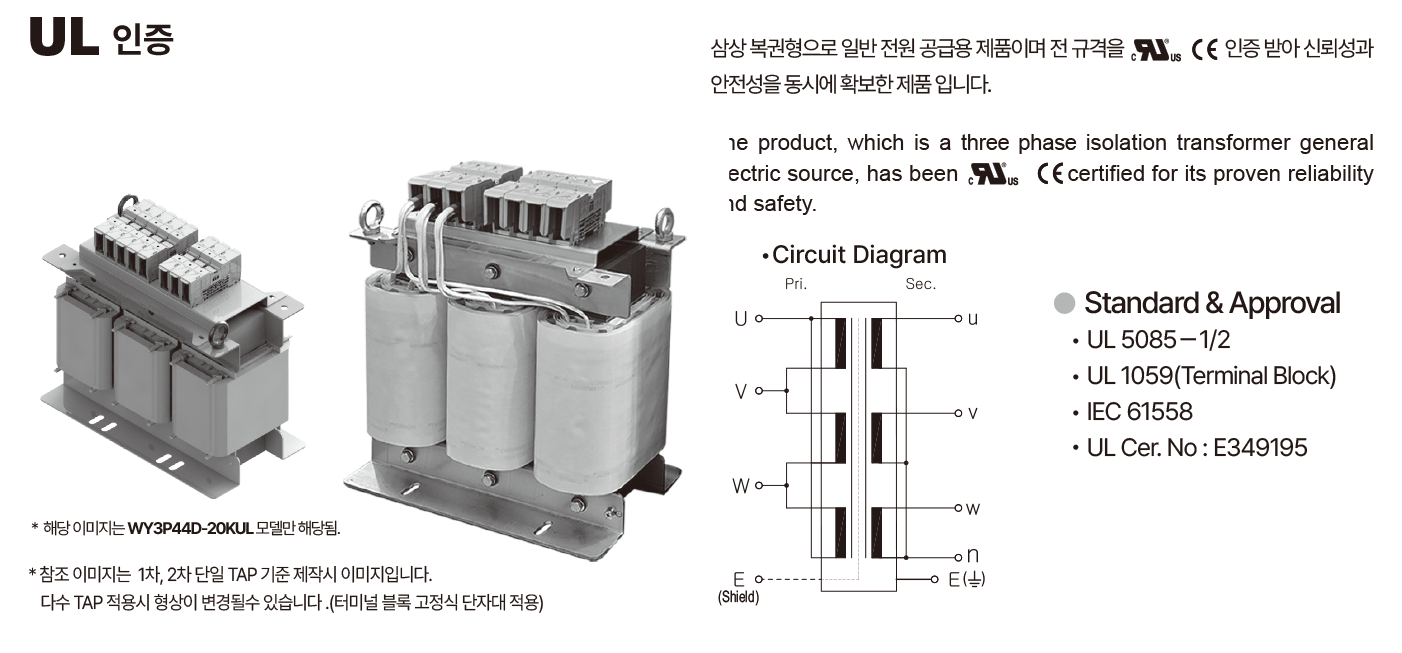

TYPE	삼상, UL인증 트랜스포머
Certification	cUL
Rating
Input	380VAC 400VAC 415VAC 440VAC 460VAC 480VAC
Output	380VAC 400VAC 415VAC 440VAC 460VAC 480VAC
Capacity	20kVA~100kVA

Support services

Specifications and Features

전압 선택 적용 예 :

PRI.(V) - 380V / SEC.(V) - 380V

PRI.(V) - 440V / SEC.(V) - 380V

PRI.(V) - 440V / SEC.(V) - 400V

PRI.(V) - 440V / SEC.(V) - 415V

PRI.(V) - 480V / SEC.(V) - 380V

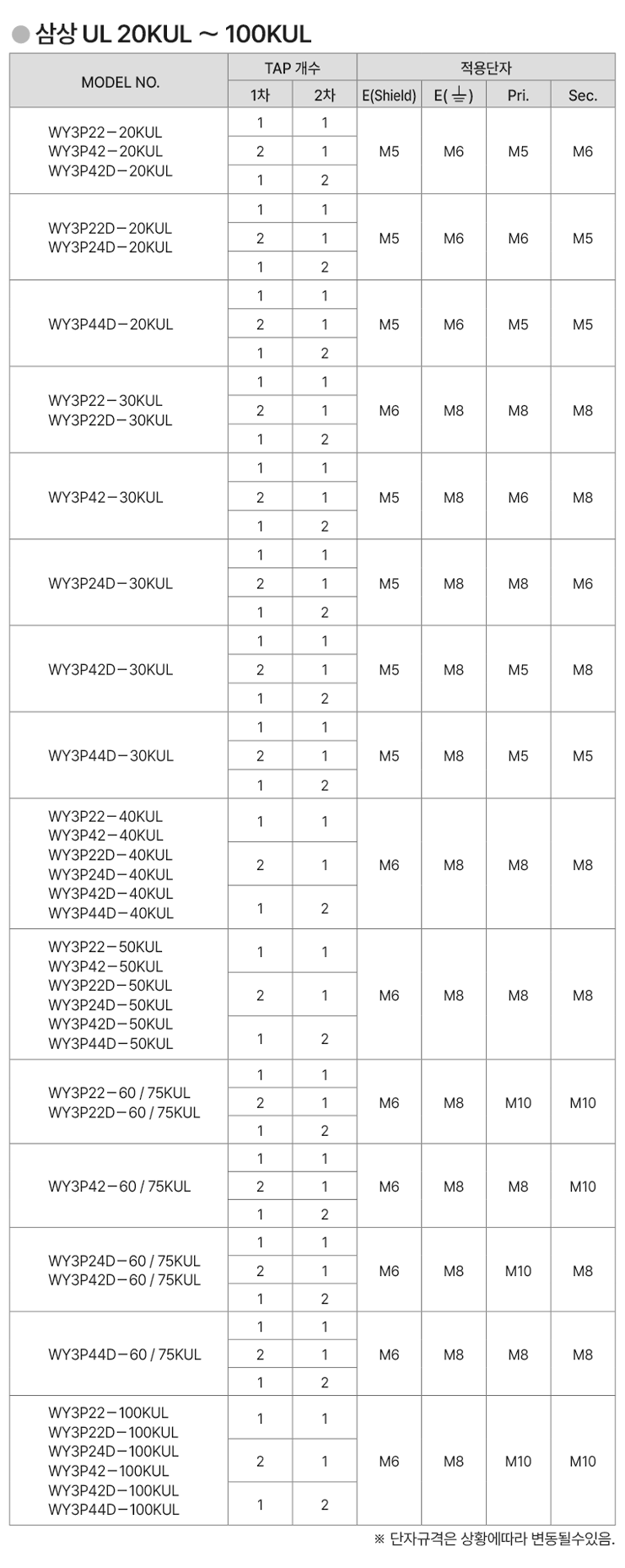

단자규격은 상황에따라 변동될수있음.

※ Specifications may change depending on circumstances.
