Model No	WY3P44-112.5KUL WY3P44-125KUL WY3P44-150KUL WY3P44-175KUL WY3P44-200KUL WY3P44-225KUL WY3P44-250KUL WY3P44-275KUL WY3P44-300KUL WY3P44-325KUL
TYPE	3Phase UL Type Transformer

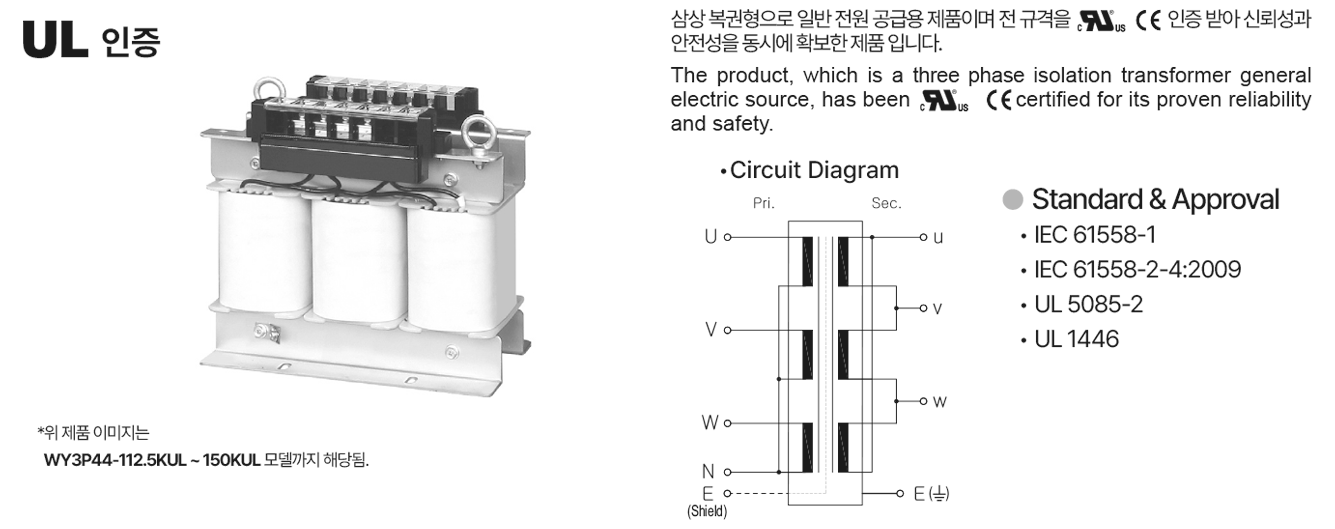

Certification	UL
Rating
Input	380VAC 400VAC 415VAC 440VAC 460VAC 480VAC
Output	380VAC 400VAC 415VAC 440VAC 460VAC 480VAC
Capacity	112.5kVA~325kVA

Support services

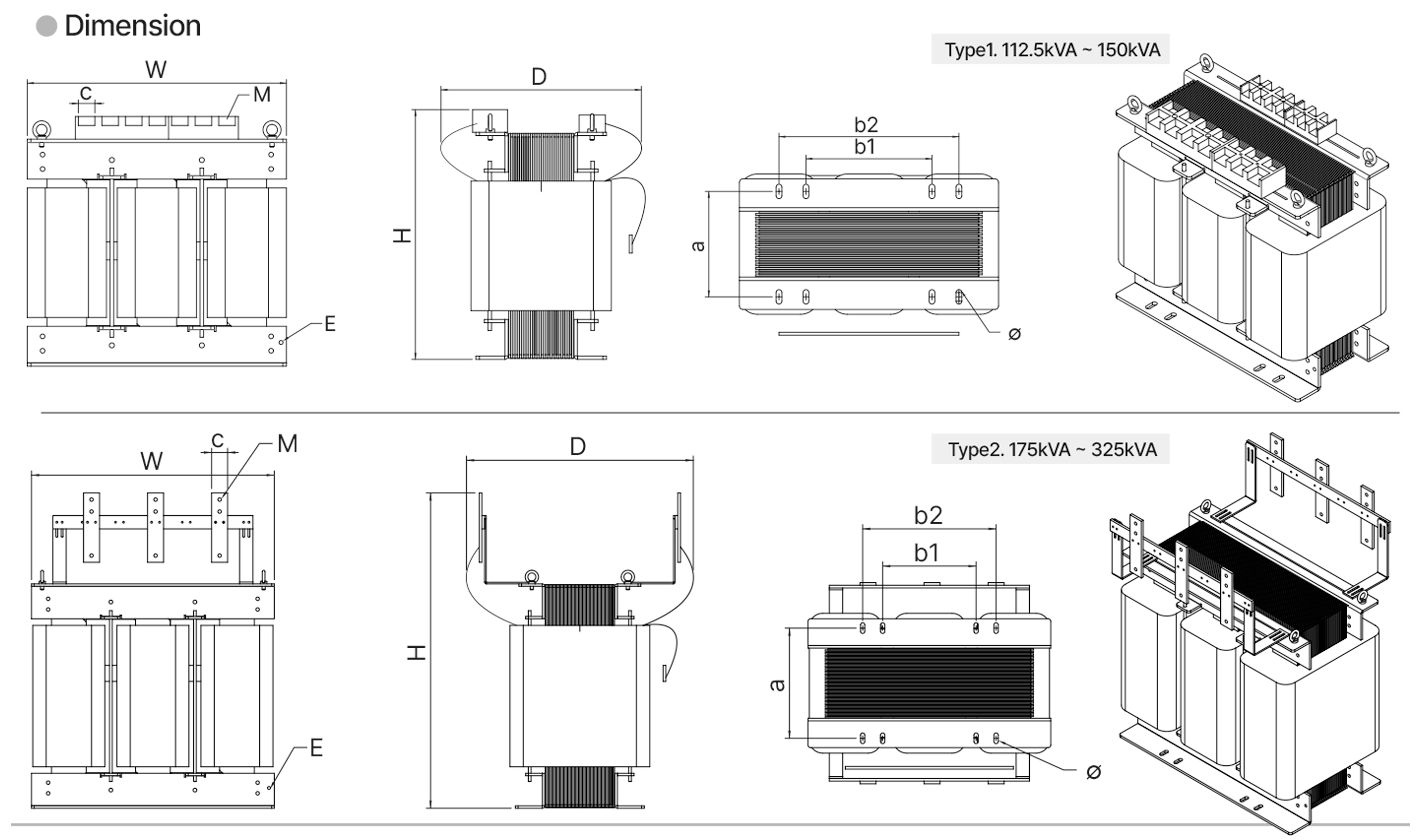

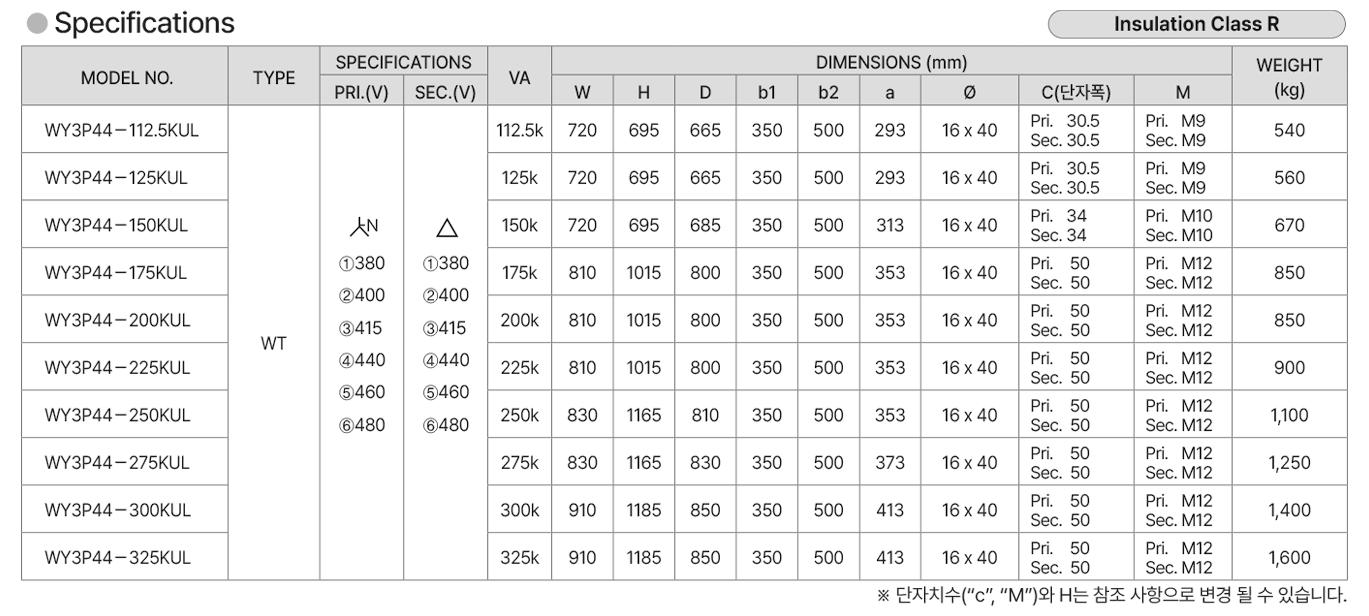

Specifications and Features

*제품 이미지는 WY3P44-112.5KUL ~ 150KUL 모델까지 해당됨.
