GlOBAL LEADER that provide a total solution of Electric Power Industry.WOONYOUNG

홈으로

>Product>

Model No	WY3P44D-112.5KUL WY3P44D-125KUL WY3P44D-150KUL WY3P44D-175KUL WY3P44D-200KUL WY3P44D-225KUL WY3P44D-250KUL WY3P44D-275KUL WY3P44D-300KUL WY3P44D-325KUL

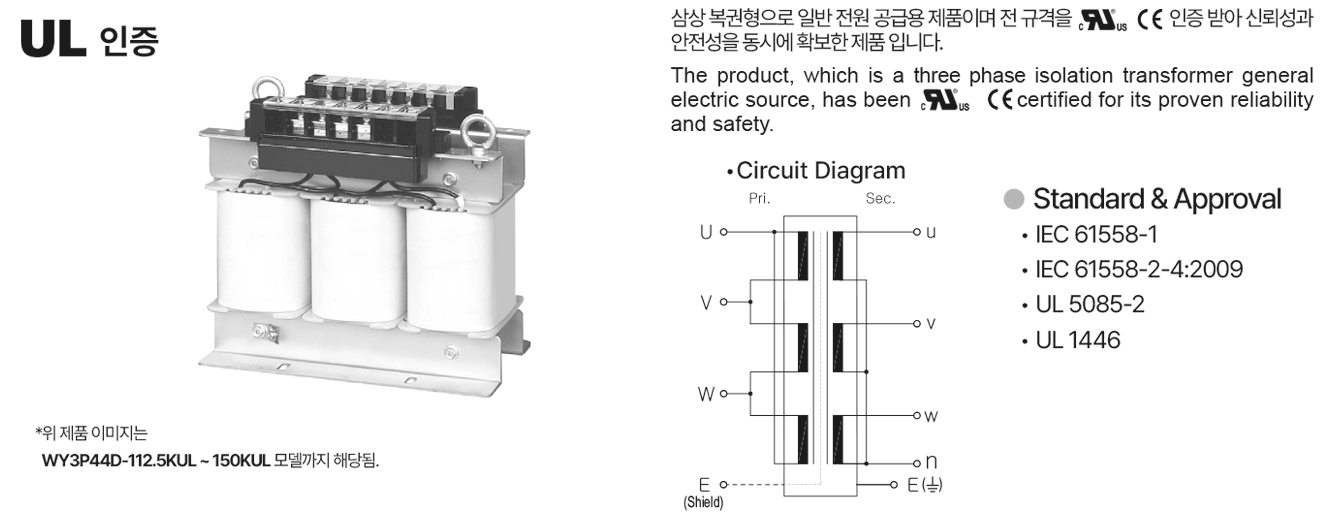

TYPE	3Phase UL Type Transformer
Certification	UL
Rating
Input	380VAC 400VAC 415VAC 440VAC 460VAC 480VAC
Output	380VAC 400VAC 415VAC 440VAC 460VAC 480VAC
Capacity	112.5kVA~325kVA

Support services

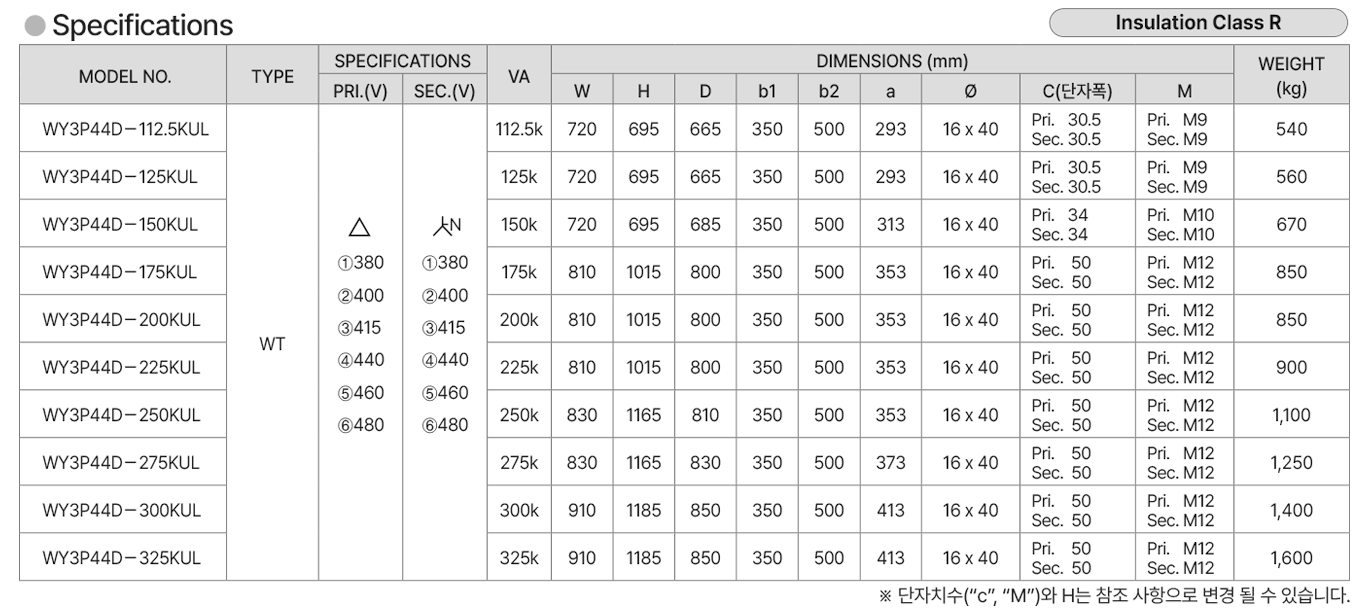

Specifications and Features

*제품 이미지는 WY3P42-112.5KUL ~ 150KUL 모델까지 해당됨.
