3P, Transformer
Model No WY3P-100W WY3P-200W WY3P-300W WY3P-500W WY3P-1KW WY3P-1.5KW WY3P-2KW WY3P-3KW WY3P-5KW WY3P-7.5KW WY3P-10KW WY3P-15KW WY3P-20KW
TYPE 3Phase - W3PT type
Certification CE
Rating -
Input 380-440
Output 220
Capacity 100VA~20kVA
Support services

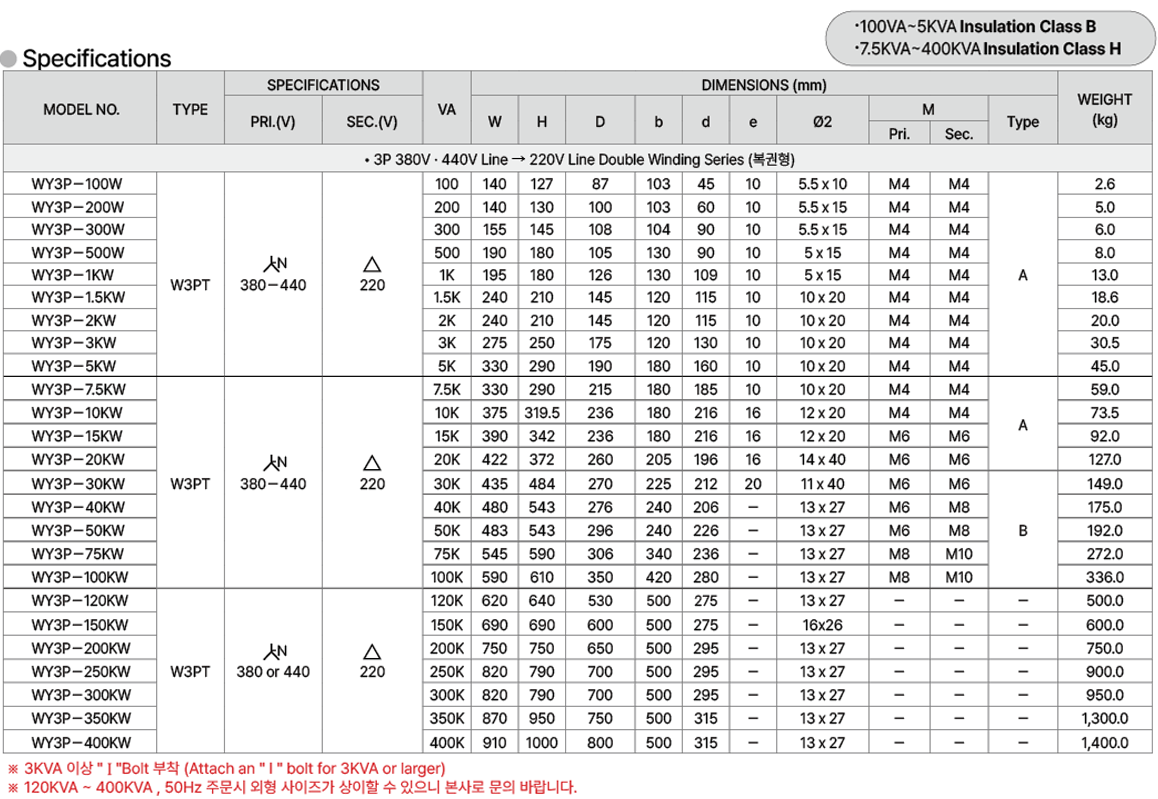

Specifications and Features

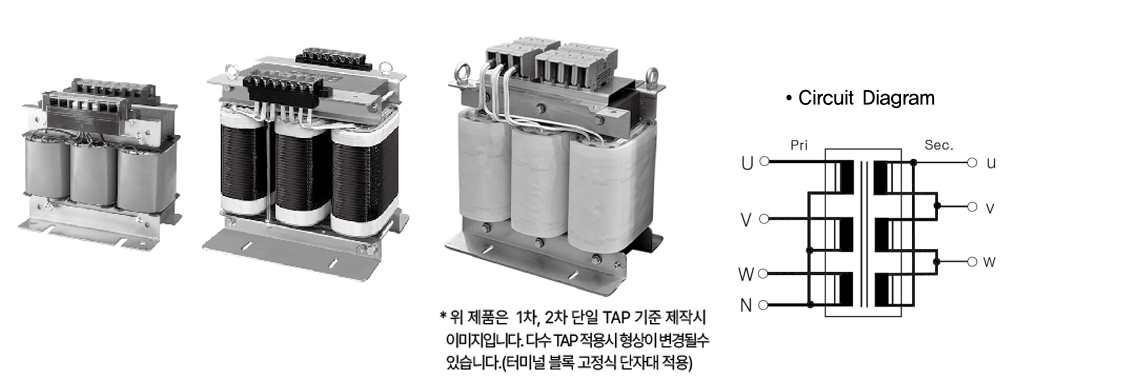

It is 3 phase double winding type.

Input voltage is AC380V, 440V (Y connection), output voltage is AC220V delta connection. (DY11)

It has terminal block system and Insulation class is B.

Insulation class F and H is available.

All models acquired CE certification.


Over 3kVA : " I " Bolt is attached
