홈으로>Product>Transformer

Product

Transformer

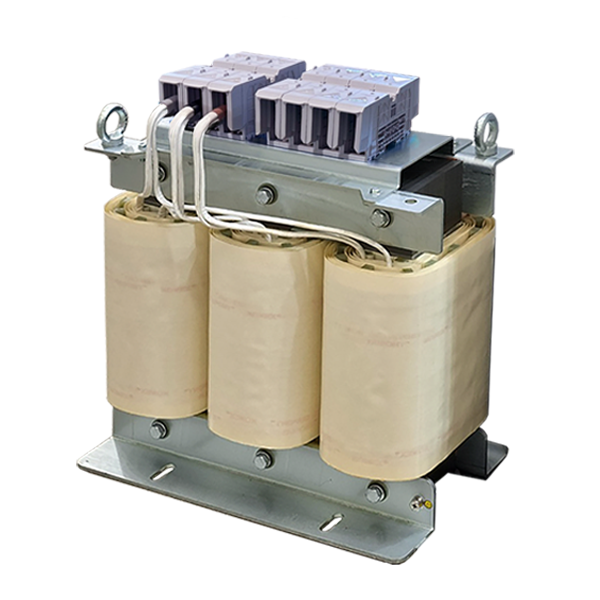

3P, Transformer
확대
Model No WY3P-30KW WY3P-40KW WY3P-50KW WY3P-75KW WY3P-100KW WY3P-150KW
TYPE 3Phase - W3PT type
Certification CE
Rating
Input 380-440
Output 220
Capacity 30kVA~150kVA
Support services

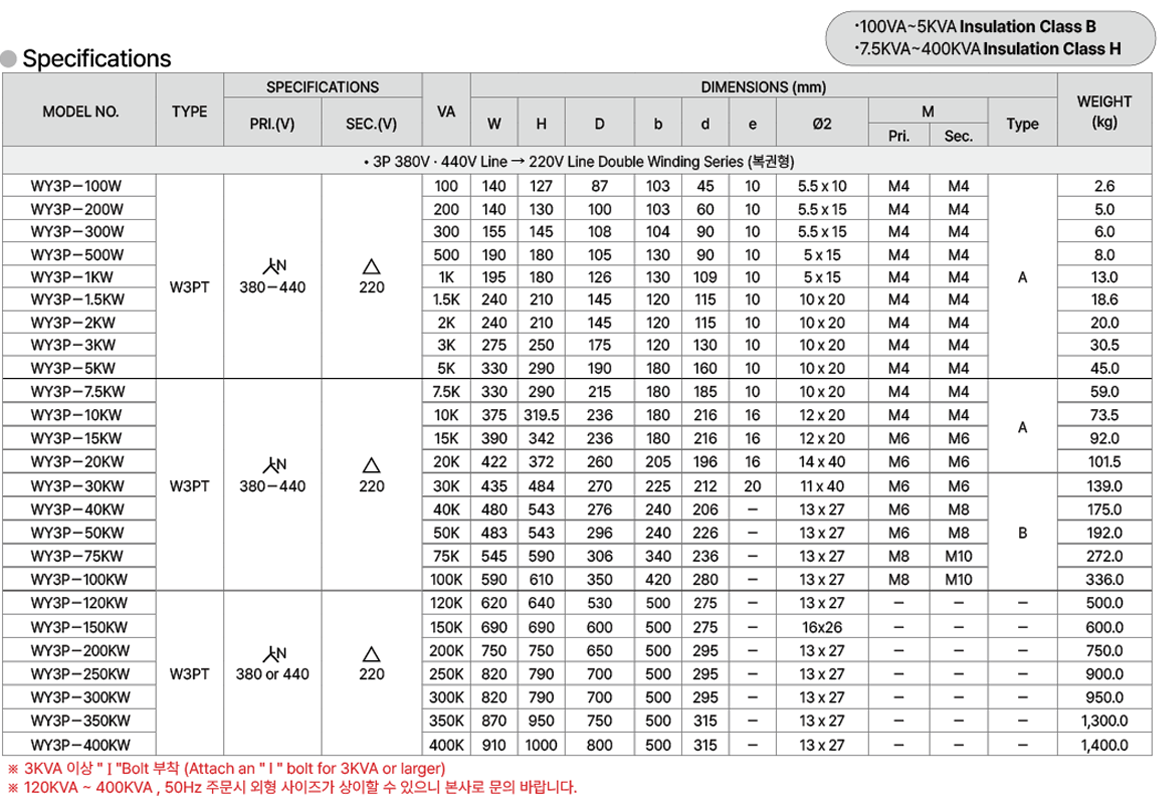

Specifications and Features

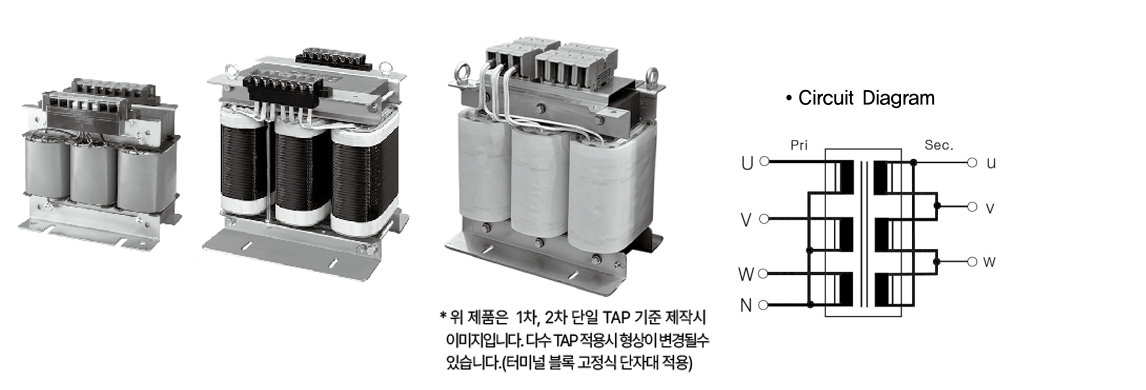

It is 3 phase double winding type.

Input voltage is AC380V, 440V (Y connection), output voltage is AC220V delta connection. (DY11)


It has terminal block system and Insulation class is B.

Insulation class F and H is available.

All models acquired CE certification.



Over 3kVA : " I " Bolt is attached
