홈으로>Product>SMPS-Power Supply


SMPS-Power Supply
Model No WYSP-50S12D WYSP-50S24D WYSP-50S48D
TYPE (UL) DIN-Rail형 1-Channel
Certification UL
Input 100VAC~240VAC
Output 12V 24V 48V
Capacity 50W
Support services

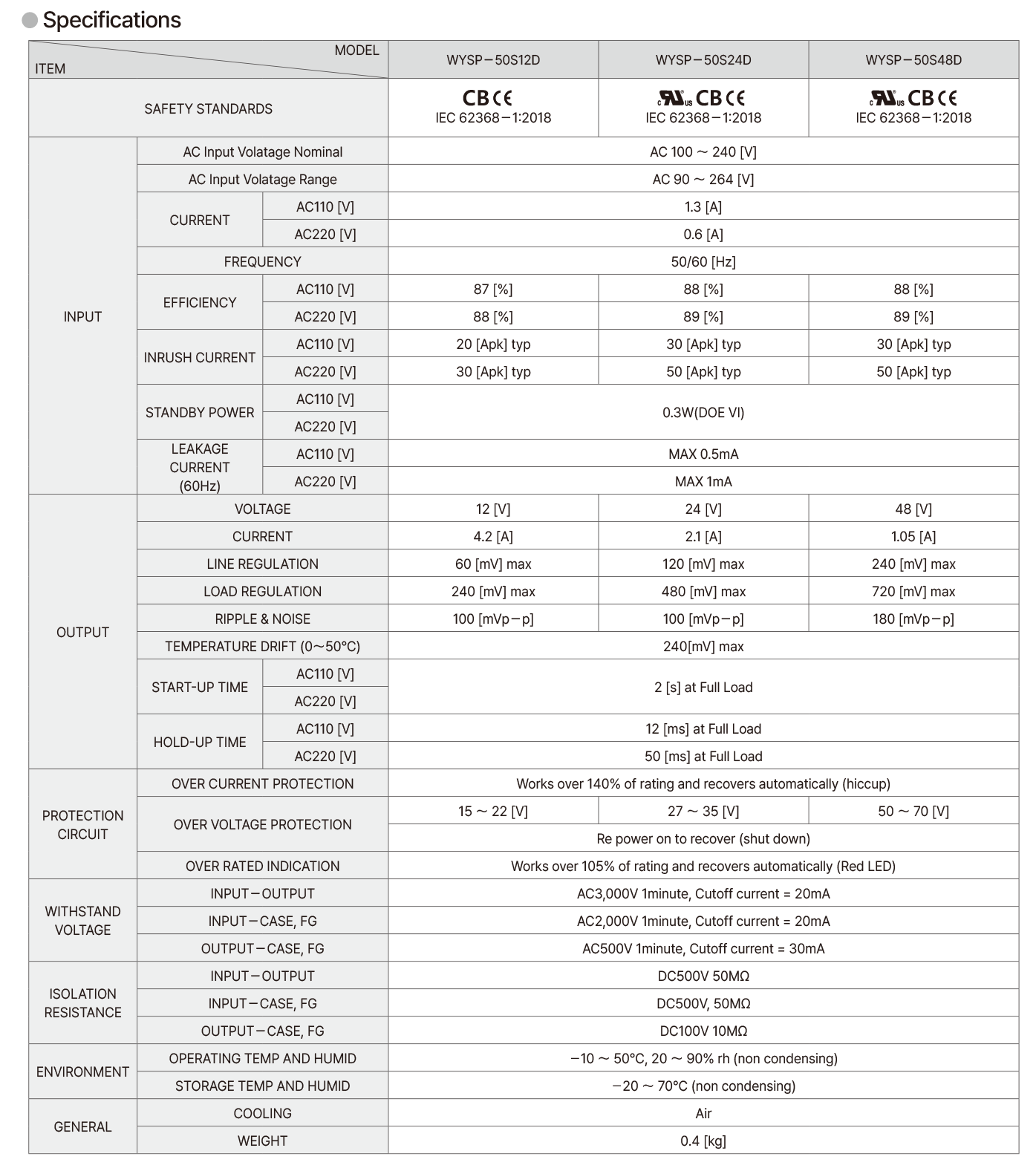

Specifications and Features

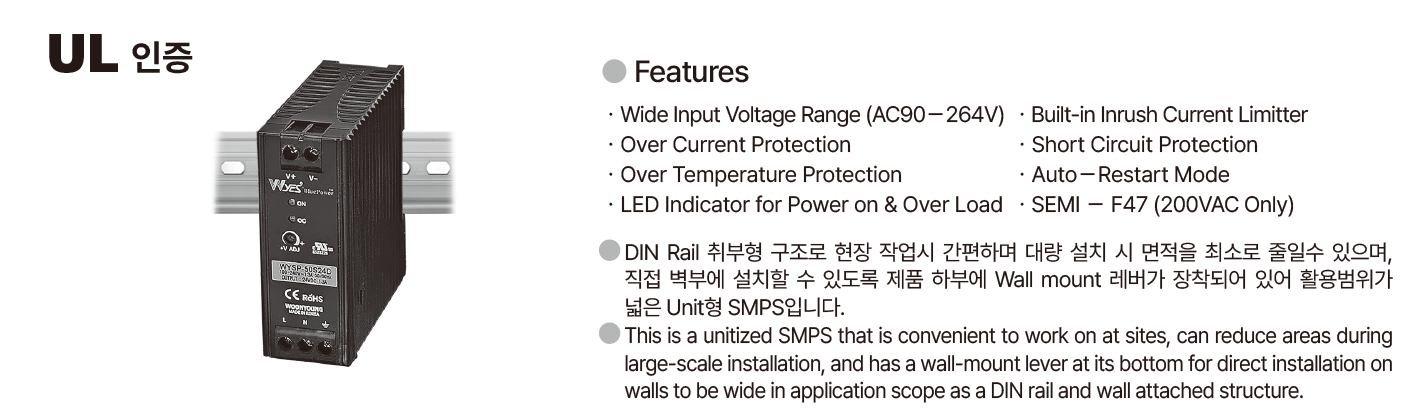

  50W 1-Channel
  ㆍDIN Rail 취부형 구조로 현장 작업시 간편하며 대량 설치 시 면적을 최소로 줄일수 있으며, 직접 벽부에 설치할 수 있도록 제품 하부에 Wall mount 레버가 장착되어 있어 활용범위가 넓은 Unit형 SMPS입니다.

   ㆍWide Input Voltage Range (AC90-264V)
   ㆍOver Current Protection ㆍShort Circuit Protection
   ㆍOver Temperature Protection
