홈으로>Product>SMPS-Power Supply


SMPS-Power Supply
Model No WYSP-300S12DP WYSP-300S24DP WYSP-300S48DP
TYPE (UL) DIN-Rail형 1-Channel
Input 110VAC 220VAC Free_Voltage
Output 12V 24V 48V
Capacity 300W
Support services

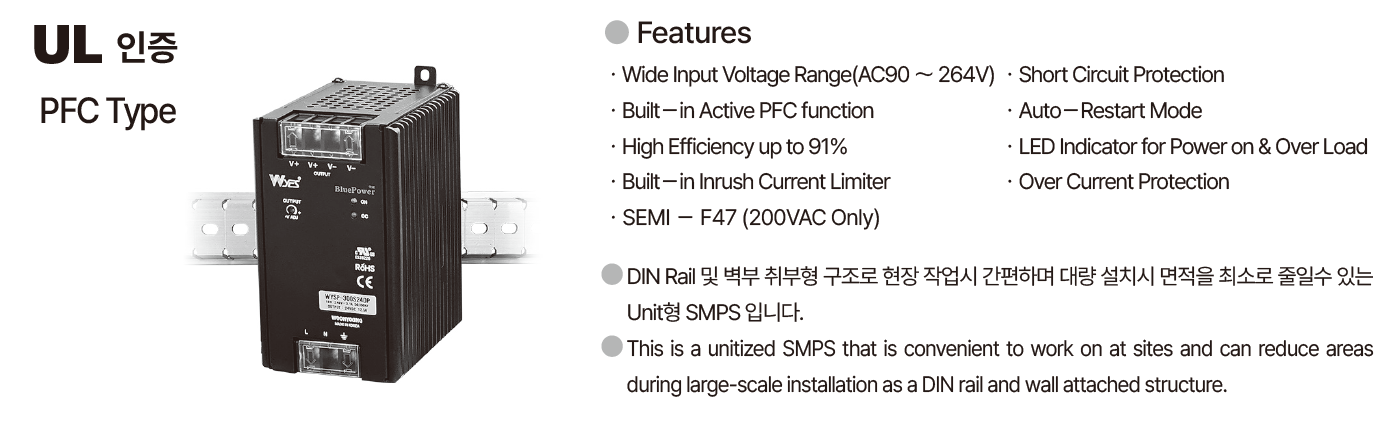

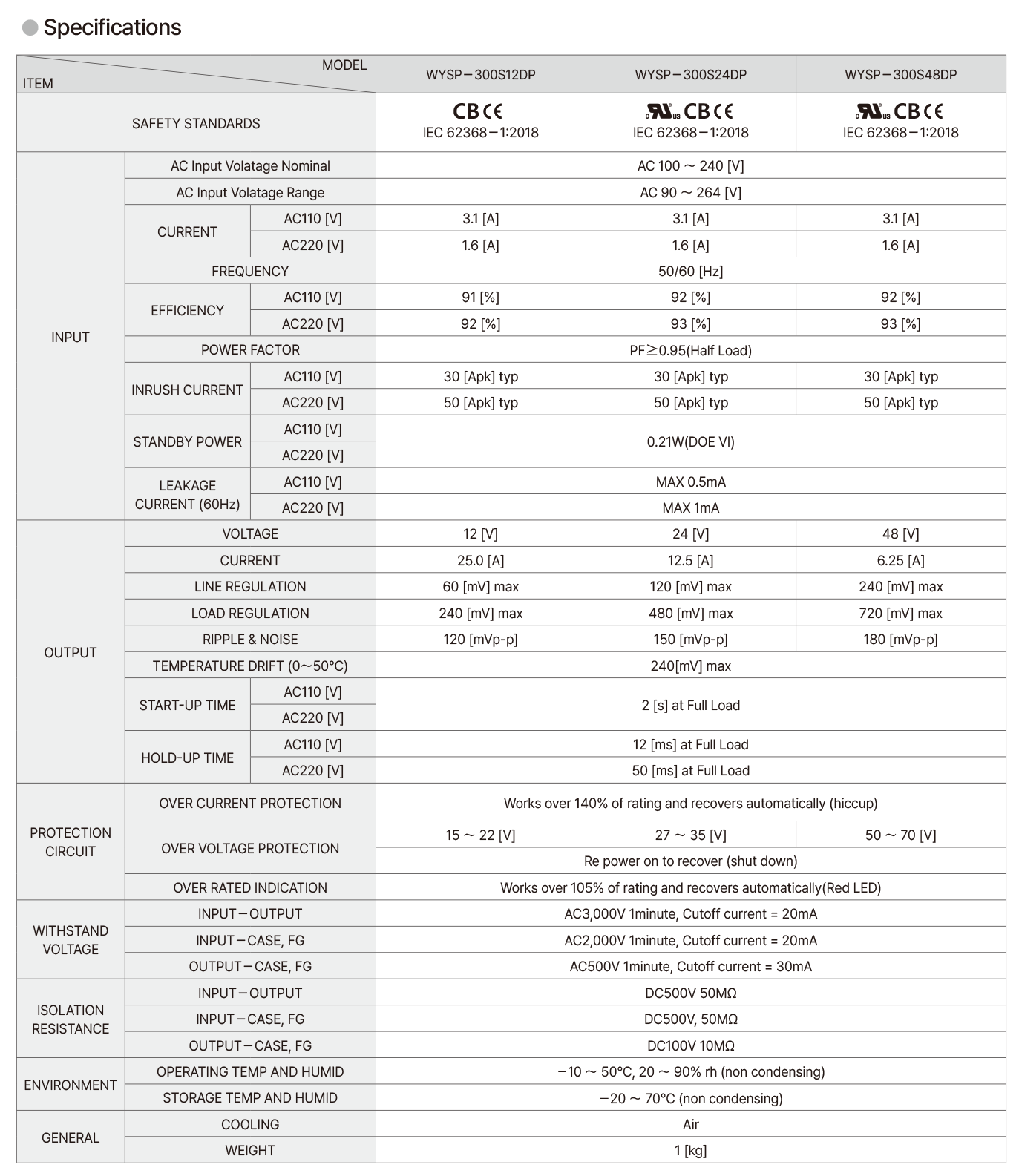

Specifications and Features

300W 1-Channel
  . DIN Rail 취부형 구조로 현장 작업시 간편하며 대량 설치시 면적을 최소로 줄일수 있는
    Unit형 SMPS 입니다.

  . Wide Input Voltage Range(AC90~264V)  .Built-in Inrush Current Limitter
  . Over Current Protection                      .Short Circuit Protection
  . Over Temperature Protection               . Auto-Restart Mode

 Built-in PFC
