홈으로>Product>SMPS-Power Supply


SMPS-Power Supply
Model No WYSP-75S12DP WYSP-75S24DP WYSP-75S48DP WYSP-100S12DP WYSP-100S24DP WYSP-100S48DP
TYPE DIN-Rail type 1-Channel
Input 110VAC 220VAC Free_Voltage
Output 12V 24V 48V
Capacity 75W 100W
Support services

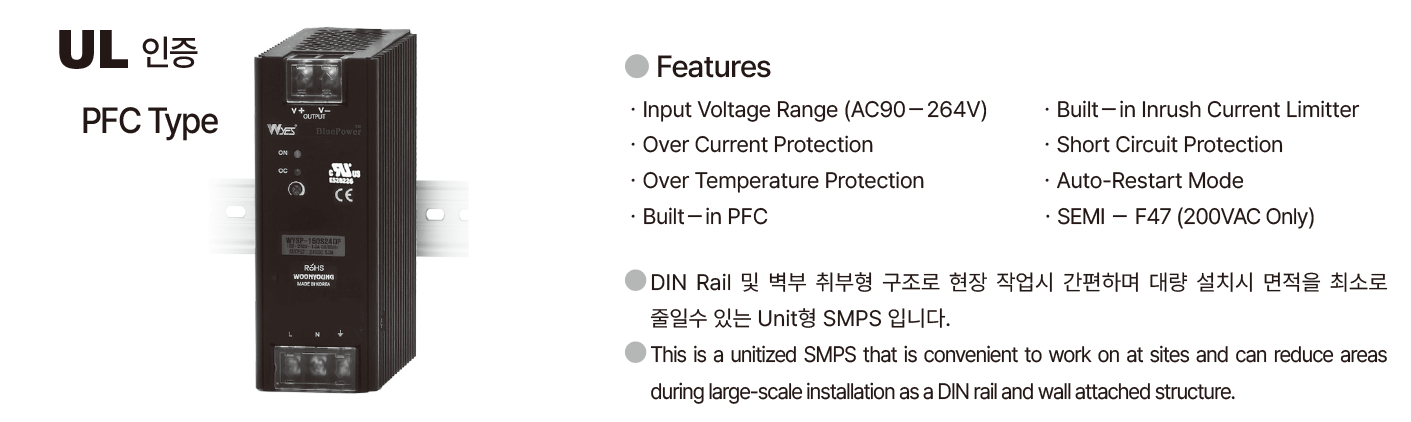

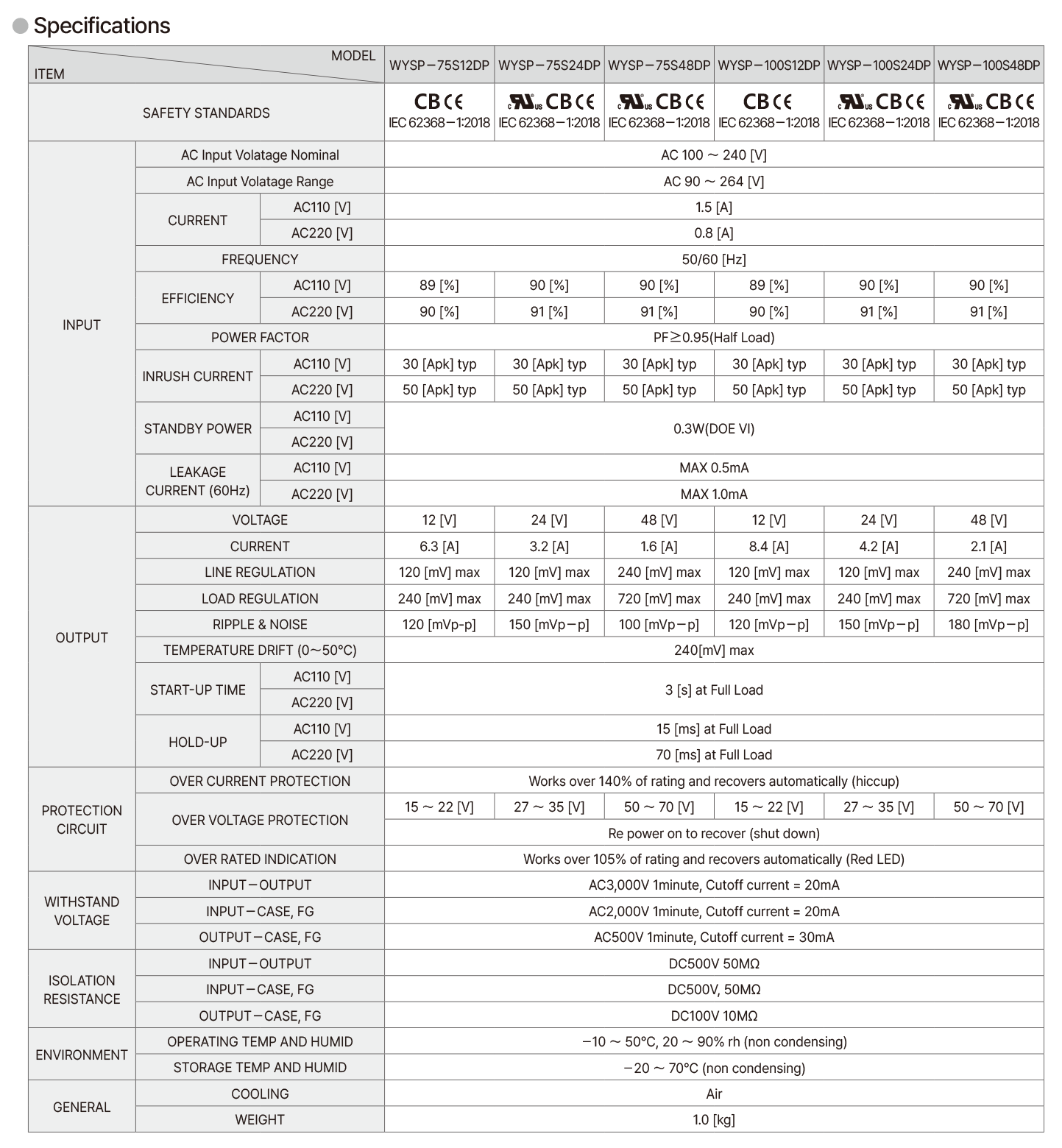

Specifications and Features

75~100W 1-Channel
It is the SMPS of unit type that minimizes the area during mass installation and it
is simple during work becouse of the structure of DIN Rail type.
ㆍWide Input Voltage Range (AC90-264V) ㆍBuilt-in Inrush Current Limitter
ㆍOver Current Protection ㆍShort Circuit Protection
ㆍOver Temperature Protection ㆍAuto-Restart Mode
ㆍBuilt-in PFC

PFC Type
