홈으로>Product>SMPS-Power Supply

Product

SMPS-Power Supply
(10~500W)
확대
Model No WYSP-10S05DB WYSP-10S12DB WYSP-10S24DB WYSP-20S12DB WYSP-20S24DB
TYPE DIN-Rail type 1-Channel
Certification
Rating
Input 110VAC 220VAC Free_Voltage
Output 5V 12V 24V
Capacity 10W 20W
Support services

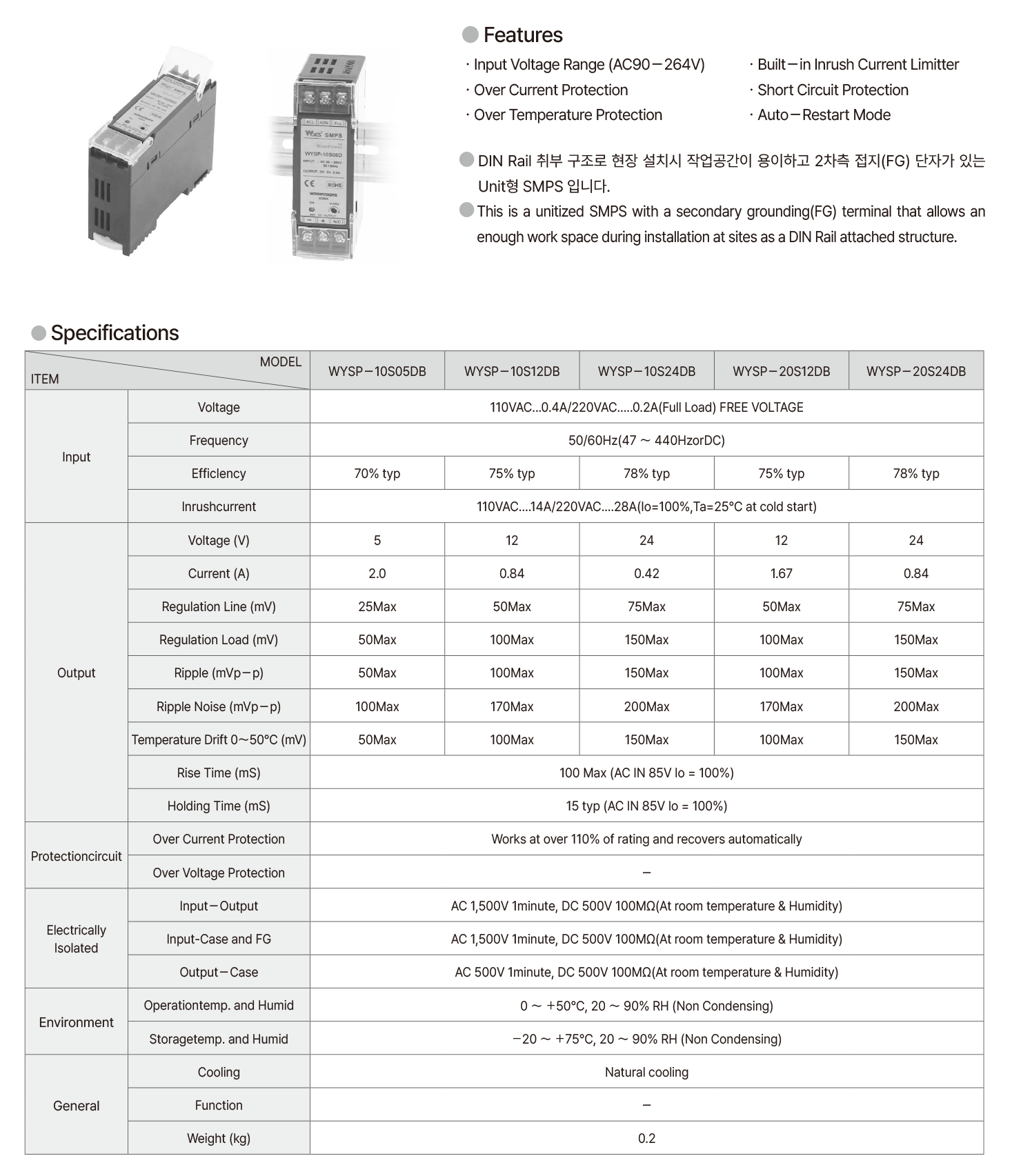

Specifications and Features

This is a unitized SMPS with a secondary grounding(FG) terminal that allows an enough work space during installation at sites as a DIN Rail attached structure.

   ㆍWide Input Voltage Range (AC90-264V)
   ㆍOver Current Protection
   ㆍShort Circuit Protection
   ㆍOver Temperature Protection
