홈으로>Product>SMPS-Power Supply


SMPS-Power Supply
Model No WYSP-400S24DP WYSP-400S48DP WYSP-500S24DP WYSP-500S48DP
TYPE (UL) DIN-Rail type 1-Channel
Input 110VAC 220VAC Free_Voltage
Output 24V 48V
Capacity 400W 500W
Support services

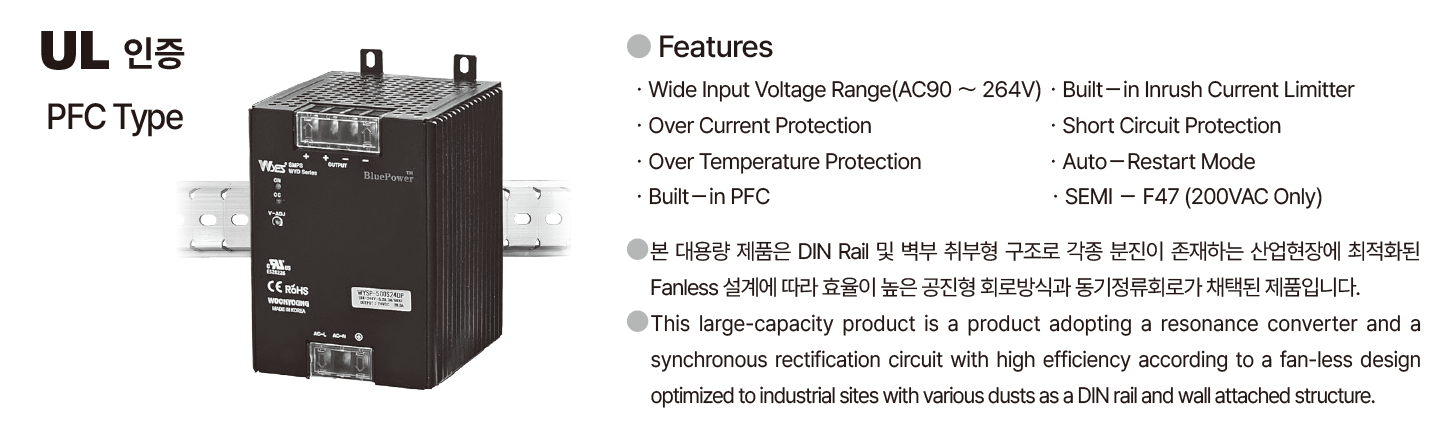

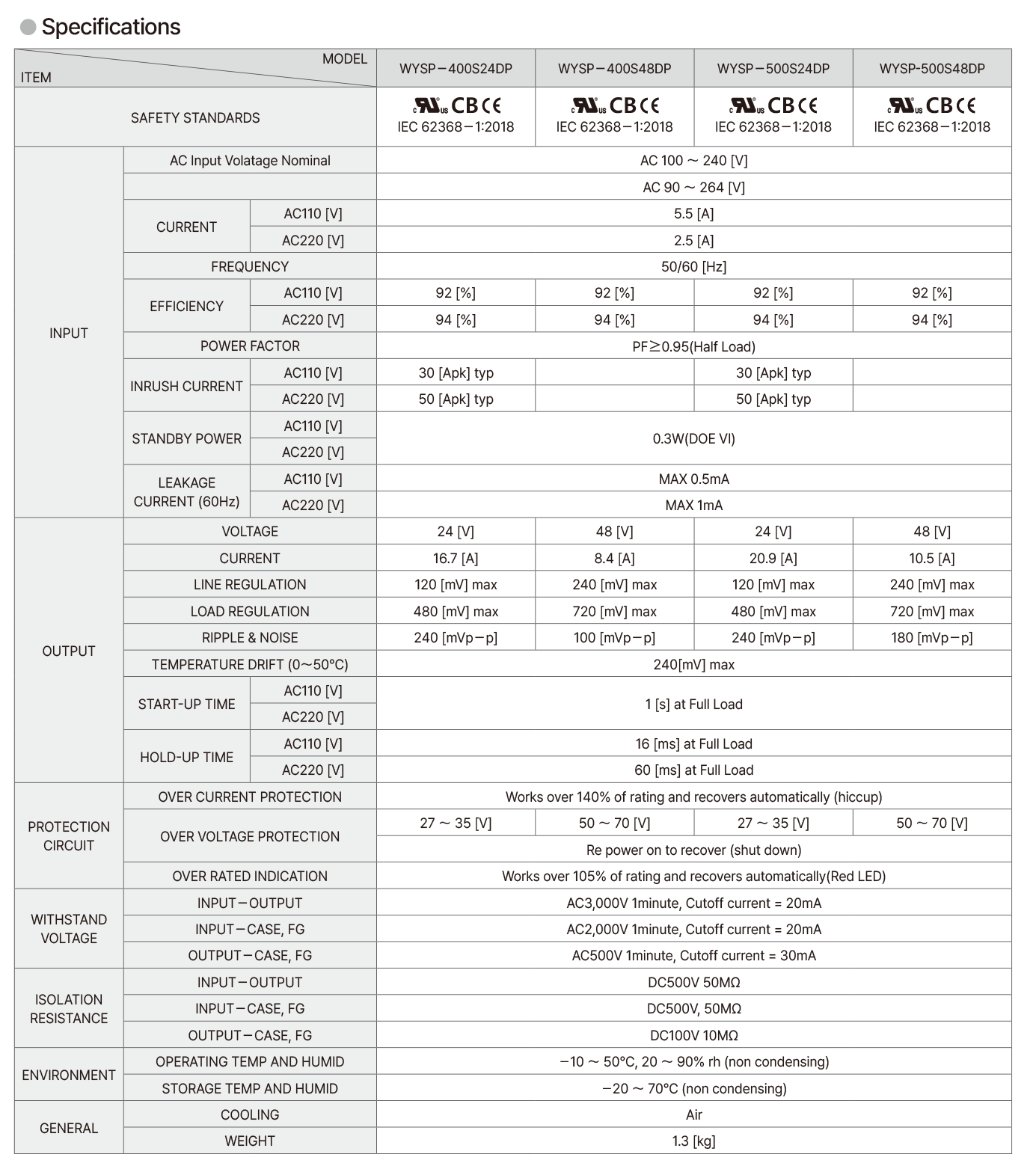

Specifications and Features

This large-capacity product is a product adopting a resonance converter and a synchronous rectification circuit with high efficiency according to a fan-less design optimized to industrial sites with various dusts as a DIN rail and wall attached structure.

PFC Type
