홈으로>Product>Medium Voltage (CT)

Product

Medium Voltage (CT)
Bushing type (B.C.T)
확대

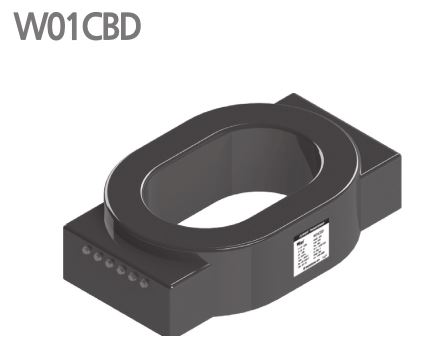

Model No W01CBD
TYPE Bushing type(B.C.T)
Certification
Rating 5A or 1A
Input 200~2000A
Output
Capacity 25kA
Support services

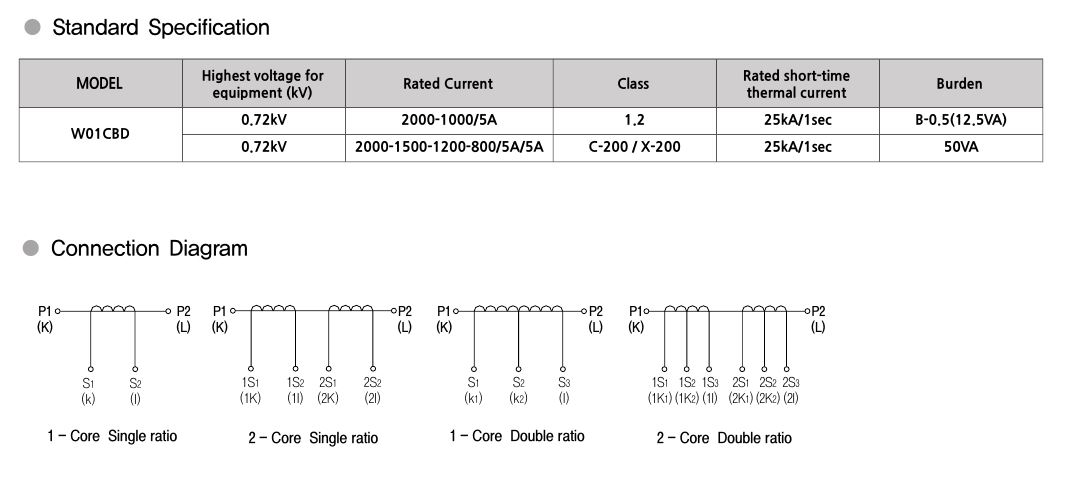

Specifications and Features

  ㆍ규격(Standard) : IEC - IEEE
  ㆍ설계 및 적용(Design and Application)
   - 계기 및 보호용(Designed for measuring and protection)
  ㆍ사용조건(Service condition) : 옥내(Valid for indoor service)
  ㆍFREQUENCY : 50/60Hz
  ㆍINSULATION CLASS : 0.72kV
  ㆍINSULATION : Epoxy Mold
